REMOTE CONTROL WITH AUDIO IN
12
LM-8000

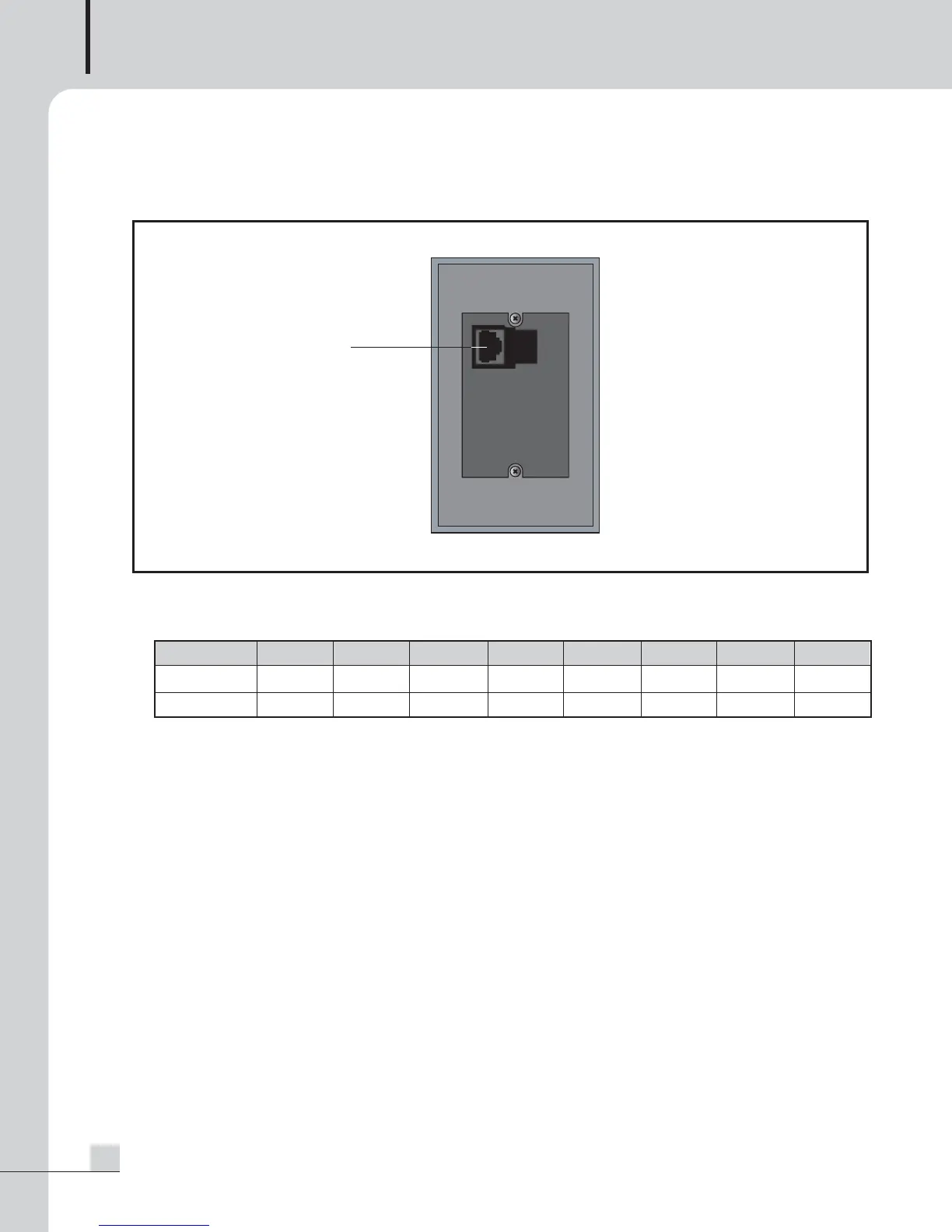

LM-8000 Rear Panel
LM-8000 Rear Panel
1. MODULAR JACK
* Connection with PX-8000 is same as RM-8000.
1
PIN Number 12 3 4567 8
Functions TX- TX+ RX- RX+ GND VCC AUDIO+ AUDIO-
Color BLU BLU/WHT GRN GRN/WHT ORG ORG/WHT BRN BRN/WHT
