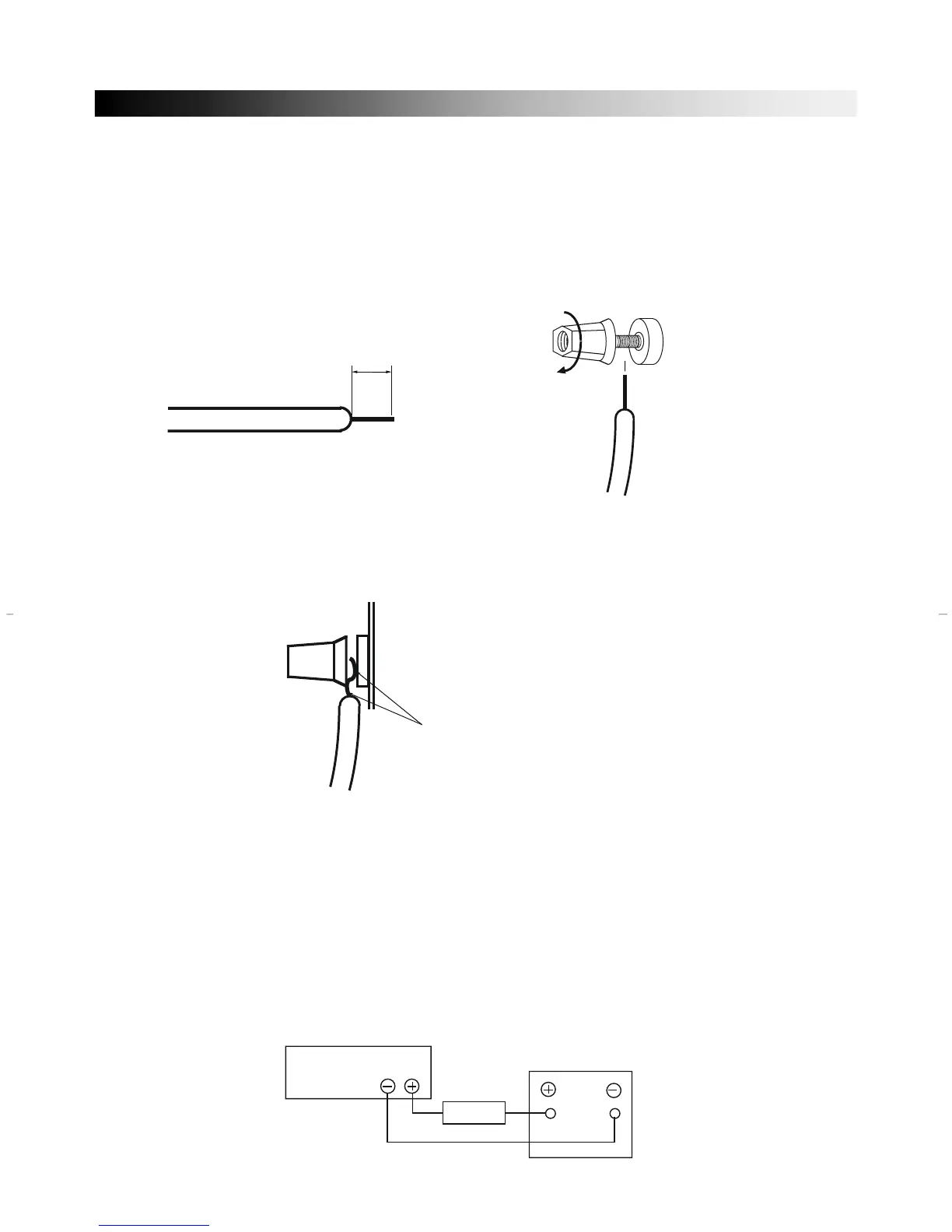

CAUTION FOR SPEAKER CONNECTION
1. Turn off the POWER switch.
2. After removing approx. 10 mm of insulation from the ends of the speaker cables, pass the bare
ends of the speaker wires through the holes in the corresponding speaker terminals and tighten
the terminals to securely clamp the wires.
Refer to page 4 for speaker porality.
At this time make sure that the bare ends of the speaker cables do not extend from the terminals
in such a way that they touch the chassis.
• SPEAKER FUSE
The output capacity of your amplifier is very high: 500W+500W (4Ω) in stereo and 1000W (8Ω) in
monaural on the M-1000: 350W+350W (4Ω) in stereo and 700W (8Ω) in monaural on the M-700:
250W+250W (4Ω) in stereo and 500W (8Ω) in monaural on the M-500. Be sure to use a speaker
system that has sufficient input capacity.
If the input capacity of your speaker system is lower than the rated output of the power amplifier,
you can protect your speakers by connecting a fuse serially between the speaker and amplifier as
shown below.
