PUBLIC ADDRESS AMPLIFIER
4
MA-206/212
Front Panel
Front Panel

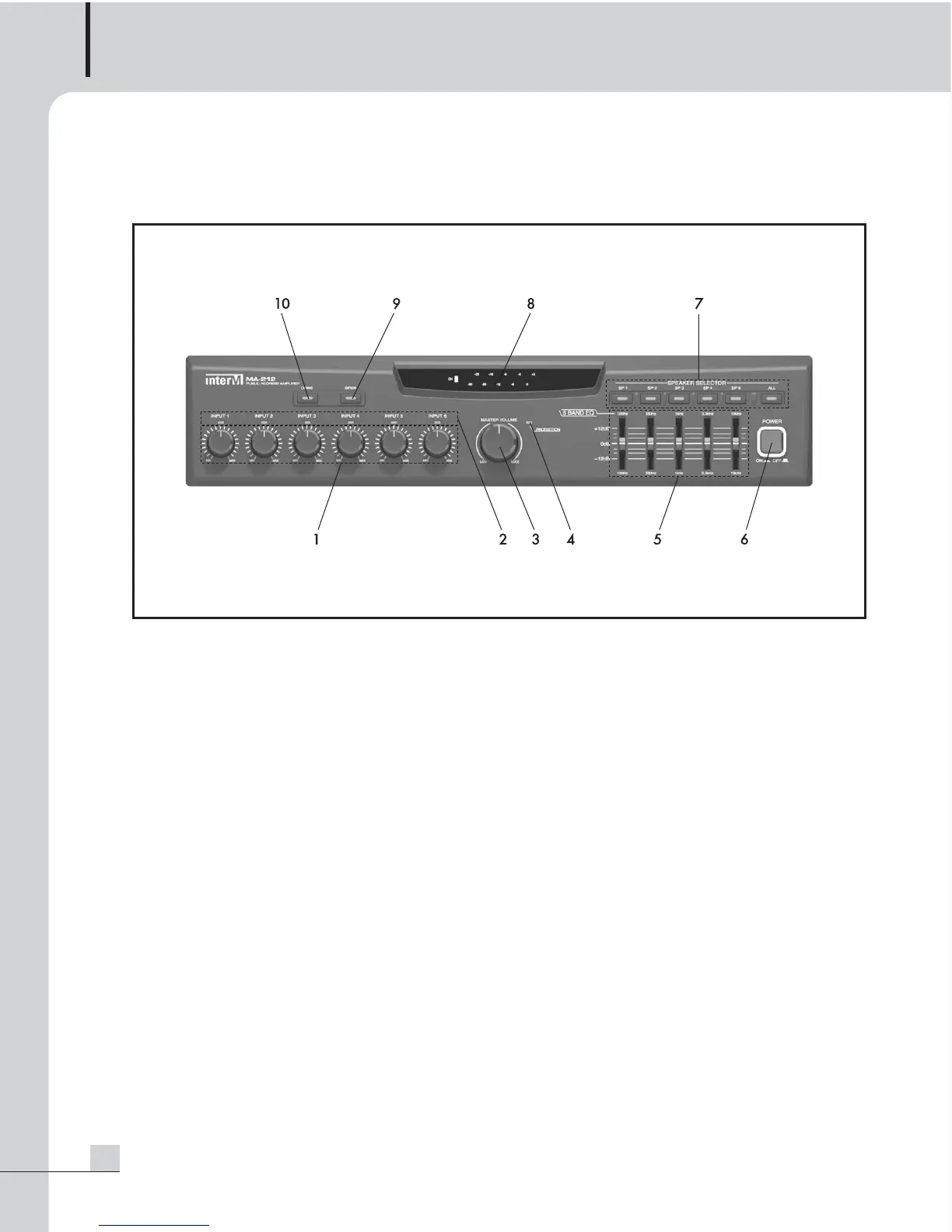

1. INPUT 1~6 VOLUME
These knobs provide continuous control of the volume of INPUT 1~6.
2. INPUT SIGNAL LED
The SIGNAL LED is lighting by input signal of each channel.
3. MASTER VOLUME
This knob provides continuous control of the overall volume of amplifier's output signal.
4. PROTECTION INDICATOR
This LED indicates the state of the amplifier's protection circuitry and MUTE function.
When the protection LED is on (illuminated), the protection circuitry is active, indicating that the unit is not
operating normally.
5. GRAPHIC EQUALIZER
Each slider controls the cut (decreased gain) or boost (increased gain) for its associated frequency band.
The middle position indicates flat response (no cut or boost).
Moving the slider upwards increases that frequency's gain, while moving it down decreases the level of that
frequency.
6. POWER SWITCH (PUSH TYPE)
Pressing the power switch turns the unit on. Pressing it again turns off.
※ This switch makes up that one pole be cut off when power is off.
