7
MX-1646
PROFESSIONAL AUDIO MIXER
5. BUS ASSIGNMENT SWITCHES
Connects the RETURN signal to MONITOR or MIX, G1/2 or G3/4.
6. MIX L/R SWITCHES
Groups can be routed to the MIX L and R output.
7. GROUP OUTPUT FADER
A professional 60mm fader gives you smooth, high resolution control over the group level.
8. MIX OUTPUT FADER
A 60mm stereo fader gives you smooth, high resolution control over the MIX level.
9. MONITOR LEVEL
Controls monitor output level.
10. PHONES LEVEL
Gives independent control over headphone volume.
11. HEADPHONE JACK SOCKET
TRS jack socket for headphone plug. Tip is left, and ring is for right signal. You can use the headphones over
35Ω impedance.
NOTE: Use only stereo phones!
When a mono connector is plugged into the stereo connector, it connects boths sides of the headphone
amplifier to a signal load.

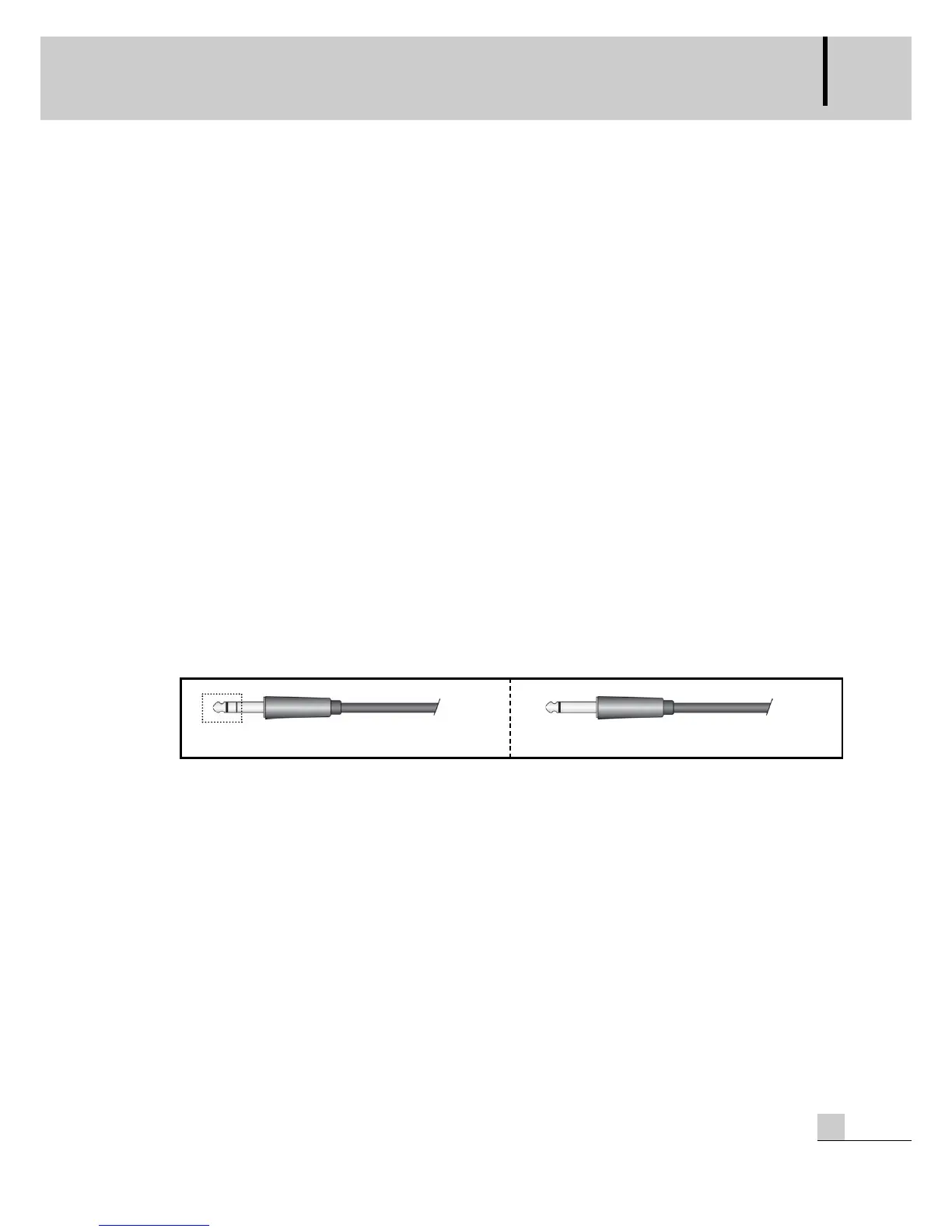

(1/4”Phone 3 Section Connector) (1/4”Phone 2 Section Connector)
(O)
(X)
