MX-1646
PROFESSIONAL AUDIO MIXER
Front Panel
Front Panel

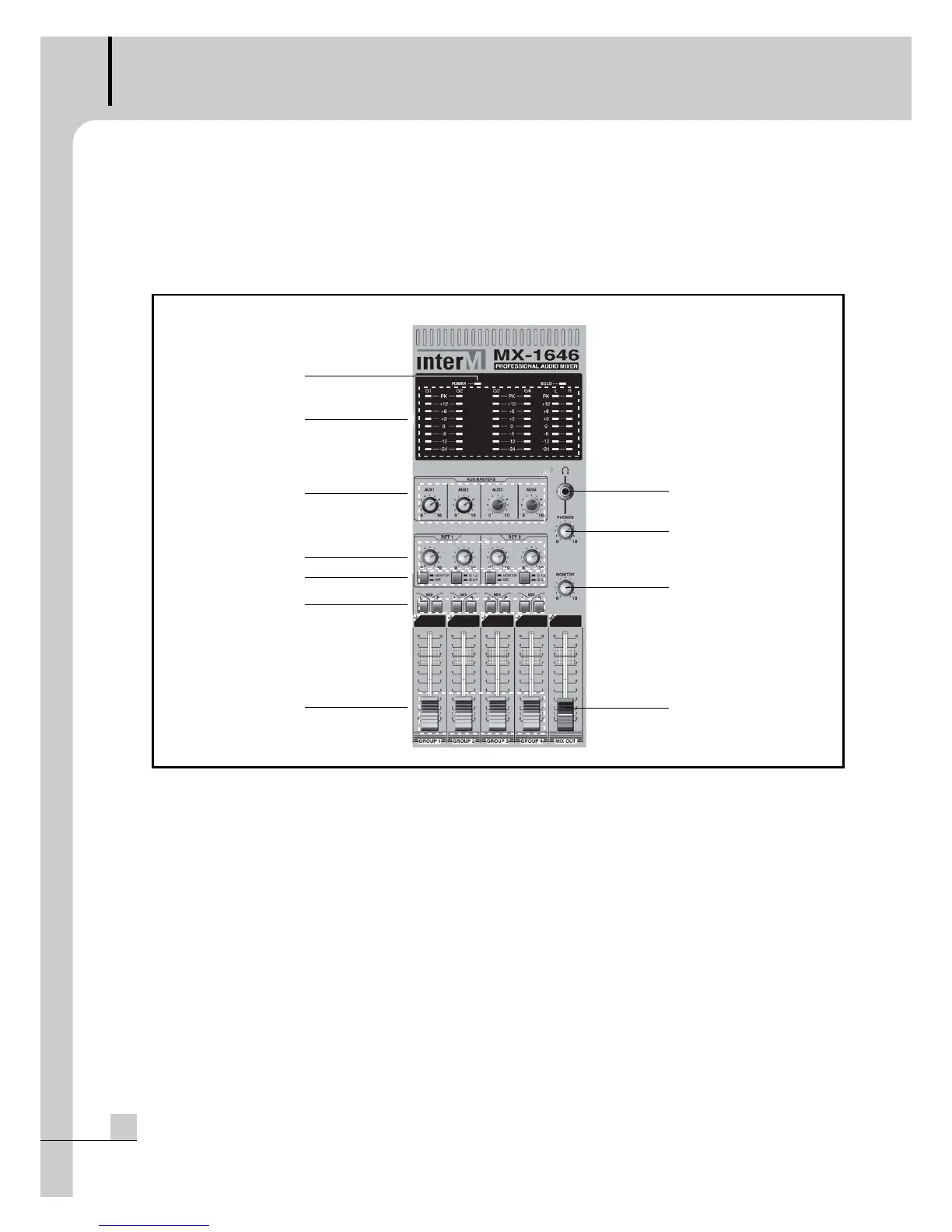

Master Section
1. POWER INDICATOR
The POWER INDICATOR LED lights when the power is ON.
2. OUTPUT LEVEL METER
8-segment peak response meter shows the level of GROUP output and MIX/SOLO output. LED METER’s “0” is
0dB.
3. AUX MASTERS
Auxiliary signal sent from each channels is controlled its output level by this potentiometer.
4. RETURN
Two stereo return inputs are available for the connection of stereo devices, such as reverb processors, which
do not need extensive processing, or access to the full range of auxiliaries.
2
11
10
9
8
3
4
5
6
7
1
To Next Page
