MX-1646
PROFESSIONAL AUDIO MIXER
Front Panel
Front Panel

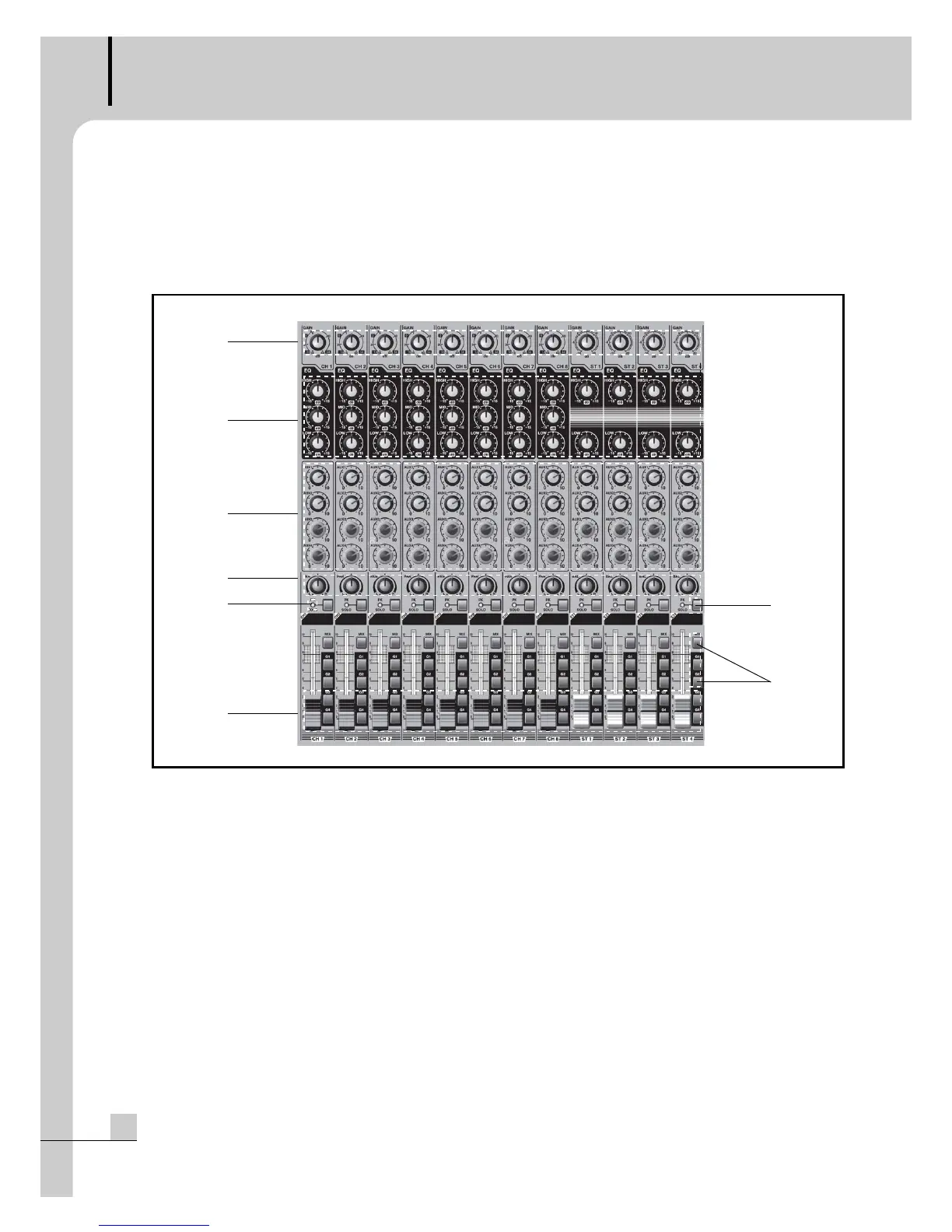

Input Channel
1. GAIN
The input signal’s gain is continuously variable from +16dB to +60dB(STEREO CH : -10dB~+20dB). The
actual value of the gain required will depend upon the source and should ideally be set such that peaks in
level on the input should not cause the input amplifier to overload.
You need to watch level indicator placed near FADER, flashing “PEAK” lamp is too high.
2. EQUALIZER
The equalizer section provided on each input channel consists of HIGH, MID, and LOW controls at the
following frequencies with the maximum range of ±15dB.
(Mono input ch : 3band(HIGH/MID/LOW), Stereo input ch : 2band(HIGH/LOW))
1) HIGH : 10kHz, ±15dB Shelf type.
2) MID : 1.2kHz, ±15dB peaking type.
3) LOW : 100Hz, ±15dB Shelf type.
1
2
3
4
5
7
6
8
