PROFESSIONAL AUDIO MIXER
11
MX-1646D
3. PEAK/SOLO LED, SOLO SWITCH
■ PEAK/SOLO LED: It is an LED to display the PEAK and SOLO status of the recording signal.
■ SOLO SWITCH: It is a switch to mix the recording signal with the SOLO bus. You can check the recording
signal through the headphone, monitor output, and level meter.
4. GROUP OUTPUT FADER
It is a volume to adjust the group output level.
■ Adjustment Range: -∞ ~ +10dB, Rated Output: 0dB
5. HEADPHONE OUTPUT
It is a terminal to connect headphones for monitoring (Standard 1/4 inch TRS Phone Jack).
※ Caution: Make sure to use stereo-type connector. Using a mono-type connector may cause a short circuit
and damage the headphone output circuit.
6. HEADPHONE OUTPUT VOLUME
It is a volume to adjust the headphone output level.
■ Adjustment Range: 0 ~ 10
7. MONITOR OUTPUT VOLUME
It is a volume to adjust the monitor output level.
■ Adjustment Range: 0 ~ 10
8. MIX L/R SWITCH
It is a switch to send the GROUP output signal to the L or R of the MIX bus.
9. MIX OUTPUT FADER
It is a volume to adjust the MIX output level.
■ Adjustment Range: -∞ ~ +10dB, Rated Output: 0dB

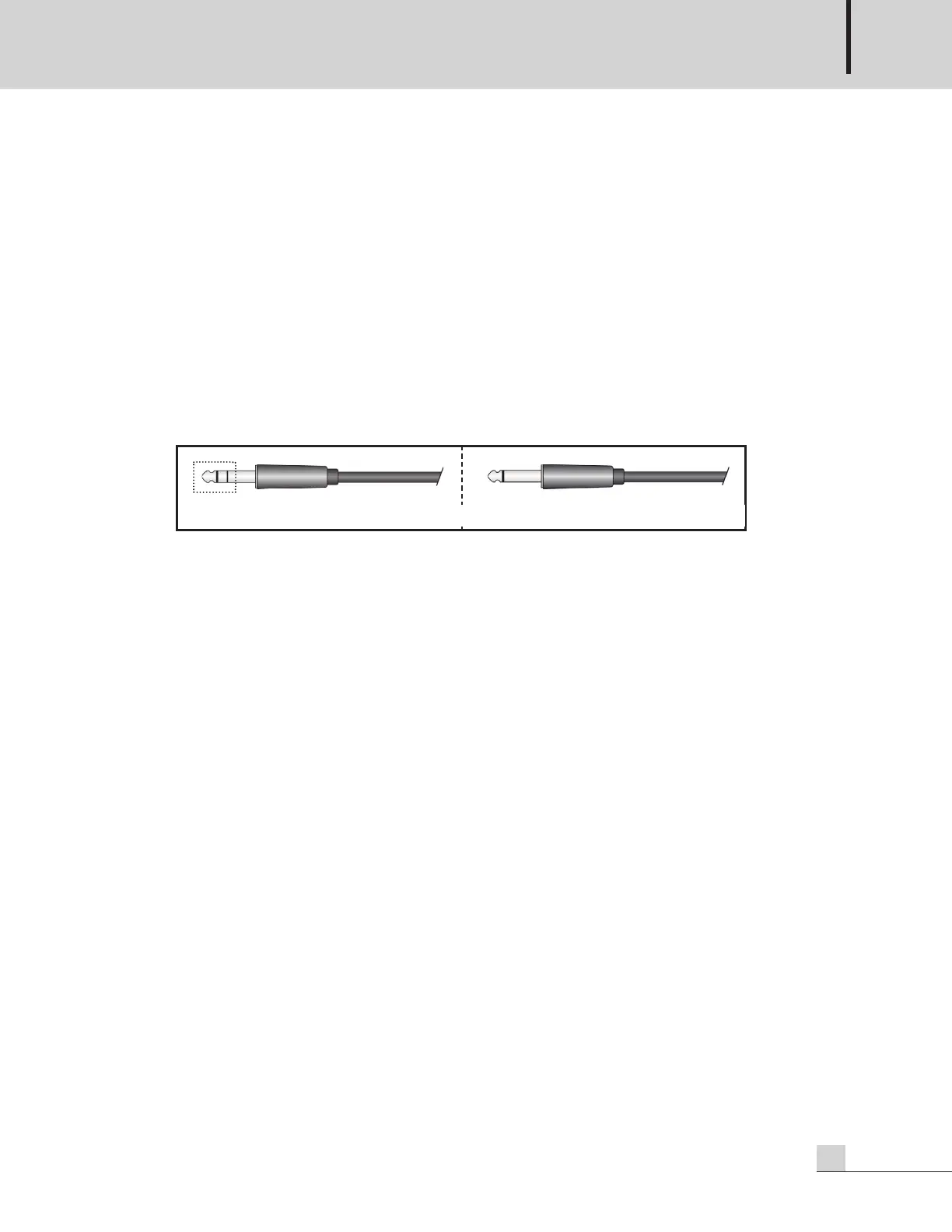

( O ) (1/4˝ TRS Phone Connector) ( X ) (1/4” TS Phone Connector)
To Next Page
