Inter-m MX-1646D User Manual

PROFESSIONAL AUDIO MIXER
4
MX-1646D

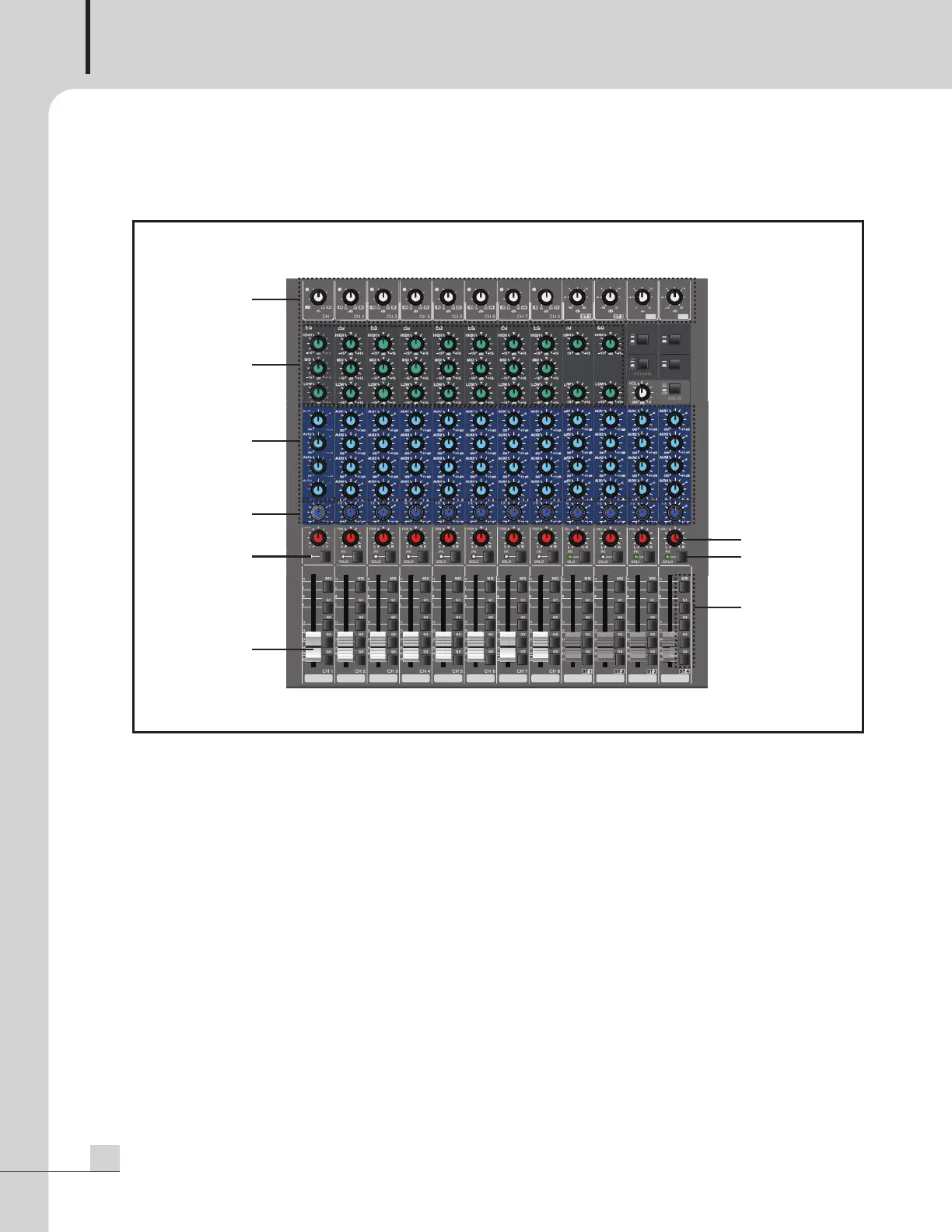

Front Panel
Front Panel
1. INPUT GAIN CONTROL
It adjusts the gain of the input signal.
■ MONO channel (MIC): +16dB ~ +60dB
■ MONO channel (LINE): -10dB ~ +34dB
■ STEREO channel (LINE): -10dB ~ +20dB
Adjust the gain according to the input signal of each channel to get the best sound quality. For example,
adjust all the input and output fader volumes to the 0 dB position and then adjust the input gain properly,
and adjust the EQ as necessary. It is recommended that the gain and channel fader volumes of unused
channels be kept to the minimum position.
2. EQ (EQUALIZER)
You can adjust the tone of the input signal.
■ MONO channel: 3 bands (High / Mid / Low) fixed EQ
■ STEREO 1/2 channel: 2 bands (High / Low) fixed EQ
The center frequency, range, and type of each equalizer are shown below.
1) High EQ (HIGH): 10kHz, ±15dB shelving type
2) Mid EQ (MID): 1.2kHz, ±15dB peaking type
3) Low EQ (LOW): 100Hz, ±15dB shelving type
