PUBLIC ADDRESS AMPLIFIER
10
PAM-312/324/336/348
1

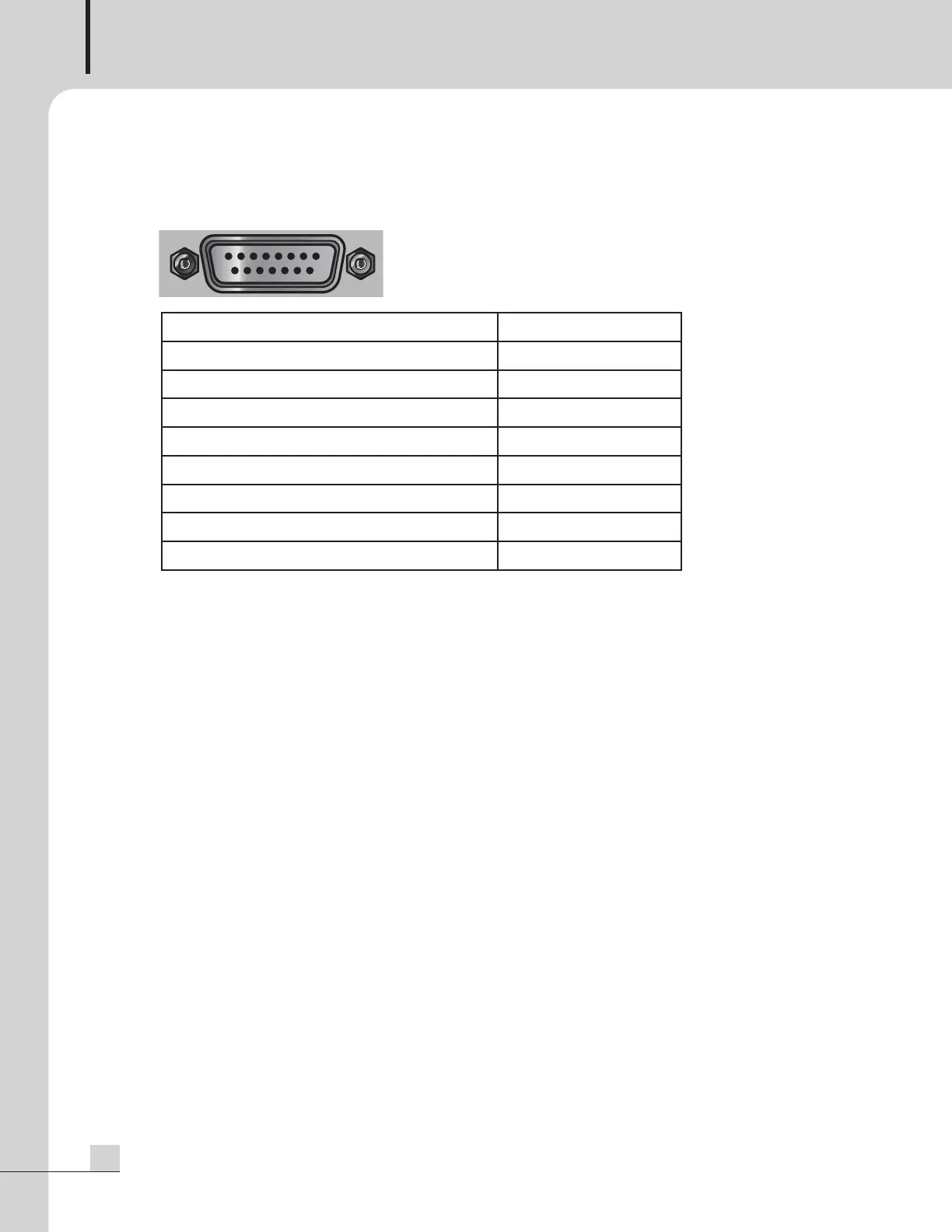

5. RM-05A CONNECTION TERMINAL
It is a terminal to connect with our RM-05A. The pins of the terminal are arrayed as follows.
※ If using the RM-05A, adjust the output volume with the INPUT 1 channel volume in the front panel.
※ Make sure to power off the device before connecting or disconnecting the RM-05A.
Pin 1: Remote amplifier input signal hot (+)Pin 10: DC +24V
Pin 2: Remote amplifier input signal cold (-) Pin 11: Remote chime
Pin 3: Signal groundPin 12: NC
Pin 4: Remote control 1 (SP1)Pin 13: NC
Pin 5: Remote control 2 (SP2)Pin 14: NC
Pin 6: Remote control 3 (SP3)Pin 15: NC
Pin 7: Remote control 4 (SP4)
Pin 8: Remote control 5 (SP5)
Pin 9: Remote control ground
