PUBLIC ADDRESS AMPLIFIER
6
PAM-312/324/336/348

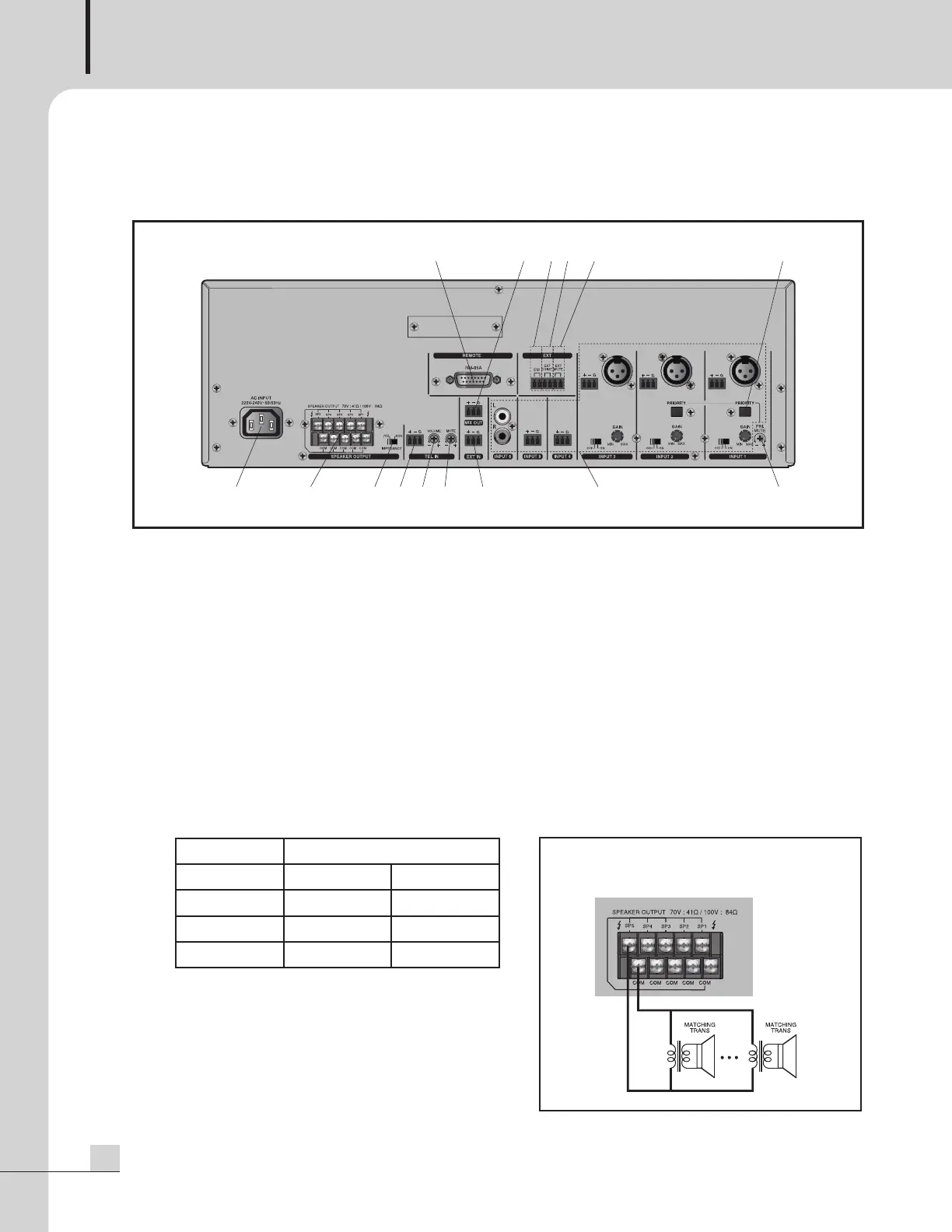

Rear Panel
Rear Panel
1. AC POWER INPUT TERMINAL
It supplies power to this device. The power source is AC 220 V, 60 Hz. Do not bend, pull, twist, heat, or cut
the power cord excessively. It may damage the cord and cause a fire or electric shock.
2. SPEAKER OUTPUT TERMINAL
It is a terminal to connect with the speaker(s).
※ After connecting with the speaker(s), carefully keep them from being overloaded when you use them.
※ You can control the SP 1~5 terminals by using the speaker selection switches in front or the CH 1, 2, 3,
4, and 5 buttons of the RM-05A.
※ Before connecting with the speaker(s), unplug the power cord. Then, connect the speaker(s) to use with
the speaker terminal(s) in the rear panel according to the following methods.
※ Caution: When installing the system, make sure that the total impedance of the speaker(s) does not fall
below the regulated impedance under all circumstances. Impedance and low output voltage are listed
below.
Model SP1~5/COM Terminal
PAM-312 100V/84 70V/41
PAM-324 100V/42 70V/21
PAM-336 100V/27.7 70V/13.6
PAM-348 100V/20.8 70V/10.2
How to Connect SP 1~5COM
High-Impedance Speaker(s)
11 10121315 14
1
2 3 4 5 6 7 8 9
To Next Page
