PC-9335 Dual Cassette Deck

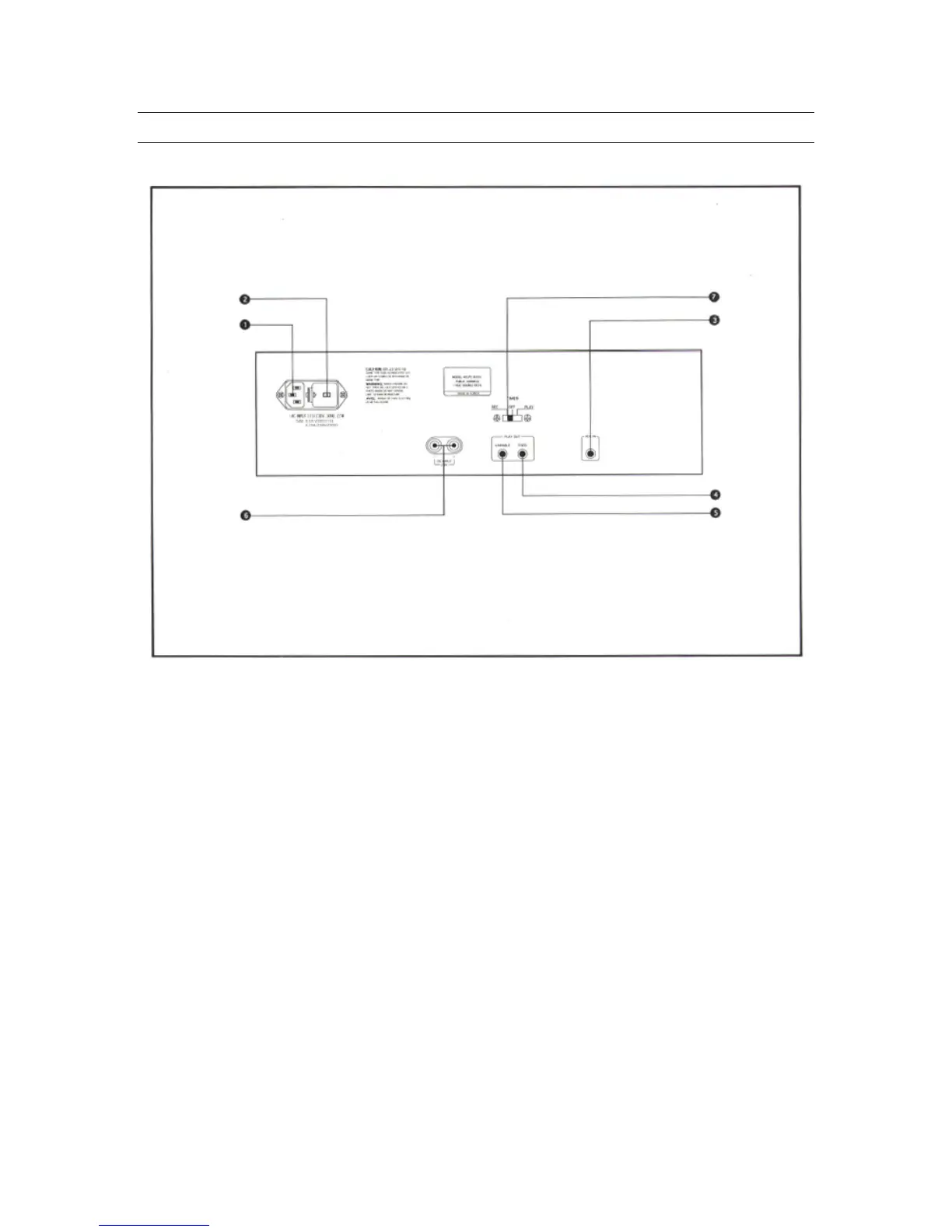

Rear Panel Controls
1. AC Connector
Connect this cable to AC Mains power supply.
2. Fuse Holders
The AC and DC protection fuses are located here. If the fuse blows, replace it
with the same size and rating:
230VAC: 0.25A/250V
115VAC: 0.5/250V
24VDC: 1A/250V
If the fuse continues to blow, refer servicing to qualified technical personnel.
3. Rec In/Mono
Connect a line level input here, for example the Tape Out source from your
amplifier or mixer.
4. Fixed Output/Mono
Mono line output for connection to your amplifier or mixer. The output level is not
affected by the front panel Play Level Control (Front Panel #2).
