PC-9335AD
STEREO DOUBLE CASSETTE DECK

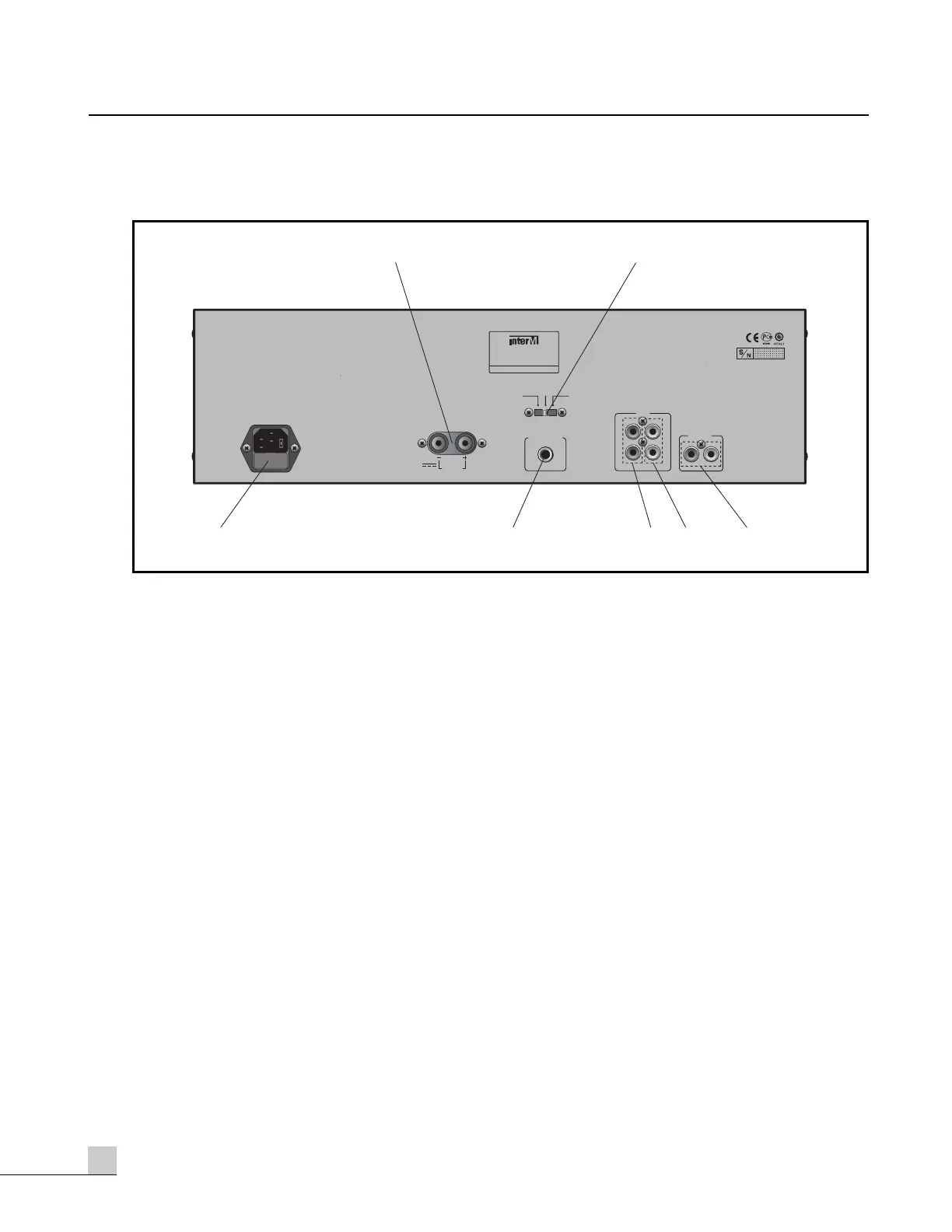

Rear Panel
Rear Panel
1. DC 24V
These terminals are for connecting 24V DC emergency power or DC mains. Observe proper polarity when
making connections.
2. RESERVE TIMER
Allows for unattended playback or recording on Deck B when power is restored to the unit. This slide switch is
used to select the desired mode of operation.
PLAY position: The unit will begin playing a cassette tape when AC mains power is applied to the AC input.
RECORD position:
The unit will begin recording onto a cassette tape when AC mains power is applied to the AC input.
OFF position: The unit will be in the stop mode when AC mains power is applied to the AC input.
3. AC MAINS POWER INPUT
Connect the supplied AC Mains power cord here.
4. MONO OUTPUT (FIXED)
1/4” jack connector for a mono line level output that is not affected by the Output Level control.
5. STEREO OUTPUT (VARIABLE)
Dual-RCA connectors for a stereo line level output. The output signal level (volume) is determined by the front
panel Output Level control.
6. LINE IN
Dual-RCA stereo connectors for line-level input signals for recording.
7. DIGI-LINK
Connector for use with other DIGI-LINK compatible equipment available in Korea.
