QUAD AMPLIFIER
12
QD-4240/4480/4960, QX-4960
Speaker Connection Procedures
Speaker Connection Procedures
Always switch the power off before connecting speakers.

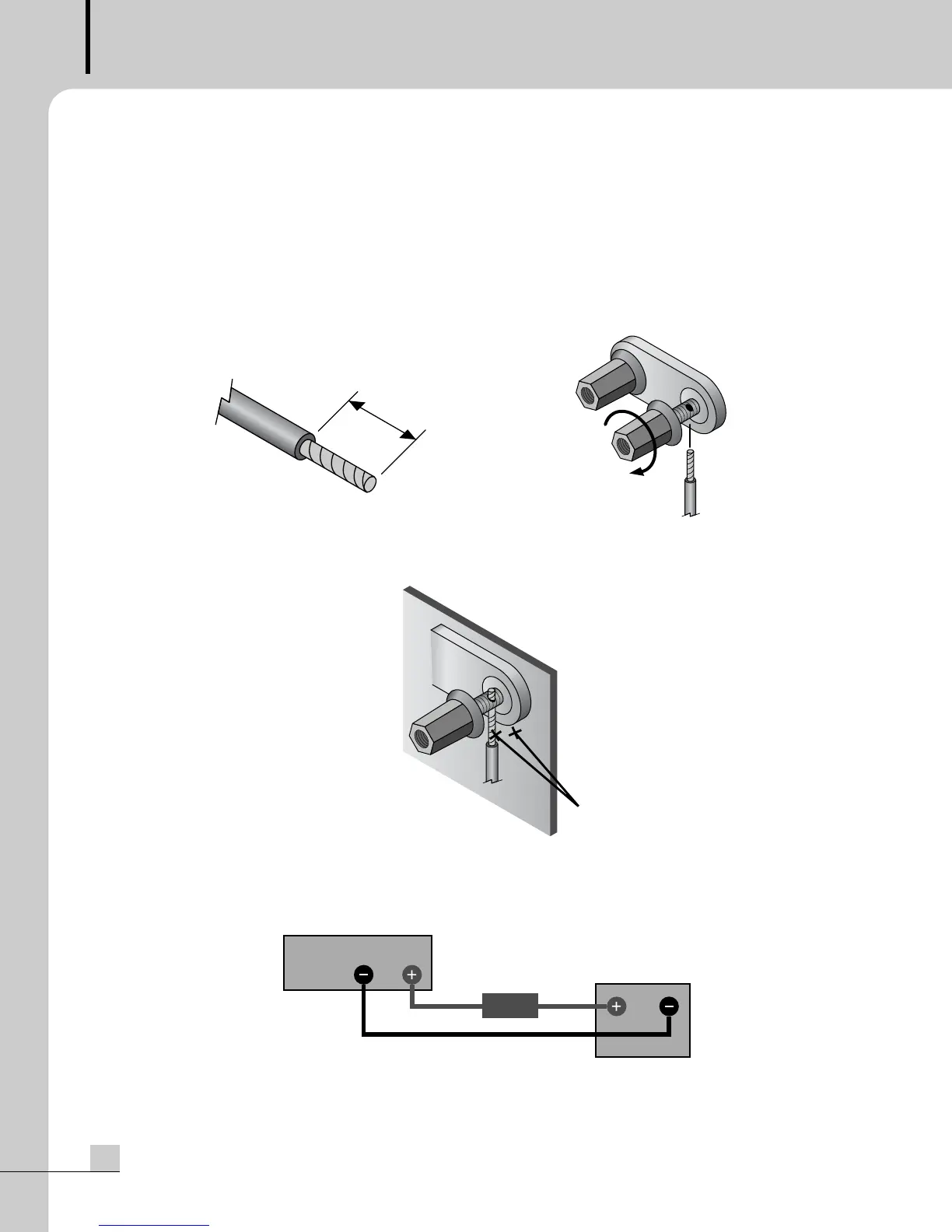

After removing approximately 10mm (1/4-inch) of insulation from the ends of the speaker cables, twist the
strands tightly and pass the bare ends through the holes in the terminals, tightening the terminals to secure the
wires.
Make certain the wires do not protrude from the terminals and touch the amplifier’s chassis, or an adjacent
terminal.
The QD-4960/QX-4960 is capable of very high output levels. Be certain to use a speaker system that can
accept high input levels. If the input capacity of your speaker system is less than the amplifier’s rated output, you
may protect your speakers by connecting a fuse between amplifier and speaker, as shown below:
To Next Page
