Inter-m V-3000 - Connections

PROFESSIONAL POWER AMPLIFIER
10
V-3000/4000
Connections
Inter-M products are wired according to professionally accepted wiring practices used throughout the world.

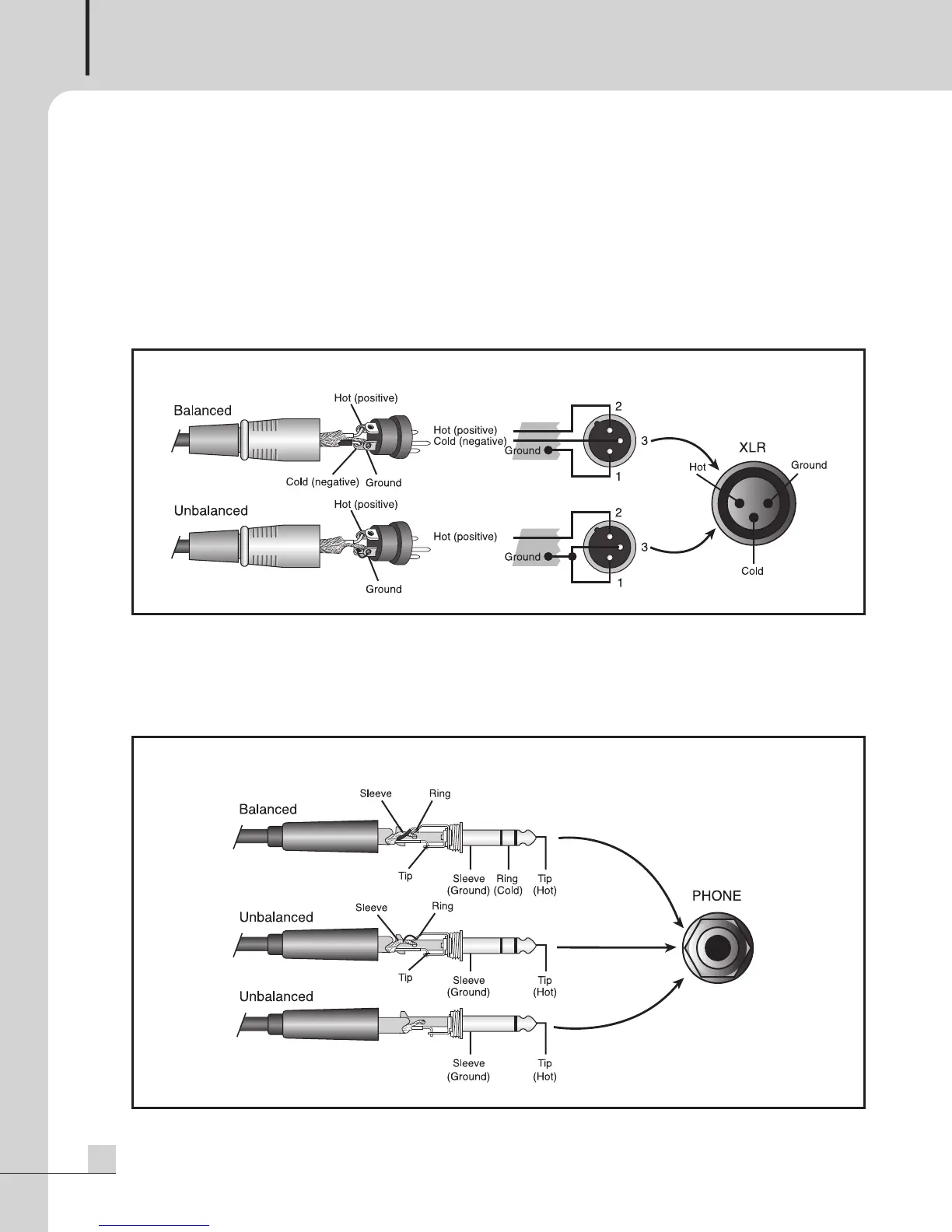

1. XLR INPUTS
Balanced XLR connectors are wired as described:
Pin #1 Shield
Pin #2 Positive
Pin #3 Negative
2. TRS INPUT
Balanced 1/4” TRS connectors are wired as described:
Tip is Positive
Ring is Negative
Sleeve is Shield
XLR MALE
PHONE JACK
