Inter-m V-3000 User Manual

PROFESSIONAL POWER AMPLIFIER
6
V-3000/4000

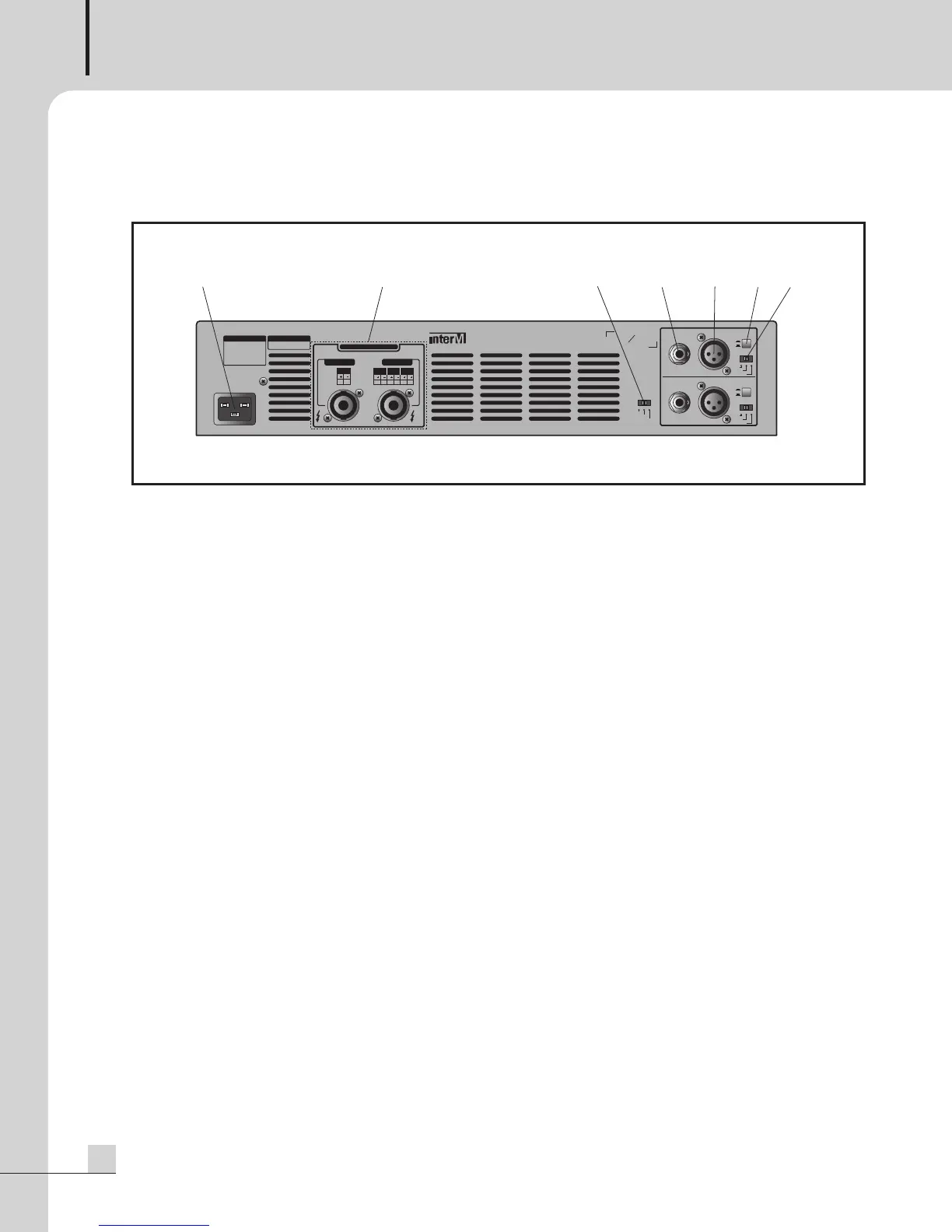

Rear Panel
Rear Panel
1. AC INPUT
Connect this product to an appropriate AC mains power source using the supplied universal AC power cord.
2. OUTPUT CONNECTORS
4 Pole speaker sockets are provided. Bridged mono operation requires a different method of connecting the
speaker cables than stereo operation. Be sure that the amplifier is in the correct mode before connecting the
speaker load. Please refer to the output connection drawings.
3. MODE SELECTOR SWITCH
Move this switch to select the STEREO, PARALLEL or BRIDGED MONO position as needed for the application.
The stereo mode is most common. Channel 1 input provides signal through the amplifier to the channel 1
output. The channel 2 input provides signal through the amplifier the channel 2 output.
The parallel mode uses the channel 1 input provides signal through the amplifier to both the channel 1 and
channel 2 outputs. No input will be supplied to channel 2 in the Parallel mode.
The bridge mono mode combines both channels to create one larger mono channel. Input signal applied to
channel 1 will provide signal through the amplifier to the positive terminals of channel 1 and channel 2. Do
not connect any signal to the channel 2 input or any loads to the negative outputs.
4. BALANCED TRS INPUT CONNECTORS
Each input channel is equipped with a TRS connector.
The signal at these connectors is parallel with the XLR input signal for linking the input signal to other amplifier.
5. BALANCED XLR INPUT CONNECTORS
Each input channel is equipped with a XLR connector.
You can use either balanced or unbalanced connectors, but use unbalanced only for a short distance
between equipment to avoid a noise problem.
Please refer to the input connection drawings.
STEREO
BRIDGED
PARALLEL
MODE
INPUT 1
INPUT 2
