Interflex Datensysteme GmbH 19/23
18.3 Spacer
The spacer is required:
§ for connecting a terminal via surface-mounted cables.
§ when using an interface expander board.

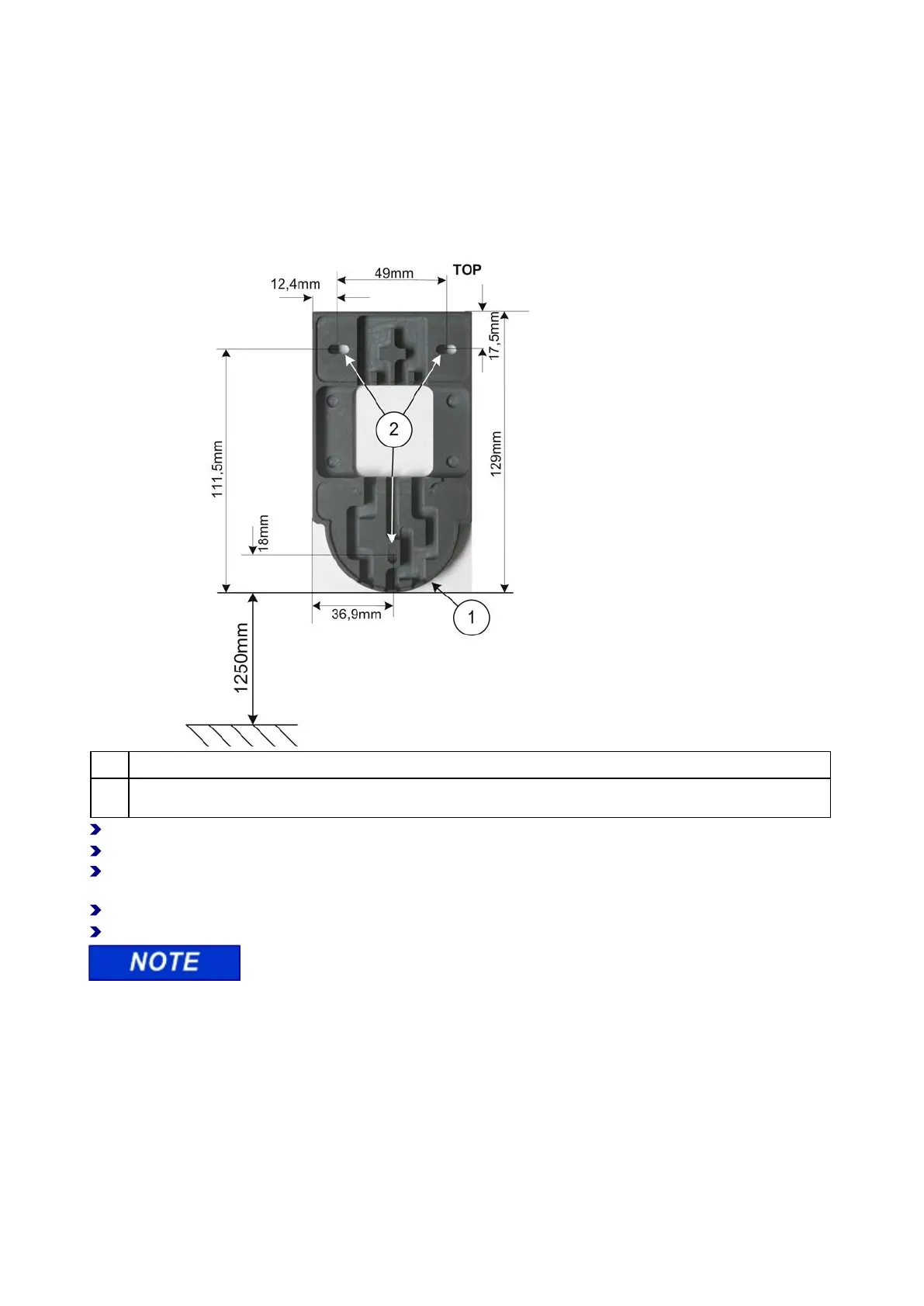

18.3.1 Mounting
1 IF-57xx Spacer
2 Bore holes
Break out the corresponding tabs on the bottom of the spacer.
Insert the wires through the spacer as shown.
Screw the spacer along with the metal back panel to the wall.
Recommended installation height: 1250 mm.
Fasten the PoE terminal board to the metal back panel of the IF-5735.
Connect the wires to the PoE terminal board of the IF-5735.
To keep the IF-5735 master terminal free from interference, we recommend
fastening the spacer so that
§ there is a distance of 30 cm to the next slave terminal or another system with RFID card readers
§ and a distance of 10 cm between the connection cable and the nearest power lines.
