12 Installation Guide

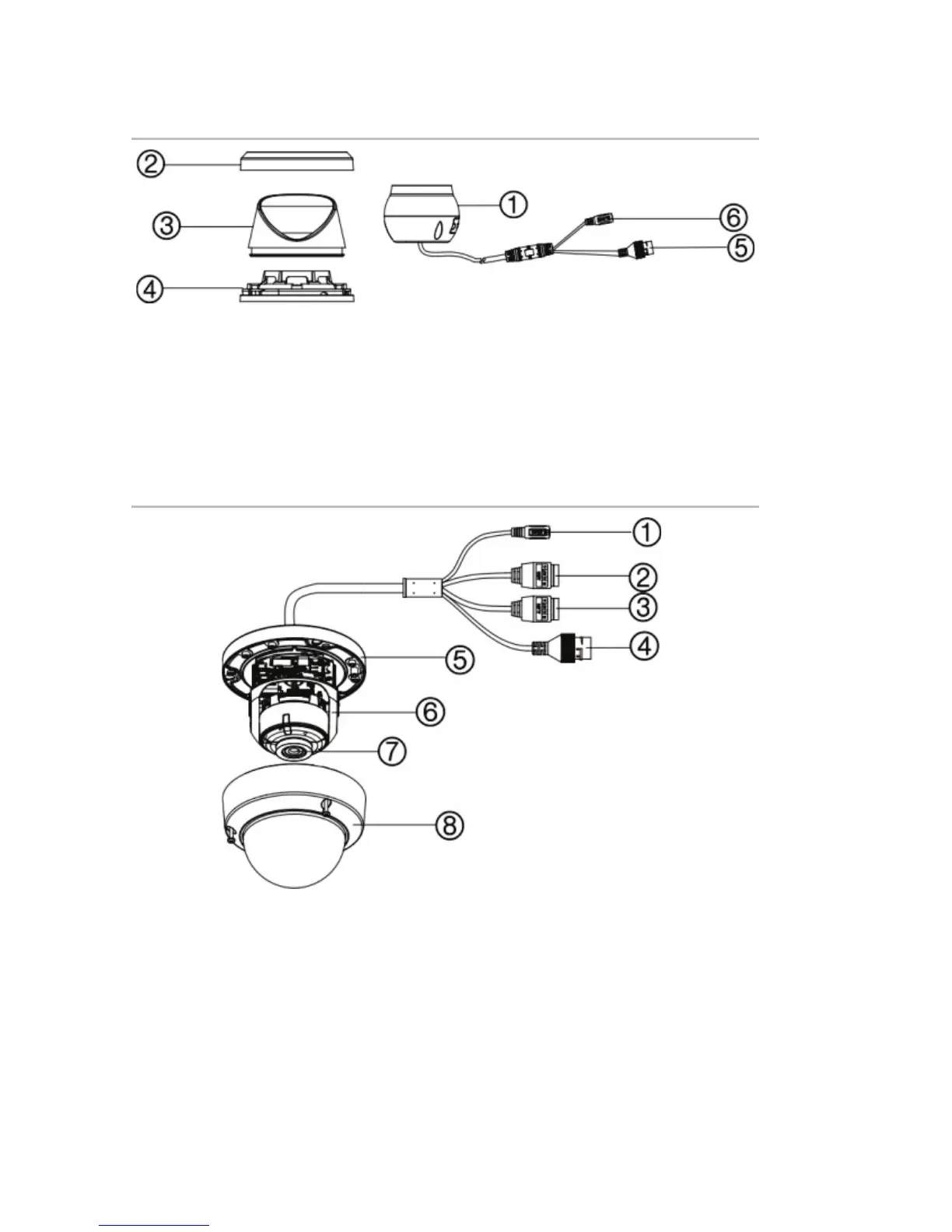

Figure 2: IP turret camera
1. Lens assembly
2. Trim ring
3. Housing
4. Base
5. 12 VDC power
6. Ethernet RJ45 PoE port
Figure 3: IP dome camera
1. 12 VDC power
2. Audio I/O
3. Alarm I/O
4. Ethernet RJ45 PoE port
5. Base
6. Dome liner
7. Lens
5. Housing cover
