Interlogix TVB-5501 - Camera Description

Installation Guide 11
Camera description

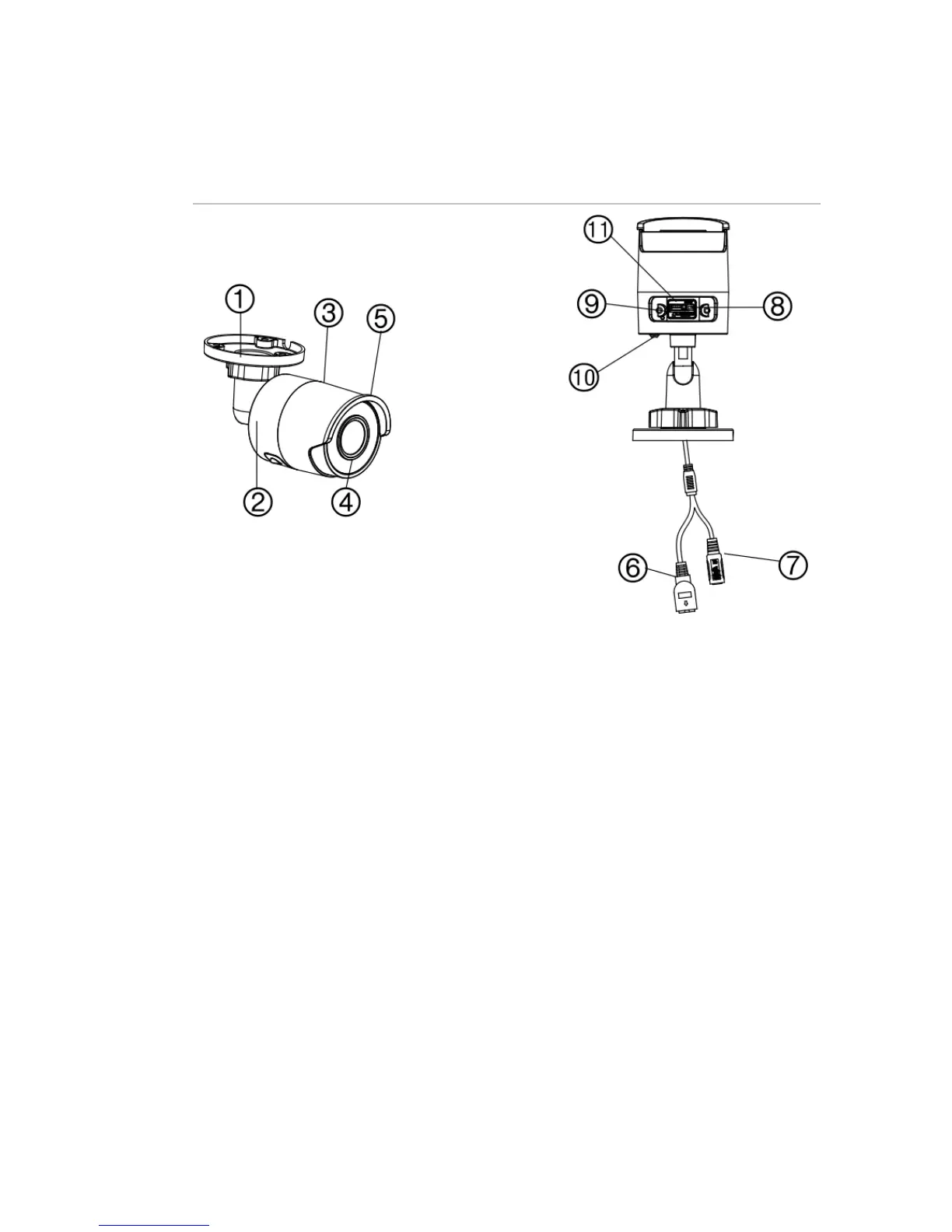

Figure 1: IP bullet camera
1. Adjustable bracket
2. Back housing
3. Front housing
4. Lens
5. Sunshield
6. Ethernet RJ45 PoE
port
7. 12 VDC power
8. Reset button
9. SD card slot
10. Grounding screw
11. Serial port (factory use)
Note: To reset the camera to default settings, press and hold
the RESET button and power on the camera. After the camera
has started up, hold the RESET button for an additional 20
seconds.
