18 Installation Guide
Mounting the dome camera
To mount the dome camera on a ceiling or wall:

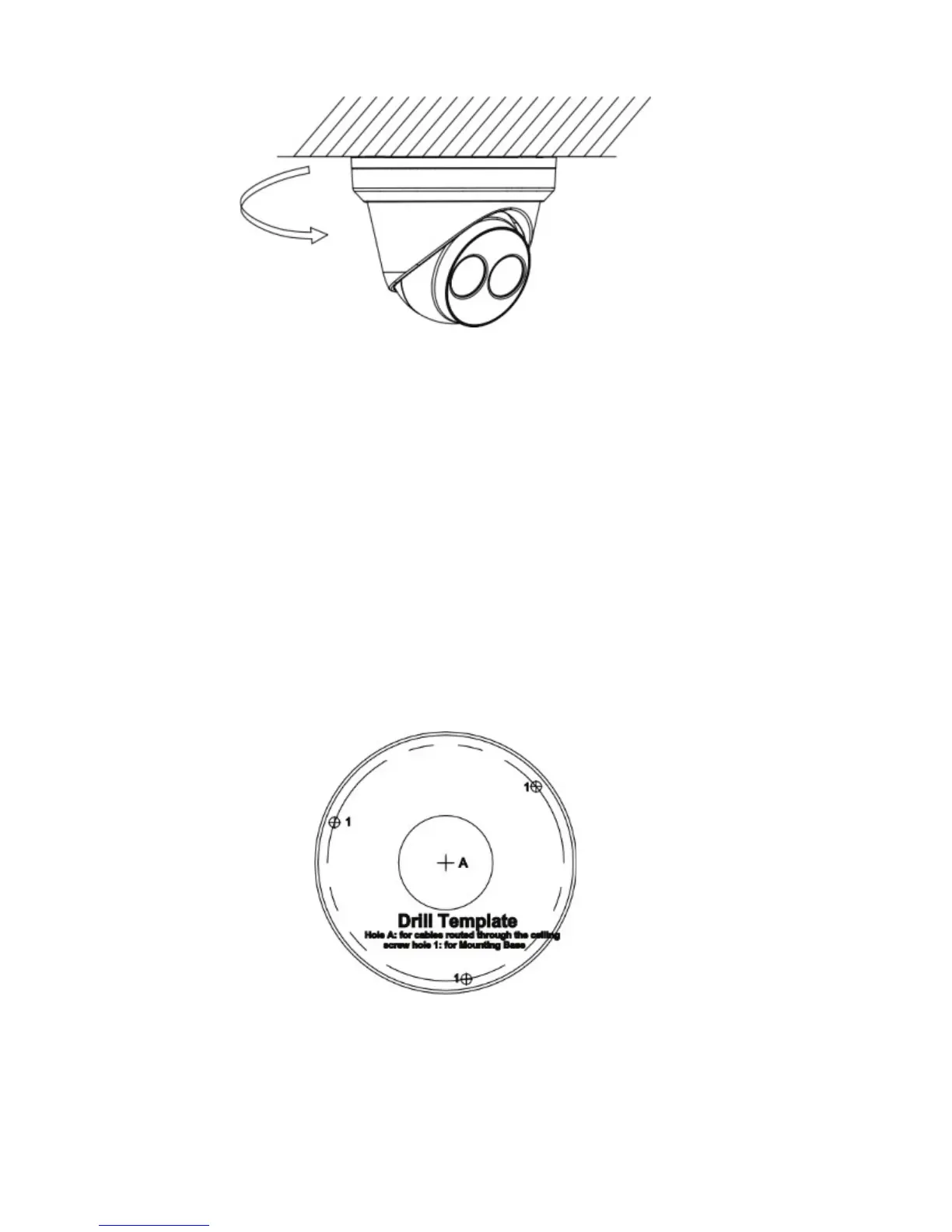

1. Place the drill template (supplied) on the surface where
the camera is to be mounted. Drill mounting holes in the
surface using the holes labeled number ‘1’ on the drill
template.
If you would like to route the cable harness through the
mounting surface, cut a cable access hole in the
mounting surface, referencing the letter “A” on the drill
template. Skip this step if you want to route the cables on
the surface.
2. Using the supplied Torx wrench, remove the dome
bubble assembly.
