Installation Guide 17

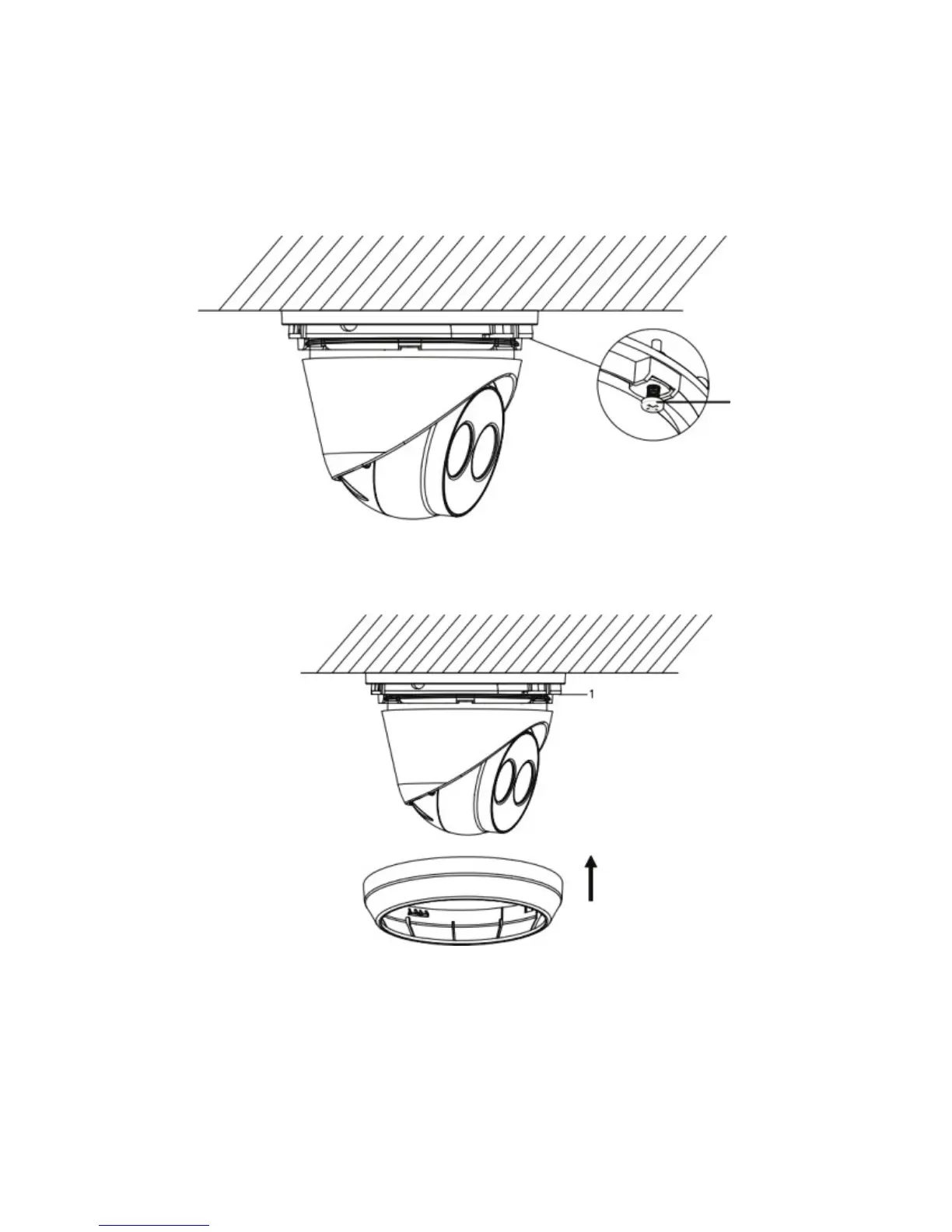

b) Rotate the lens assembly to adjust the pan angle.
Rotate the lens assembly to adjust the tilt angle.
c) Tighten the locking screw to secure the lens at the
desired surveillance angle.
Locking
screw
7. Attach the trim ring to the camera and rotate it clockwise
to secure it.
