16 Installation Guide

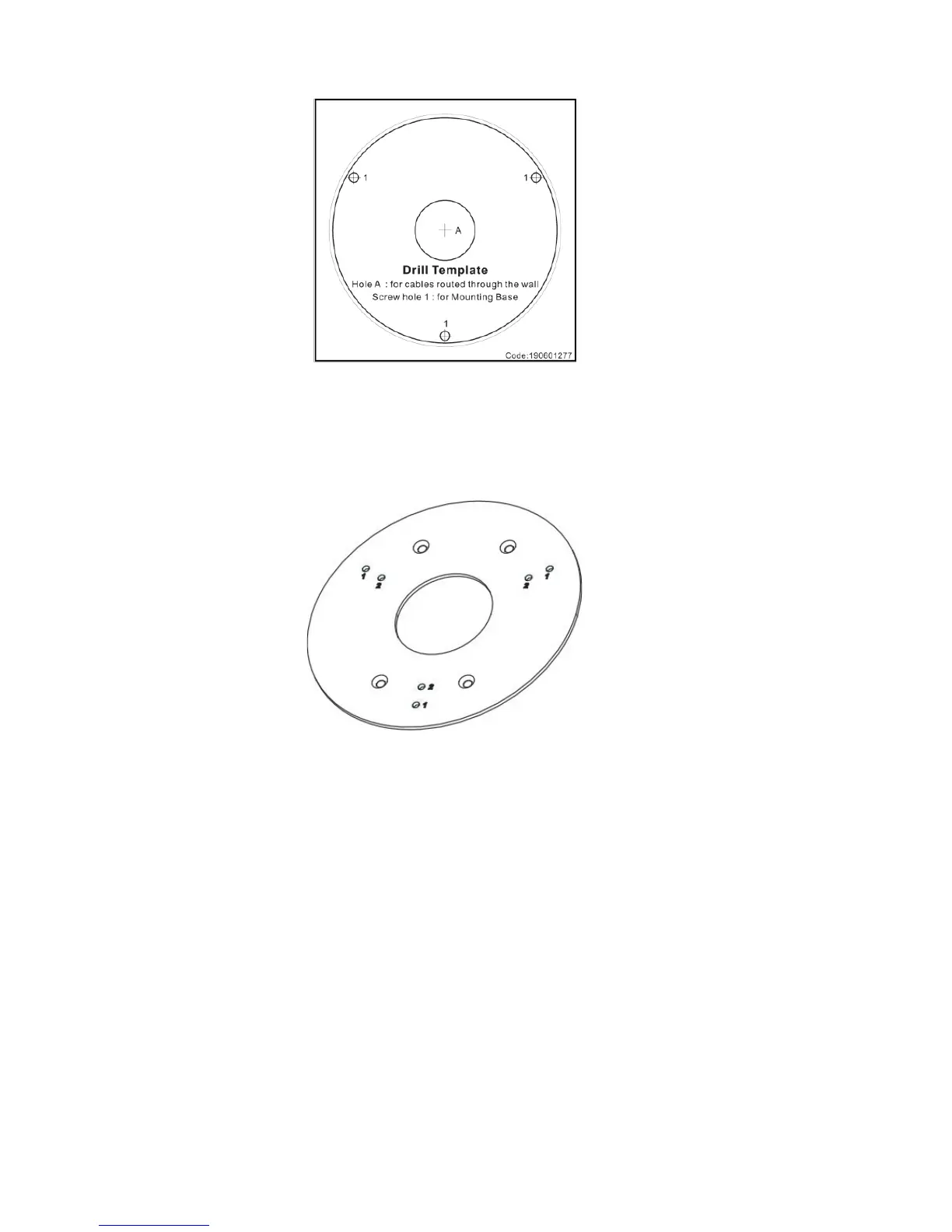

If installing the turret camera to a wall mount or other
accessory, an adapter plate is provided. Install the
adapter plate to the accessory with three PM4X8 screws,
referencing number “2”.
2. Rotate the trim ring counterclockwise to remove it from
the camera.
3. Route the cables directly out of the base of the camera.
4. Install the camera on the mounting surface using the
supplied hardware.
5. Connect the corresponding power and network cables.
6. Adjust the lens.
a) Loosen the locking screw using a Philips screw
driver.
