20 Installation Guide

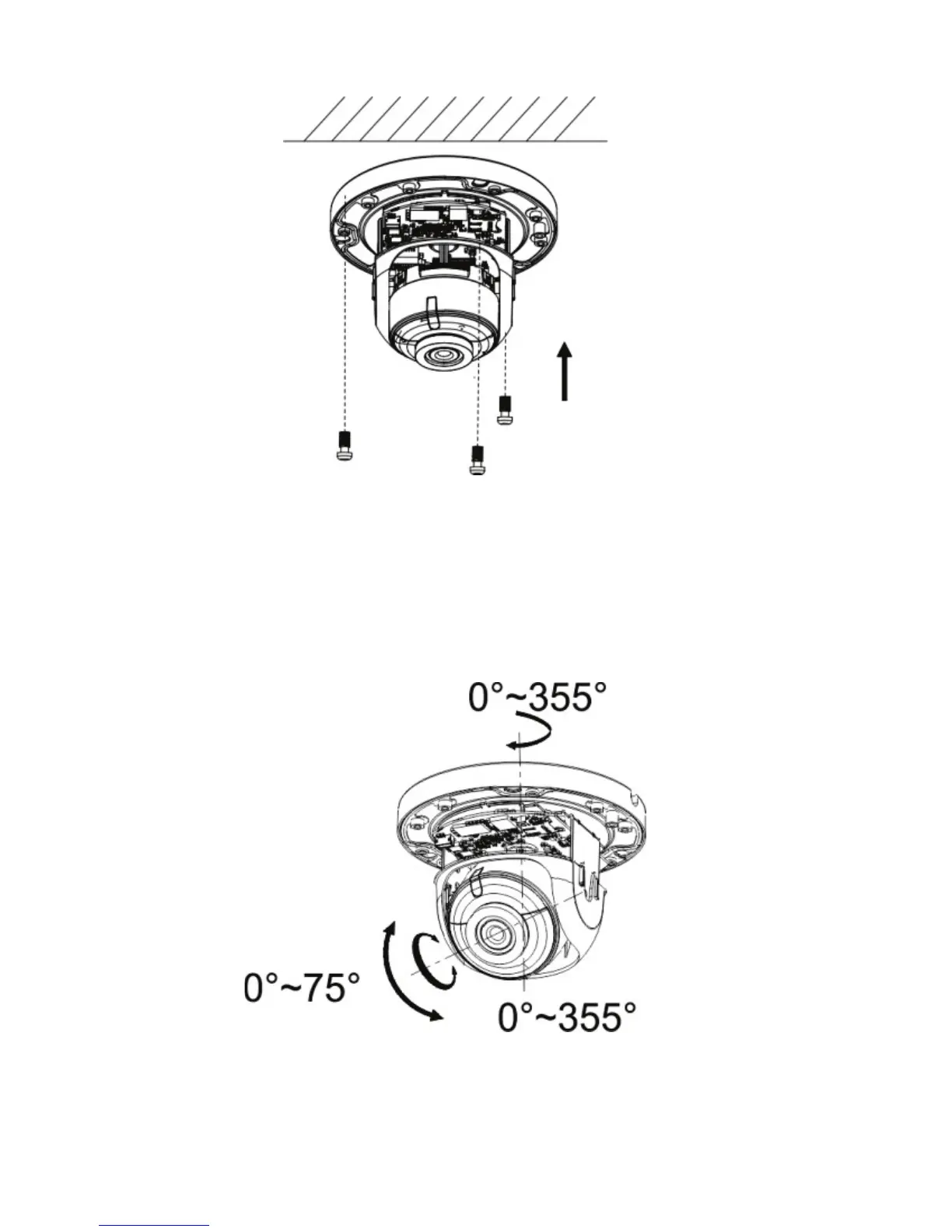

4. Loosen the tilt adjust screws (see image below) and
adjust the tilt position of the lens assembly within a range
of 75 degrees. Retighten the tilt adjust screws.
Rotate the dome liner to adjust the pan position within a
range of 355 degrees. Rotate the lens assembly (0 to
355°) to obtain the desired surveillance angle.
