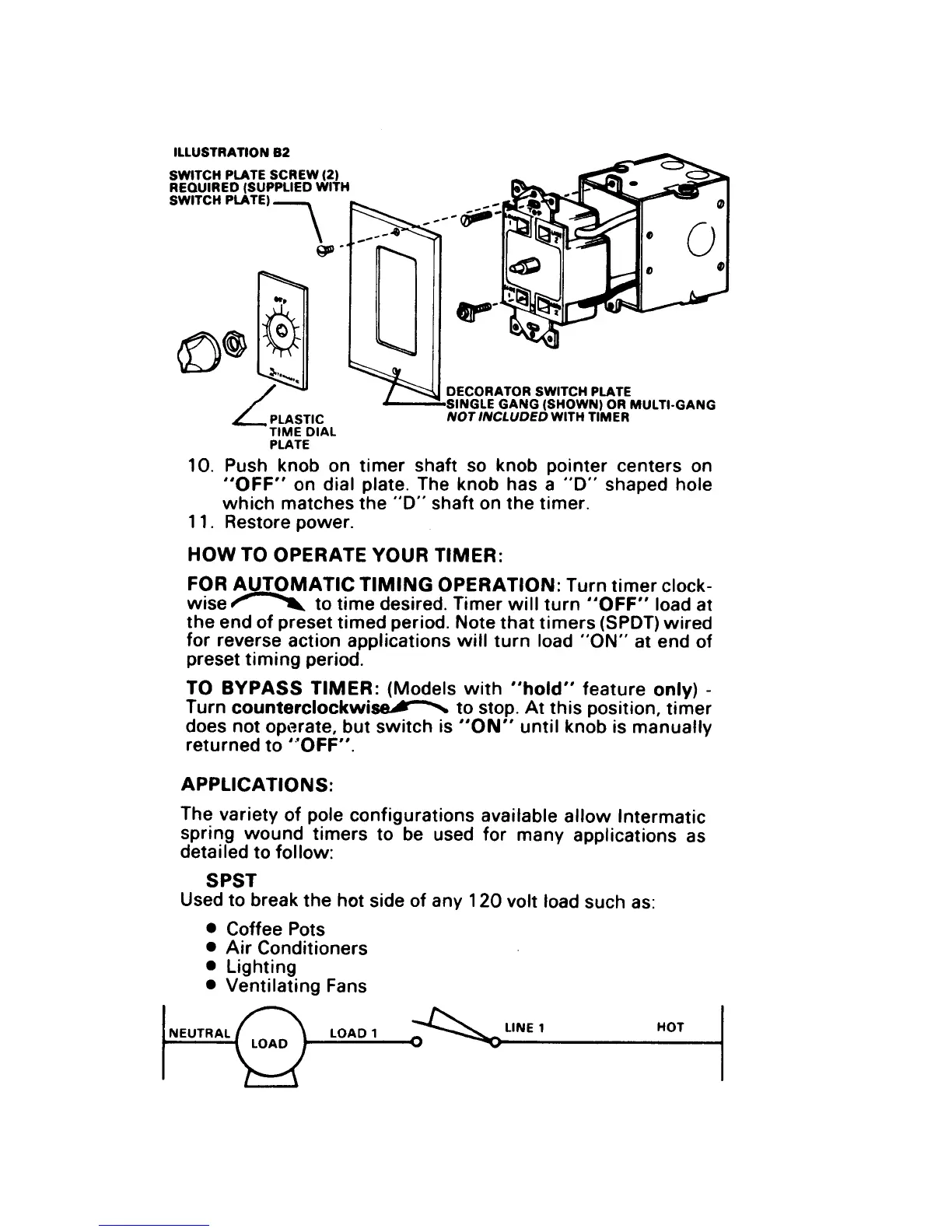

ILLUSTRATION
82
SWITCH PLATE
SCREW
(2)
REQUIRED (SUPPLIED WITH
SWITCH
PLATE)\
Qlll"
o@e
;).
.......
L.LA~TIC
TIME DIAL
PLATE
DECORATOR SWITCH
PLATE
---.SINGLE
GANG
(SHOWN)
OR
MULTI-GANG
NOT INCLUDED
WITH TIMER
10. Push knob on
timer
shaft so knob pointer centers on
"OFF"
on
dial
plate. The knob has a
"D"
shaped
hole
which
matches the
"D"
shaft on the timer.
11. Restore power.
HOW
TO OPERATE
YOUR
TIMER:
FOR
AUTOMATIC
TIMING
OPERATION:
Turn
timer
clock-
wise~
to
time
desired. Timer
will
turn
"OFF"
load
at
the
end of preset
timed
period. Note
that
timers
(SPOT)
wired
for reverse action applications
will
turn
load
"ON"
at end of
preset
timing
period.
TO
BYPASS
TIMER:
(Models
with
"hold"
feature
only)
-
Turn
counterclockwi~
to
stop.
At
this
position,
timer
does
not
op,~rate,
but
switch
is
"ON"
until
knob is
manually
returned
to
...
OFF".
APPLICATIONS:
The variety
of
pole configurations
available
allow
lntermatic
spring
wound
timers to be used for many applications as
detailed to follow:
SPST
Used to break
the
hot side of any 1
20
volt load such
as:
Coffee
Pots
Air
Conditioners
Lighting
Ventilating Fans
NEUTRAL
LOAD
1
LINE
1
HOT
