Intermatic FM/1 Series - FM;1 Series 24-Hour, 7-Day; Applications; Specifications

www.intermatic.com
Energy ControlsEnergy Controls
Mechanical
Timer Modules

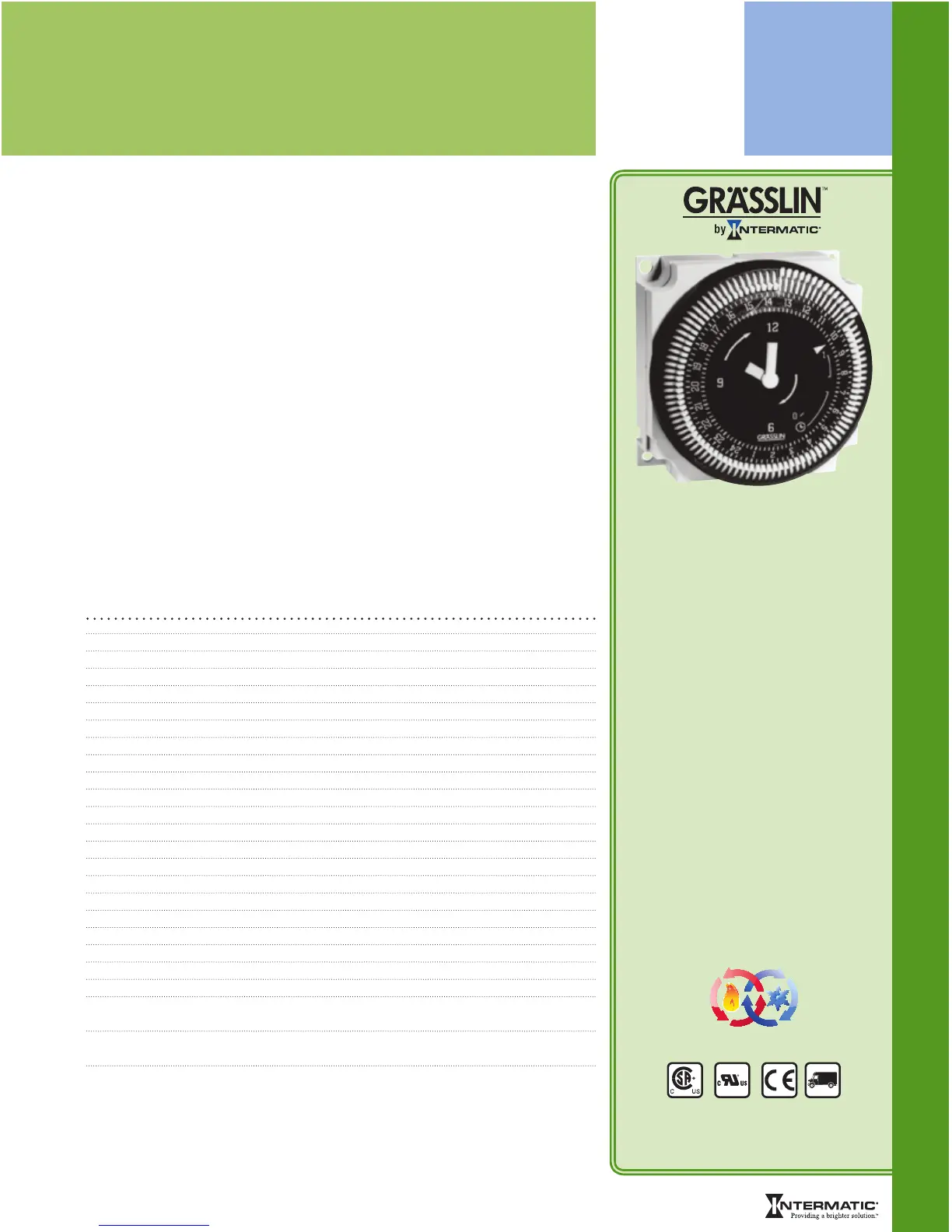

FM1STUZ-120U
Features:
•21ASPDTswitch
•96CaptiveTrippers
•
1
⁄
4
in.quick-connectterminals
•NoiseImmune—Idealforrobust
applications
FM/1 Series
24-Hour, 7-Day
Applications:
The FM/1 series mechanical timer modules are designed to be placed inside a
machinecontrolpanel,circuitboard,orotherequipment.Itoffersupto21Amp
switching designed for control of heating, ventilating, air conditioning, refrigeration,
lighting,security,circulatingpumps,spasoranyelectricalloadrequiring24-houror
7-day scheduling.
Specifications:
Size: 3.25 in. H x 3.25 in. W x 2.25 in. D
Supply Voltage: 24, 120, 240 VAC
Power Consumption: 1 VA
Switch Rating: SPDT
Resistive: 21 Amp
Tungsten: 1350 W
Inductive: 1 HP, 125 VAC; 2 HP, 240 VAC
Wiring Connections:
1
⁄
4
in.quick-connectterminals
Operating Temperature Range:“S”models–40ºFto185ºF(–40ºCto85ºC)
“Q”models–20ºFto131ºF(–20ºCto55ºC)
Installation: Stand alone or with Indoor/Outdoor enclosure
Panel: Surface mounting
Min Switch
Model Switch Battery ON/OFF Output
Number Override Program Backup Time Volts AC Type/Amps
FM1STUZ-120U No 24 Hr. No 15 Minutes 120 SPDT/21
FM1STUZ-24U No 24 Hr. No 15 Minutes 24 SPDT/21
FM1STUZ-240U No 24 Hr. No 15 Minutes 240 SPDT/21
FM1SWUZ-120U No 7 Day No 2 Hours 120 SPDT/21
FM1SWUZ-24U No 7 Day No 2 Hours 24 SPDT/21
FM1SWUZ-240U No 7 Day No 2 Hours 240 SPDT/21
FM1STUZH-120U Yes 24 Hr. No 15 Minutes 120 SPDT/21
FM1STUZH-24U Yes 24 Hr. No 15 Minutes 24 SPDT/21
FM1STUZH-240U Yes 24 Hr. No 15 Minutes 240 SPDT/21
FM1SWUZH-120U Yes 7 Day No 2 Hours 120 SPDT/21
FM1SWUZH-24U Yes 7 Day No 2 Hours 24 SPDT/21
FM1SWUZH-240U Yes 7 Day No 2 Hours 240 SPDT/21
FM1QTUZH-120U Yes 24 Hr. Yes 15 Minutes 120 SPDT/21
FM1QTUZH-24U Yes 24 Hr. Yes 15 Minutes 24 SPDT/21
FM1QTUZ-120U No 24 Hr. Yes 15 Minutes 120 SPDT/21
FM1QTUZ-24U No 24 Hr. Yes 15 Minutes 24 SPDT/21
FM1QTUZ-240U No 24 Hr. Yes 15 Minutes 240 SPDT/21
FM1QWUZ-120U No 7 day Yes 2 Hours 120 SPDT/21
FM1QWUZ-240U No 7 day Yes
2 Hours 24
0
SPDT/21
FM1QWUZH-120U Yes 7 Day Yes 2 Hours 120 SPDT/21
FM1QWUZH-240U Yes 7 day Yes 2 Hours 240 SPDT/21
FM1QWUZH-BW-24U Yes 7 day Yes 2 Hours 24 SPDT/21
FM1STUZH220/50 Yes 24 Hr. No 15 Minutes 220 SPDT/21
(50 Hz)
FM1STUZ220/50 No 24 Hr. No 15 Minutes 220 SPDT/21
(50 Hz)
0.25 lbs
.01 kg
C22.2-177
LR3730
UL917
H VA C / R
21
