FUNCTION SELECTOR JUMPER SETTINGS:
J1 MASTER SWITCH
1-2 Latching
2-3 Momentary
Factory setting is 1-2 for all four Jumpers
OPERATION
Every time the position of the REMOTE SWITCH changes, the Motorized Valve(s) rotate

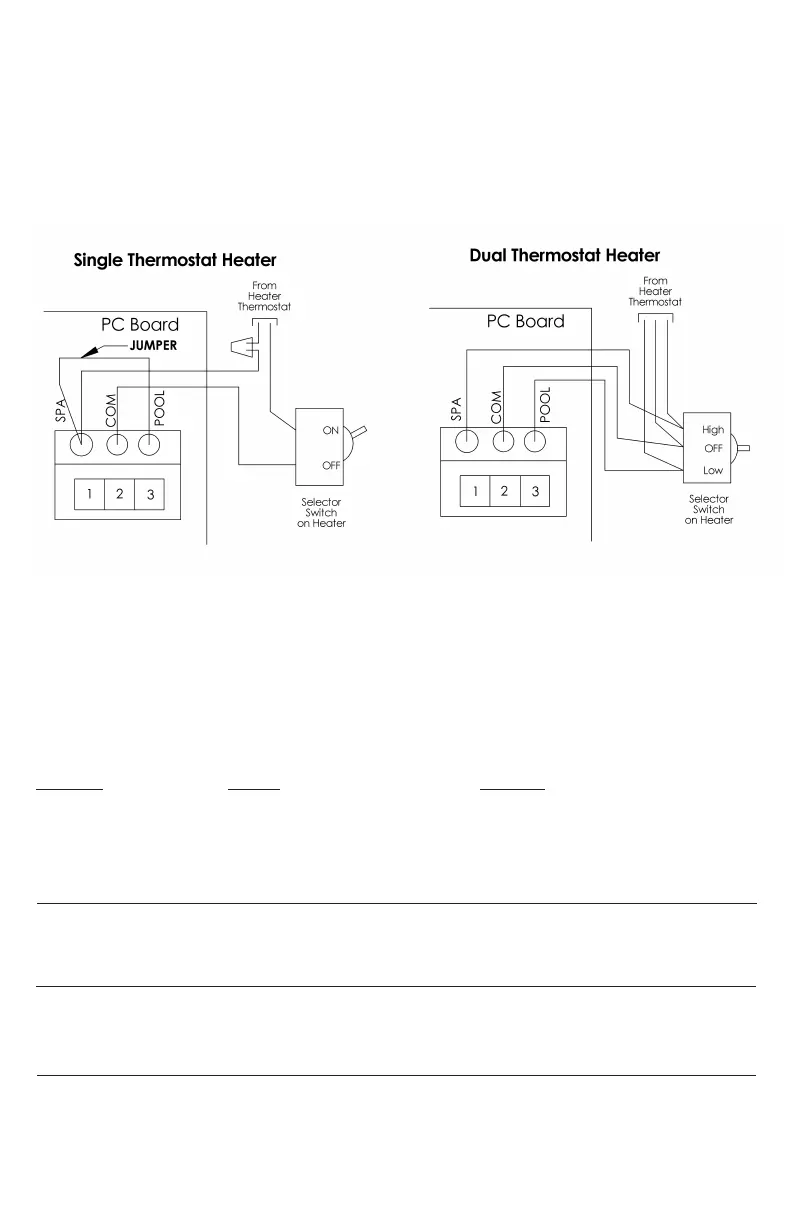

to the opposite position. In addition, if connected, the heater thermostat setting changes
from LOW to HIGH or HIGH to LOW.
TROUBLE SHOOTING
Problem Cause Solution
1. Nothing works. a. No power to transformer Check power supply
b. 120 Volt is connected to Connect 120 Volt supply to Black
240 Volt leads and White leads
c. 240 Volt was connected to Replace defective control unit
120 Volt transformer leads.
2. Remote installed a. Jumper J1 is on pins 2-3 Place Jumper J1 on Pins 1-2
Actuator Switch will or missing.
not operate
equipment.
3. Wired remote is a. Connector is incorrectly Re-attach 8-pin connector
not working attached
b. Corroded/dirty connector Clean connector pins.
pins
4. Valve actuators a. Actuators are out-of-sync Synchronize actuators (Refer to
work opposite valve actuator manual)
pump relay
3
