IMPORTANT
NEUTRAL WIRE
MUST ALWAYS BE USED
NOTES:
1. Dot (•) indicates twist on wire connector connection.
2. If Freeze Protection is not required, permanently
insulate brown lead.
WIRING DIAGRAMS - RC2123PT
Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make
changes, without notice, in the specifications and material contained herein and shall not be responsible for any damages,
direct or consequential, caused by reliance on the material presented.
INTERMATIC INCORPORATED, SPRING GROVE, IL 60081-9698
158--00653
4

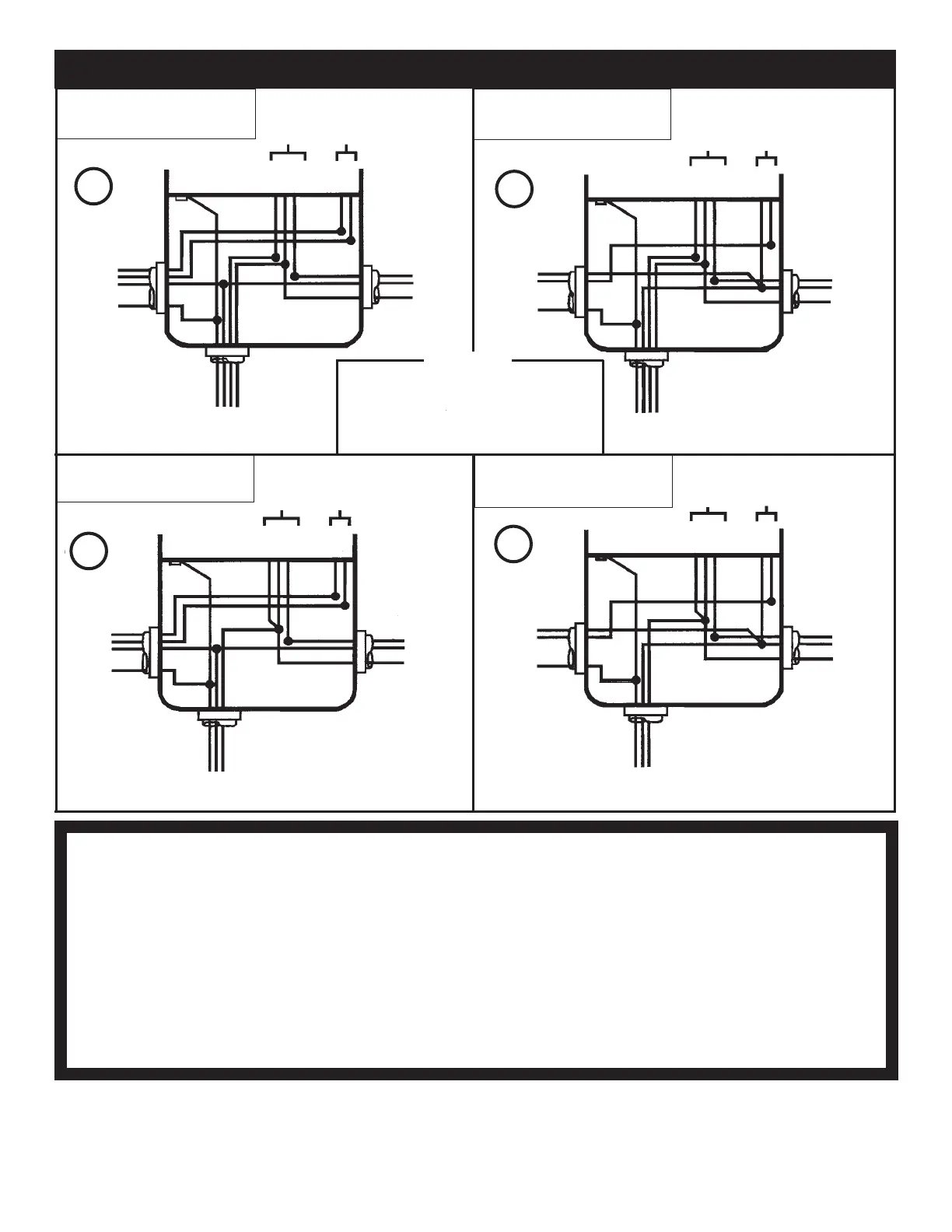

TYPICALWIRING
240V. TWO SPEED PUMP
240V.FREEZEPROTECTION
TYPICALWIRING
120V. TWO SPEED PUMP
120V.FREEZEPROTECTION
TYPICALWIRING
240V .SINGLE SPEED PUMP
240V.FREEZEPROTECTION
TYPICALWIRING
120V. SINGLE SPEED PUMP
120V.FREEZEPROTECTION
PUMP
INPUT
BLUE
GRAY
BROWN
(FRZ. P.)
WHITE
BLACK
NEUTRAL
LINE 1
LINE 2
GROUND
INPUT
OPTIONAL
240V.
FREEZE
PROTECTION
LINE 1
LINE 2
LOAD
BLUE
GRAY
BROWN
(FRZ. P)
RED
YELLOW
WHITE
BLACK
PUMP
INPUT
OPTIONAL
120V.
FREEZE
PROTECTION
LINE 1
NEUTRAL
LOAD
NEUTRAL
LINE 1
GROUND
INPUT
GROUND
COMMON
HIGH
LOW
PUMP
PUMP
GROUND
COMMON
HIGH
LOW
PUMP
INPUT
BLUE
GRAY
BROWN
(FRZ. P.)
WHITE
BLACK
OPTIONAL
240V.
FREEZE
PROTECTION
LINE 1
LINE 2
LOAD
NEUTRAL
LINE 1
LINE 2
GROUND
INPUT
GROUND
LOAD 2
LOAD 1
PUMP
BLUE
GRAY
BROWN
(FRZ. O)
WHITE
BLACK
PUMP
INPUT
OPTIONAL
120V.
FREEZE
PROTECTION
LINE 1
NEUTRAL
LOAD
NEUTRAL
LINE 1
GROUND
INPUT
PUMP
GROUND
COMMON
LOW
D
C
A
B
GRD
GRD
GRD
GRD
ONE YEAR LIMITED WARRANTY
If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or
replace it, at its sole option, the unit free of charge. This warranty applies only to the original purchaser and is not transferable. This warranty
does not apply to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use; (b) units which have been
subject to unauthorized repair, opened, taken apart, or otherwise modified; (c) units not used in accordance with instructions; (d) damages
exceeding the cost of the product. Some states do not allow a limitation of damages, so the foregoing limitation may not apply to you. This
warranty gives you specific legal rights and you may have other rights that vary from state to state.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS IN LIEU OF
ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND
THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED
WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product,
along with proof of purchase, postage prepaid to the authorized service center listed below. This warranty is made by: Intermatic Incorporated/
After Sales Service, 7777 Winn Rd., Spring Grove, IL 60081-9698/815-675-7000 http://www/intermatic.com Please be sure to wrap the product
securely when mailing to avoid shipping damage.
