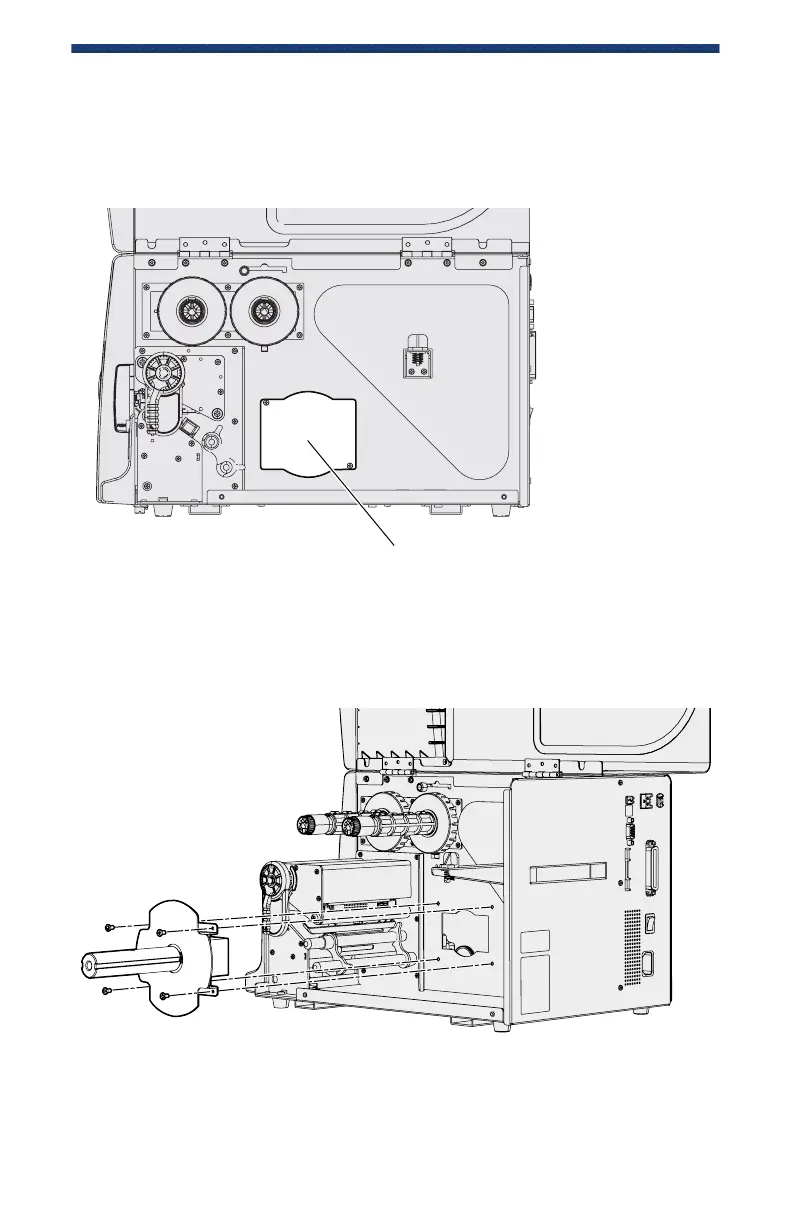

To install the internal rewinder
1 Open the side door of the printer.
2 Remove the two screws that hold the rewinder option cover plate in
place. Keep the screws.
3 Remove the liner retention clip from the rewinder unit.
4 Attach the rewinder unit to the printer using two of the screws included
in the kit with the two screws that were previously used to hold the cover
plate in place.
