SETTING
UP
BOTTOMS
AND
COLTERS
-
Continued
Reversible
replaceable
wear pad

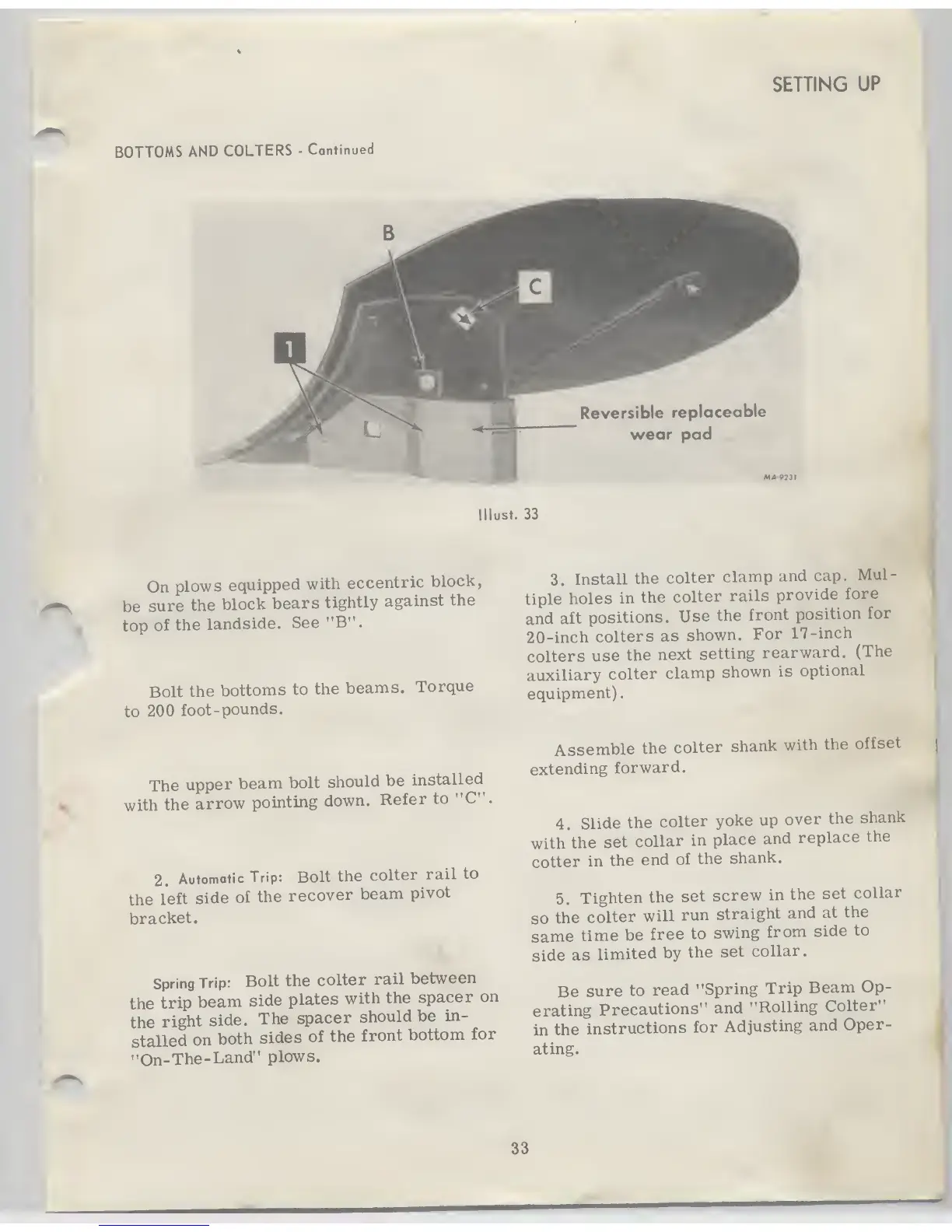

lllust.
33
On
plows
equipped
with
eccentric
block,
be
sure
the
block
bears
tightly
against
the
top
of
the
landside.
See
"B".
Bolt
the
bottoms
to
the
beams,
to
200
foot-pounds.
Torque
The
upper
beam
bolt
should
be
installed
with
the
arrow
pointing
down.
Refer
to
"C"
2.
Automatic
Trip: Bolt
the
colter
rail
to
the
left
side
of
the
recover
beam
pivot
bracket.
Spring
Trip:
Bolt
the
colter
rail
between
the
trip
beam
side
plates
with
the
spacer
on
the
right
side.
The
spacer
should
be
in-
stalled
on
both
sides
of
the
front
bottom
for
"On-
The
-Land"
plows.
3.
Install
the
colter
clamp
and
cap.
Mul-
tiple
holes
in
the
colter
rails
provide
fore
and
aft
positions.
Use
the
front
position
for
20-inch
colters
as
shown.
For
17-inch
colters
use
the
next
setting
rearward.
(The
auxiliary
colter
clamp
shown
is
optional
equipment).
Assemble
the
colter
shank
with
the
offset
extending
forward.
4.
Slide
the
colter
yoke
up
over
the
shank
with'the
set
collar
in
place
and
replace
the
cotter
in
the
end
of
the
shank.
5.
Tighten
the
set
screw
in
the
set
collar
so
the
colter
will
run
straight
and
at
the
same
time
be
free
to
swing
from
side
to
side
as
limited
by
the
set
collar.
Be
sure
to
read
"Spring
Trip
Beam
Op-
erating
Precautions"
and
"Rolling
Colter"
in
the
instructions
for
Adjusting
and
Oper-
ating.
33
