Interpack ipg RSA 2024-TB/2” - Machine Dimensions; Set-Up Recommendations

UDM108-01 12 RSA2024-TB/2”
Specifications (Cont’d)

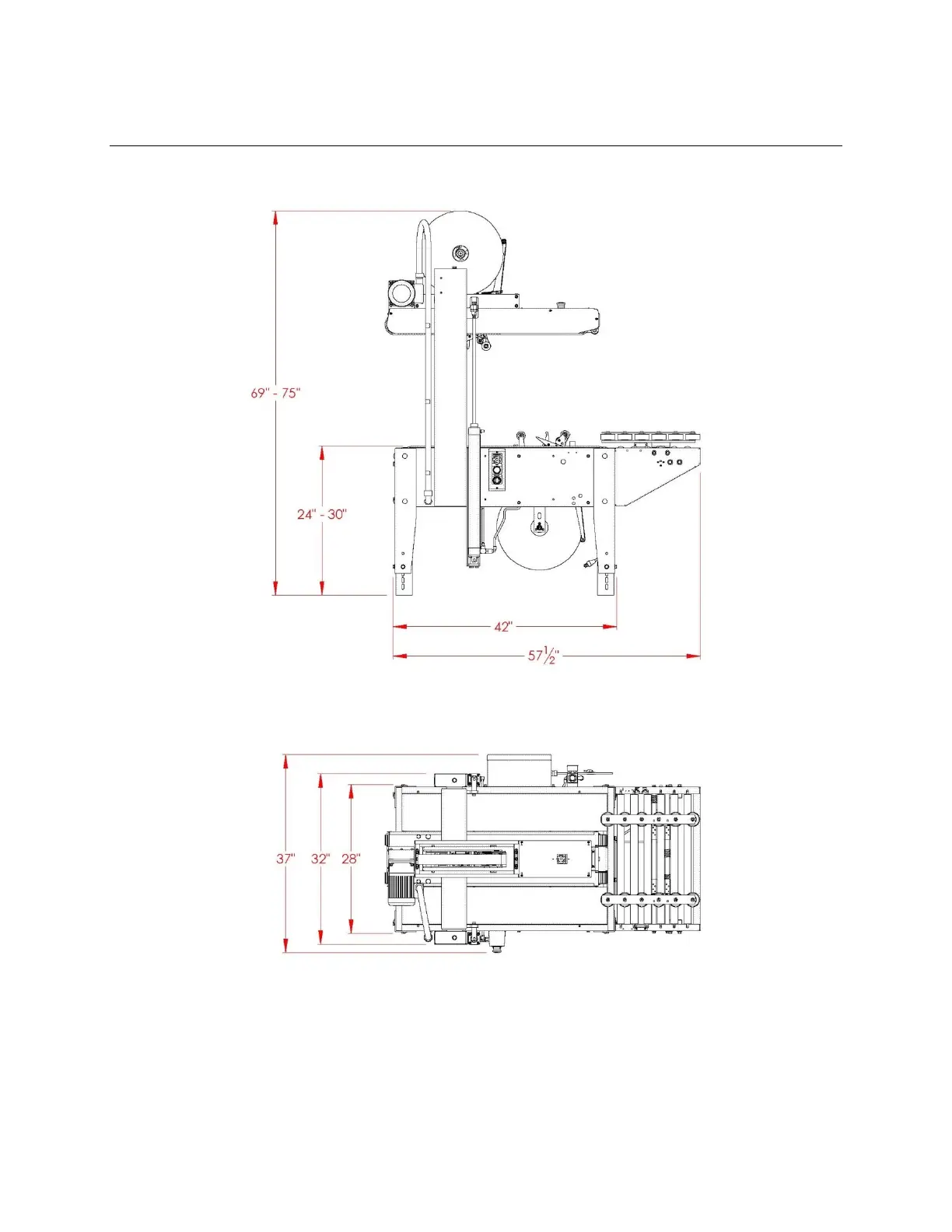

11. Machine Dimensions:
12. Set-Up Recommendations:
 The Carton Sealer must be level.
 Customer supplied infeed conveyor (if used) should provide straight and level entry.
 Customer supplied exit conveyor (if used) should be straight and declined no more
than ¼”/foot away from the machine to convey the sealed cartons away from the
machine.
Figure 7
