23

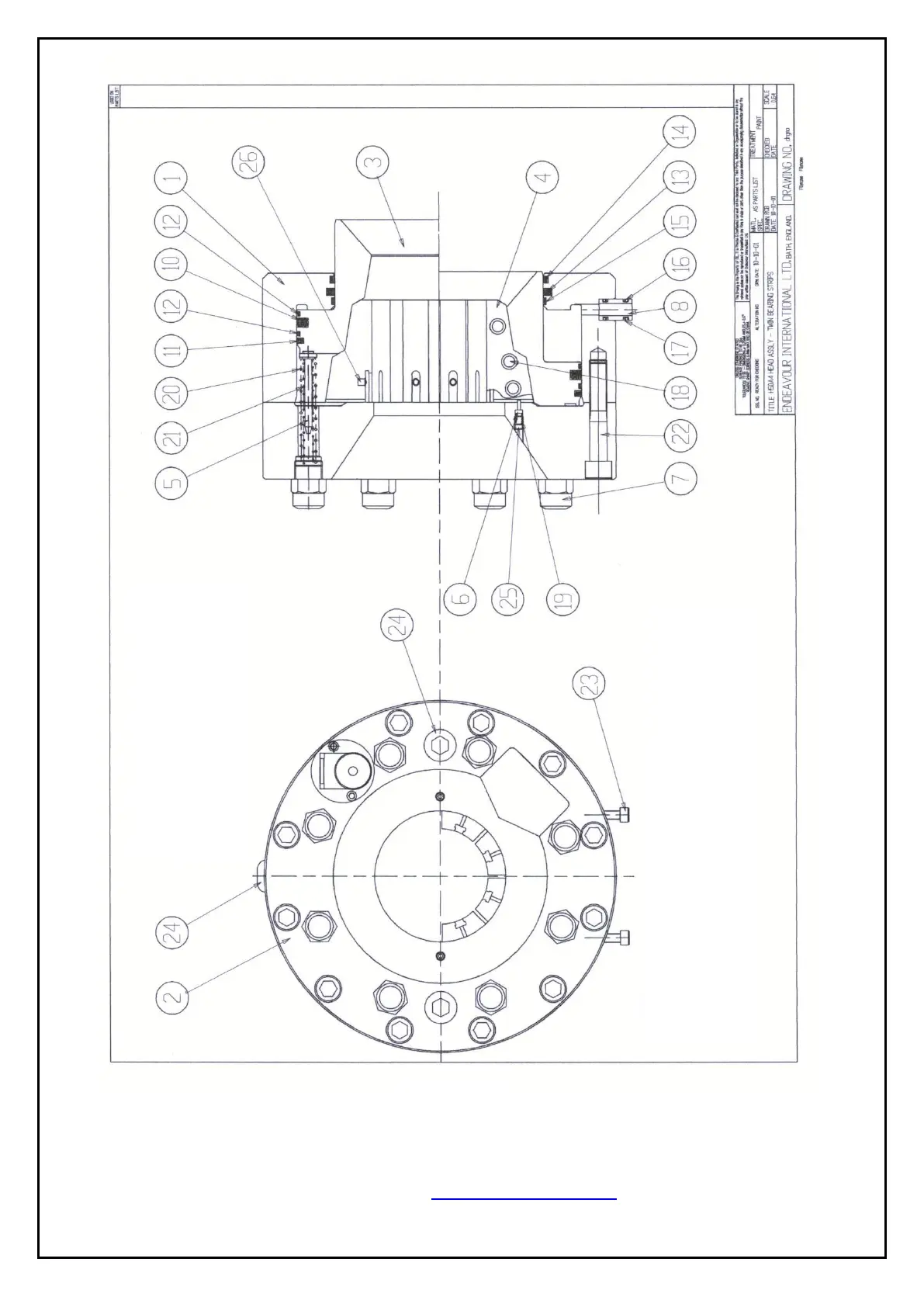

Figure 1
22
24
Table of Contents
Main Page
Table of Contents
2
Warranty Conditions
3
Ec Declaration of Conformity
4
Safety Regulations
5
Technical / Dimensional Data
6
Handling/Transport
6
Preliminary Checks
6
Lighting
6
Routine Maintenance
6
Installation
7
Three Phase Machines
7
Single Phase Machines
7
Starting the Machine for the First Time
7
Safety Precautions
7
Basic Swaging Procedure
9
Basic Swage Screen
9
Important Note on Swage Dimensions
10
Quick Change Tool Operating Instructions
11
Inserting dies into the Machine
11
Advanced Swage Procedure
12
Swage Diameter
12
Swage Offset
12
Opening Time
12
Dwell
13
Preset Menu
14
CSV Table
14
Usb Updates
15
Settings Menu
16
Settings
16
Lubrication
17
Settings
19
Calibration
19
Help Screen
21
Technical Information
22
Maintenance and Service
22
Spare Parts
22
Die Fitting Instructions
24
Electrical Diagram: 3 Phase
25
Electrical Diagram: 1 Phase
26
