Die Fitting Instructions

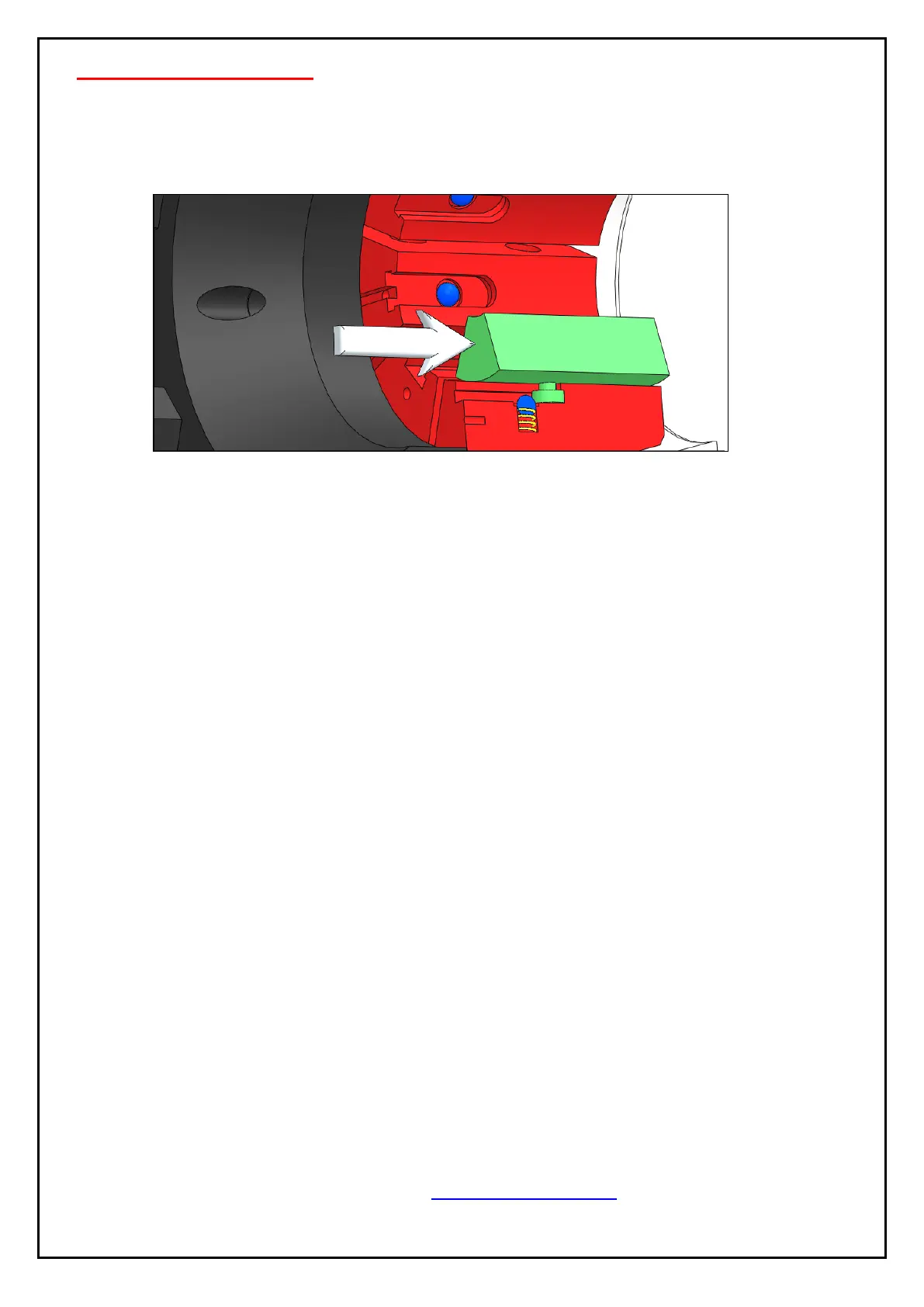

Dies are inserted from the front of the swaging head. The die holders have a T slot with a spring
loaded ball bearing to retain the dies. Ensure that the die is fully inserted in the T slot and that the
longest portion of the die from the pin is facing the back of the head as shown in Figure 2 below.
