Interroll Drum motor series i, S, S/A, D
Options and accessories
62
Version 4.1 (06/2015) en-US
Translation of original instruction manual
1 2
3 4 5 6
ekarb tupni

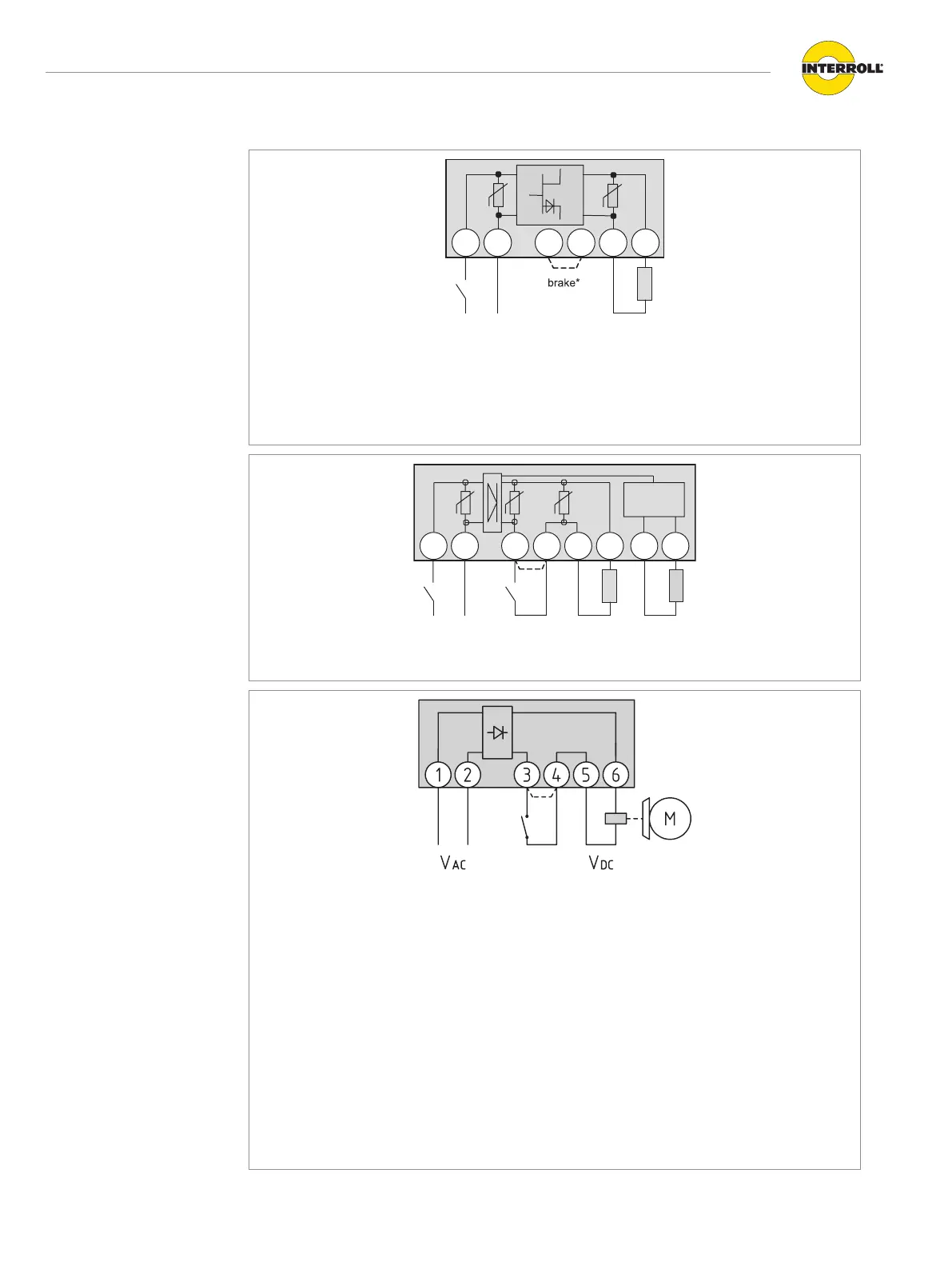

Phase rectifier
Maximum switching frequency = 2 cycles/second
* Connection 3 & 4 interrupts the DC circuit
and extends the fall delay
inputbridge brakejustage
delay time
1 2
3 4 5 6 7 8
Fast-acting rectifier
Multi-switch rectifier
