119A
SAVE THESE INSTRUCTIONS
(119IO) ULTRA XTR™ RECTANGULAR / PRISM FRAME™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 11/07/2018
English
Page 10

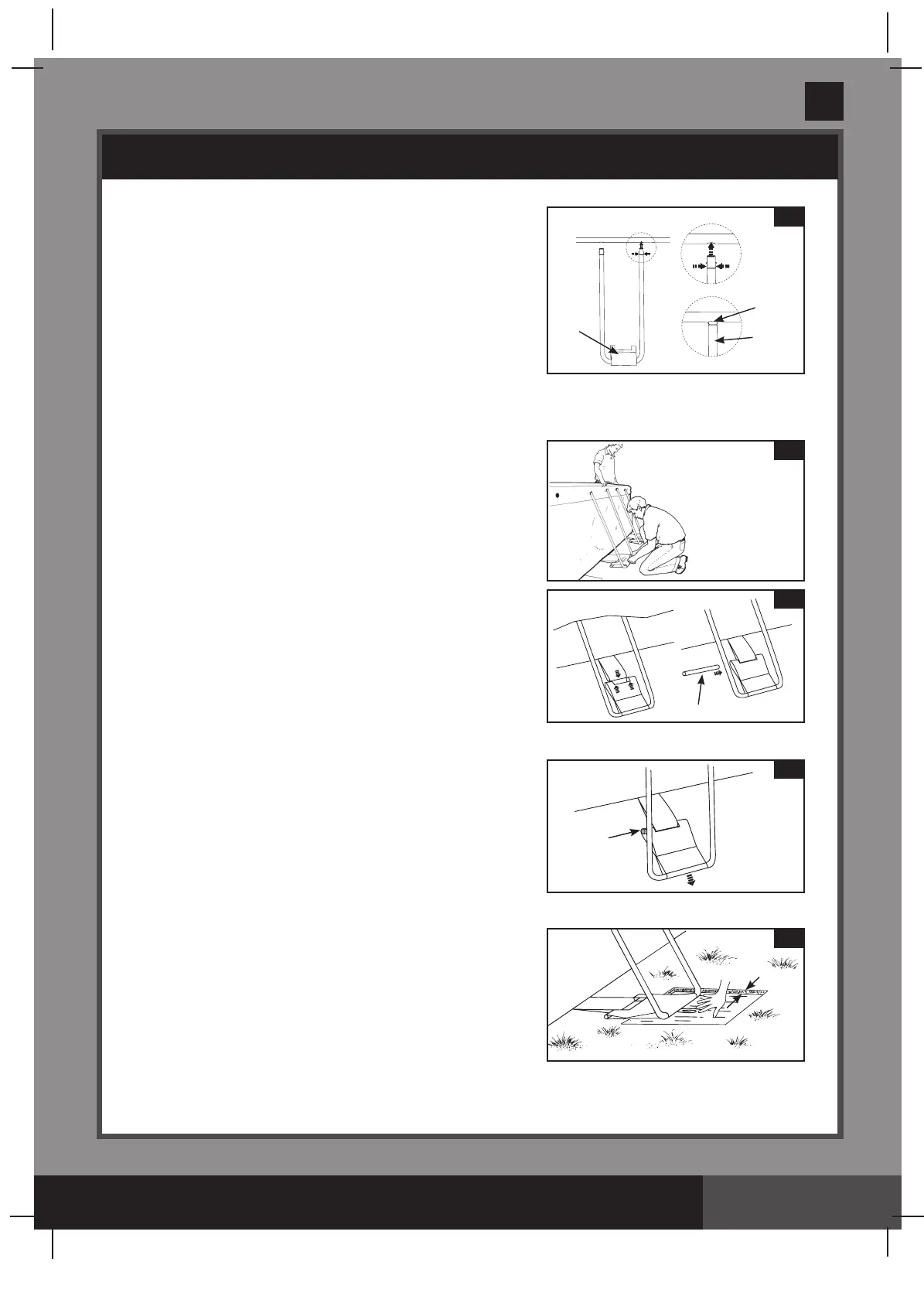

POOL SETUP (continued)
5.
The tops of the U-shaped side supports have a double
button spring loaded clip
(10)
that is factory pre-installed.
Insert the side supports into the “A-B-C & D-E-F” beam
holes by squeezing the bottom button inward with your
fingers.
Squeezing this bottom button will allow the support to enter
the beam. Once the U-support is inside the beam release
the finger pressure allowing the support to “SNAP” into
place. Repeat this procedure for all U-shaped side supports
(see drawing 5)
.
6.
With one person standing inside the pool, raise one corner;
insert the connecting rod
(12)
into the overlapping
openings, to connect the liner straps to the restrainer
straps. Repeat the operation in the other corners and then
on the sides
(see drawings 6.1 & 6.2)
.
7.
Pull the bottoms of the side supports out away from the
liner to make the straps taut. Repeat for all locations
(see drawing 7)
.
8.
If the ground is not concrete (asphalt, lawn or earth) you
must place a piece of pressure-treated wood, size
15” x 15” x 1.2”, under each leg and flush with the ground.
The U-shaped side supports must be placed in the center
of the pressure-treated wood and with the wood grain
perpendicular to the support leg
(see drawing 8)
.
5
13
11
10
6.1
6.2
LINER
LINER
12
7
12
8
Level
