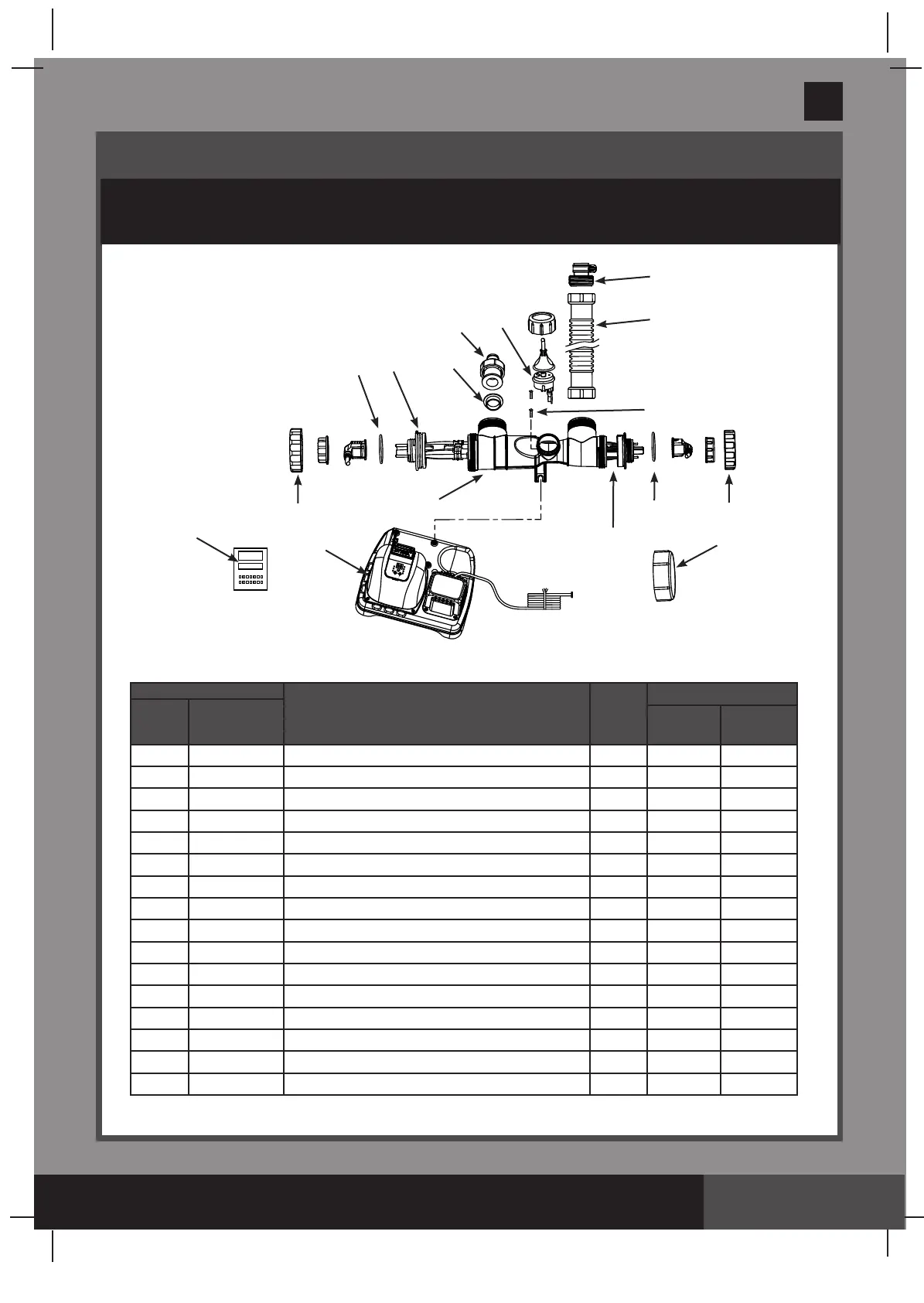

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
When ordering parts, be sure to quote the model number and part numbers.
REF. NO.
DESCRIPTION QTY.
SPARE PART NO.
COMMON
PARTS
PARTS FOR CONNECTION
TO FILTER PUMPS WITH
1-1/4” (32MM) HOSE SIZE
ECO
7220/7230
ECO
8220/8230
1 ADAPTOR A WITH THREADED COLLAR (OPTIONAL) 1
10849 10849
2 SCREW 2
11519 11519
3 ELECTROLYTIC CELL HOUSING 1
11898 11903
4 E.C.O. ELECTRODE 1
11900 11905
5 TITANIUM ELECTRODE 1
11899 11904
6 FLOW SENSOR 1
11460 11460
7
CONNECTOR HOSE WITH THREADED FITTINGS
1
10720 10720
8
THREADED ADAPTOR B (OPTIONAL)
1
10722 10722
9
CELL COVER
2
11131 11131
10 ELECTROLYTIC CELL NUT 1
11582 11432
11 L-SHAPE O-RING 2
11228 11228
12 TITANIUM ELECTRODE O-RING 1
11585 11515
13 CONTROL STATION 1
11902 11908
14 TEST STRIPS 1
19635 19635
15 TITANIUM ELECTRODE O-RING 1
11585 11585
16 ELECTROLYTIC CELL NUT 1
11582 11582
1
13
6
11
7
4
5
9
8
10
2
12
3
14
15
16
