SETUP INSTRUCTIONS
1
. Assemble the above-ground-pool (AGP) and its filter pump according to their installation
instructions.
2
. Take the Saltwater System and its accessories out of the packaging.
3
. Place the Saltwater System in line after the filter pump.
4
. Connect the connector hose
(7)
to the Saltwater System inlet.
Connecting the system to pump and pool with 1-1/4” (32mm) connections/hoses:
The saltwater system features 1-1/2” (38mm) connections. It is accordingly supplied with
adaptors A (1) and B (8) for connecting to the small 1-1/4” (32mm) diameter connections/
hoses. Install as follows:

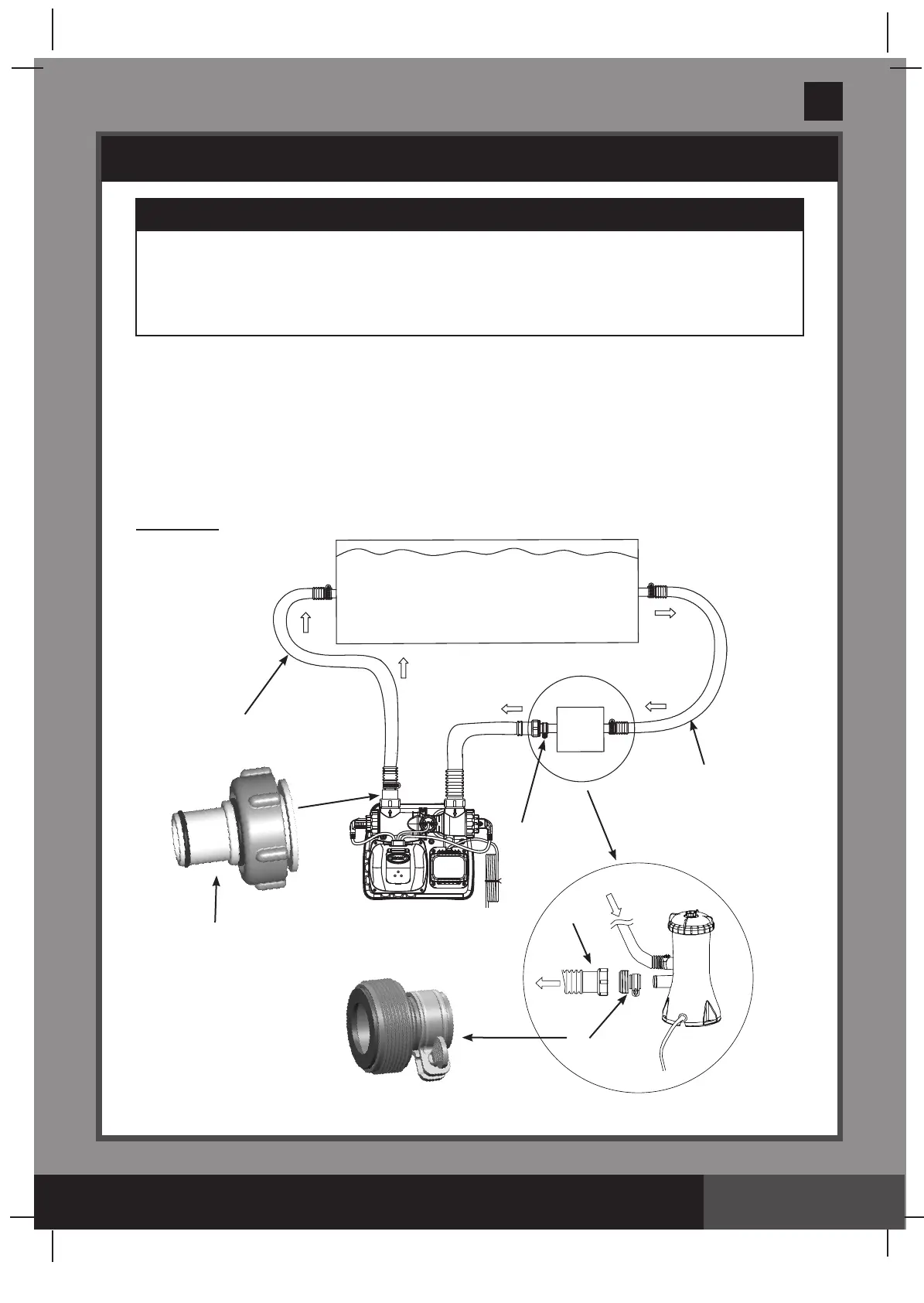

Drawing #1
IMPORTANT
• TheSaltwaterSystemrequiresaseparatefilterpump[700~3000gph(2650~
11355 lph)] to drive the water and function properly.
• TheSaltwaterSystemmustbeinstalledasthelastpieceofpoolequipmentinthe
water return line to the pool as displayed in Drawing #1. This location extends the
life of the titanium plates.
WATER TO
POOL
WATER FROM
POOL
ID 1-1/4” (32mm)
HOSE
ID 1-1/4”
(32mm) HOSE
1
8
8
7
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
FILTER
PUMP
SWIMMING POOL
