SETUP INSTRUCTIONS (continued)
Connecting the system to pump and pool with 1-1/2” (38mm) connections/hoses:
Pump and pool with 1-1/2” (38mm) connections do not require the adaptors A (1) or B (8).
Install as follows:

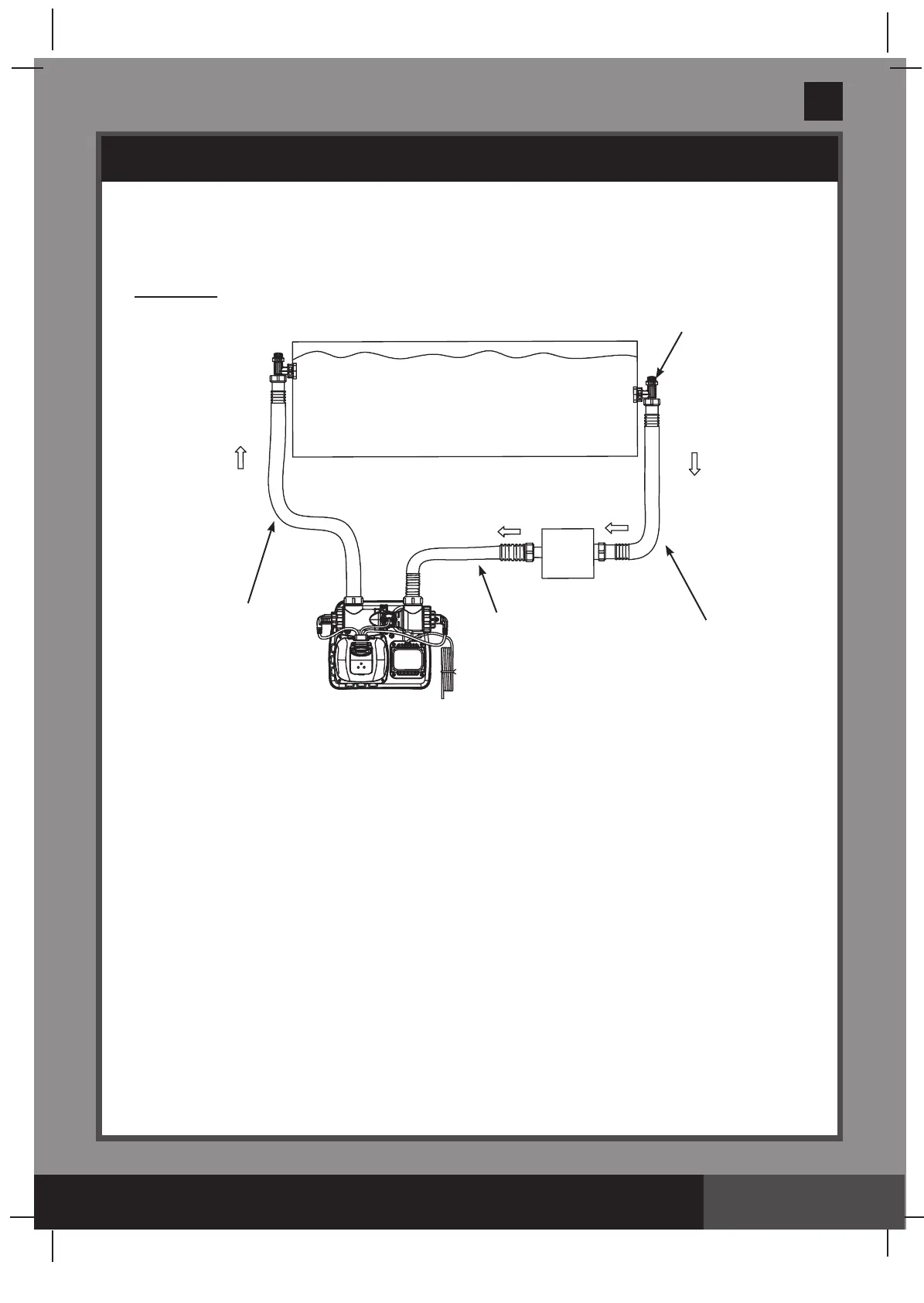

Drawing #2
1
. Go directly to step 2 if your pool is empty. If your above-ground-pool is filled with water,
close the plunger valves before installing the Saltwater System.
2
. Disconnect the water return hose from the filter pump connection and connect it to the
Saltwater System outlet.
3
. Connect the connector hose
(7)
to the filter pump outlet connection.
4
. Open the plunger valves to allow the water to flow.
FILTER
PUMP
ID 1-1/2” (38mm)
HOSE
ID 1-1/2” (38mm)
HOSE
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
SWIMMING POOL
WATER TO
POOL
PLUNGER
VALVE
WATER FROM
POOL
7
