(332IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 04/26/2018
Page 8
LADDER SETUP (continued)

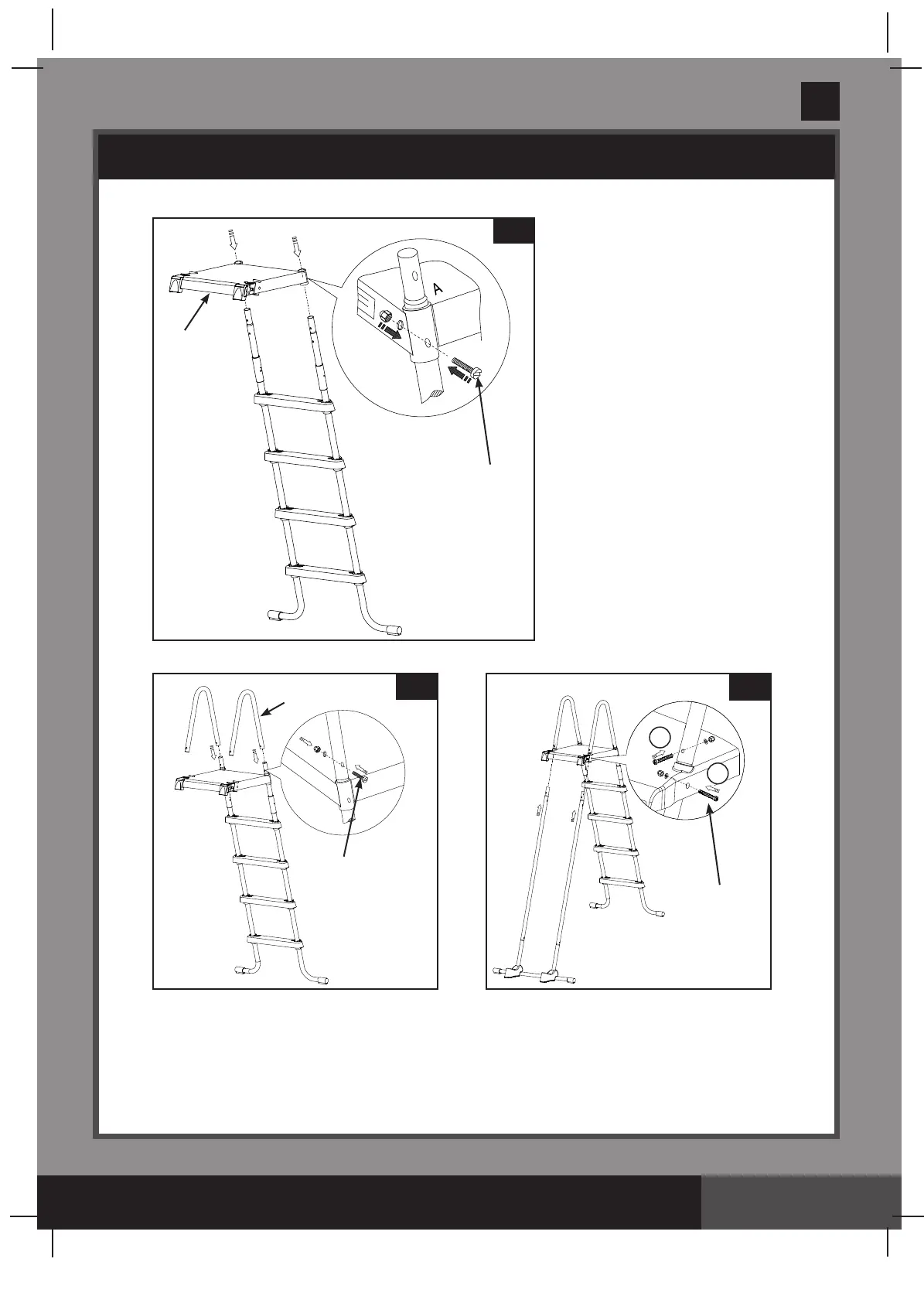

4. TOP PLATFORM INSTALLATION
(refer to figure 4):
5. U-SHAPED TOP RAIL INSTALLATION
(refer to figure 5.1 through 5.2):
IMPORTANT:
One side at a time. Do not attach the other side of the ladder until the
U-shaped top rail is installed. Make sure all nuts and bolts are securely tightened.
Do not fully tighten fasterners until last assembly operation.
5 (M6*40)
2
B
A
4
5.1
1
B
A
4 (M6*35)
5.2
B
A
C
C
2
1
5 (M6*40)
