(110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022
110
GS
SAVE THESE INSTRUCTIONS
English
Page 10

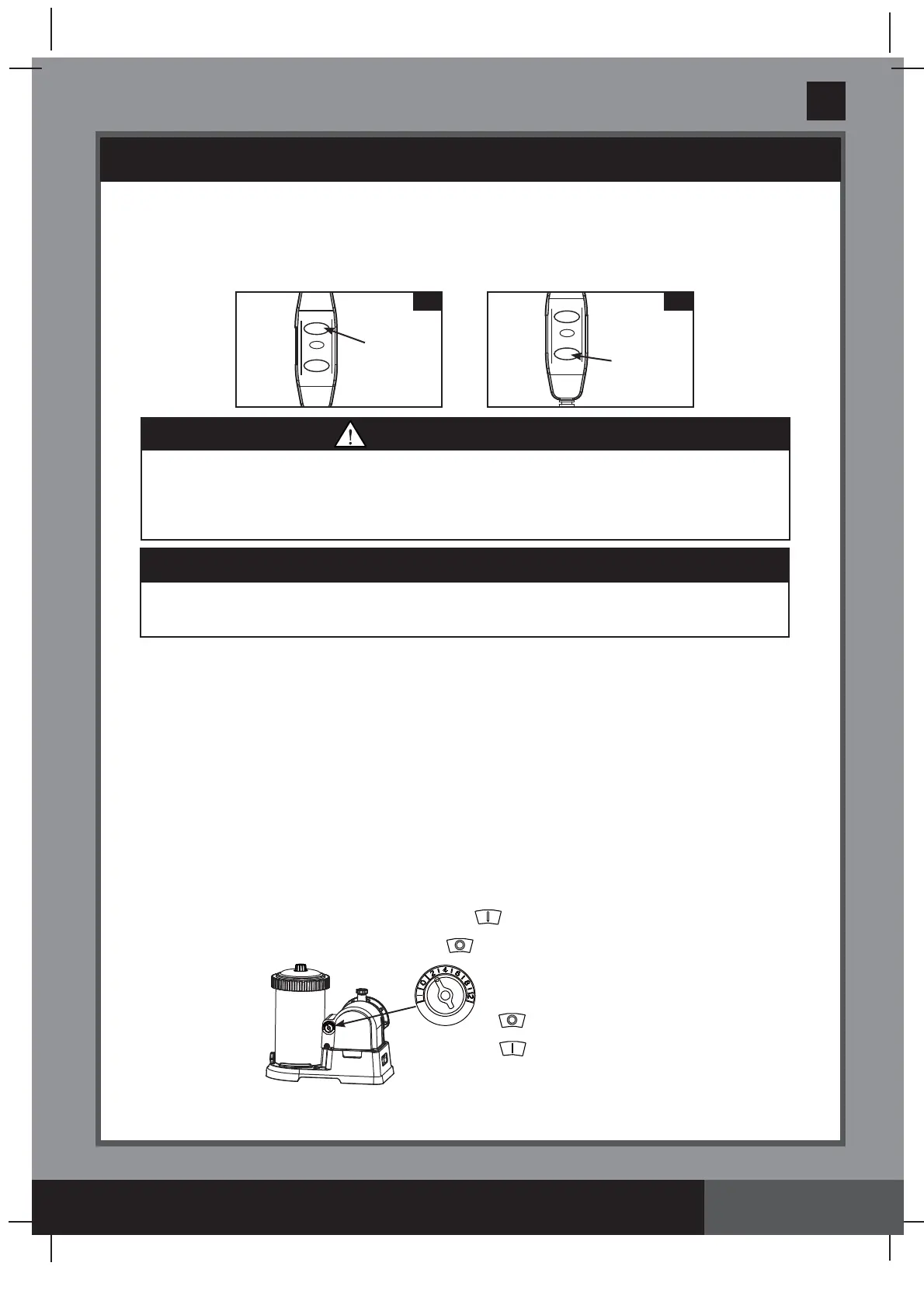

RCD OPERATING INSTRUCTIONS
• Plug RCD into power outlet. Press RESET button on the RCD plug. Indicator should be “ON”.
See FIG. 10.
• Press TEST button on the RCD plug. Indicator should be “OFF”. See FIG. 11.
• Press RESET button for use. Do not use if test fails. Contact a qualified electrician to
determine cause of failure.
1.
Make sure the filter pump is switched off. The switch is located on the motor housing.
2.
Connect the power cord to a GFCI protected electrical outlet.
3
.
Turn both plunger valve handles fully counter-clockwise until they stop. This opens the
valve, allowing water to flow into the filter pump.
4.
With water flowing into filter pump, the water pressure will allow the air trapped inside to
escape from the air release valves
(2 & 7)
. When all the air has escaped water will flow
out of the valves
(2 & 7)
. When this occurs gently finger tighten the valves
(2 & 7)
in a
clockwise direction.
5.
To operate the filter pump on “TIMER” mode:
A.
Plug the power cord into the electrical outlet and set the timer dial to the desired
operating hours
(see Fig. 12)
. See the “Operating Time Table” for the required
operating hours related to each pool size.
B.
The filter pump is now filtering the water and will stop after the operating hours are
completed. The built-in timer will now operate for the number of hours selected at the
same time each day.
C.
Operating hours can be re-adjusted if necessary. Follow step A – B.
To operate the filter pump manually (without the “TIMER” mode):
A.
Turn on the pump by setting the dial to “
” position, the filter pump is now
filtering the water.
B.
To turn off the pump, set the dial to “
” position.
OPERATING INSTRUCTIONS
FIG 12
6
.
Never put pool chemicals directly into the filter pump. This may damage the pump and void
the warranty.
: OFF
: ON (without the Timer)
2 / 4 / 6 / 8 / 12 : Timer operating time (hours)
WARNING
Risk of electric shock. Connect this product only to a grounding type receptacle protected by a ground-fault
circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified electrician if you cannot verify
that the receptacle is protected by a GFCI/RCD. Use a qualified electrician to install the GFCI/RCD, which has
a maximum rate of 30mA. Do not use a portable residual current device (PRCD).
IMPORTANT
To prevent air lock, open the lower plunger valve (connected inlet hose) first and then the upper
plunger valve (connected outlet hose). Open the air release valves, wait until water starts to flow
out of the air release valves, close air release valves.
RESET
RESET
TEST
TEST
RESET
10
RESET
RESET
TEST
TEST
TEST
11
