(110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022
110
GS
SAVE THESE INSTRUCTIONS
English
Page 4

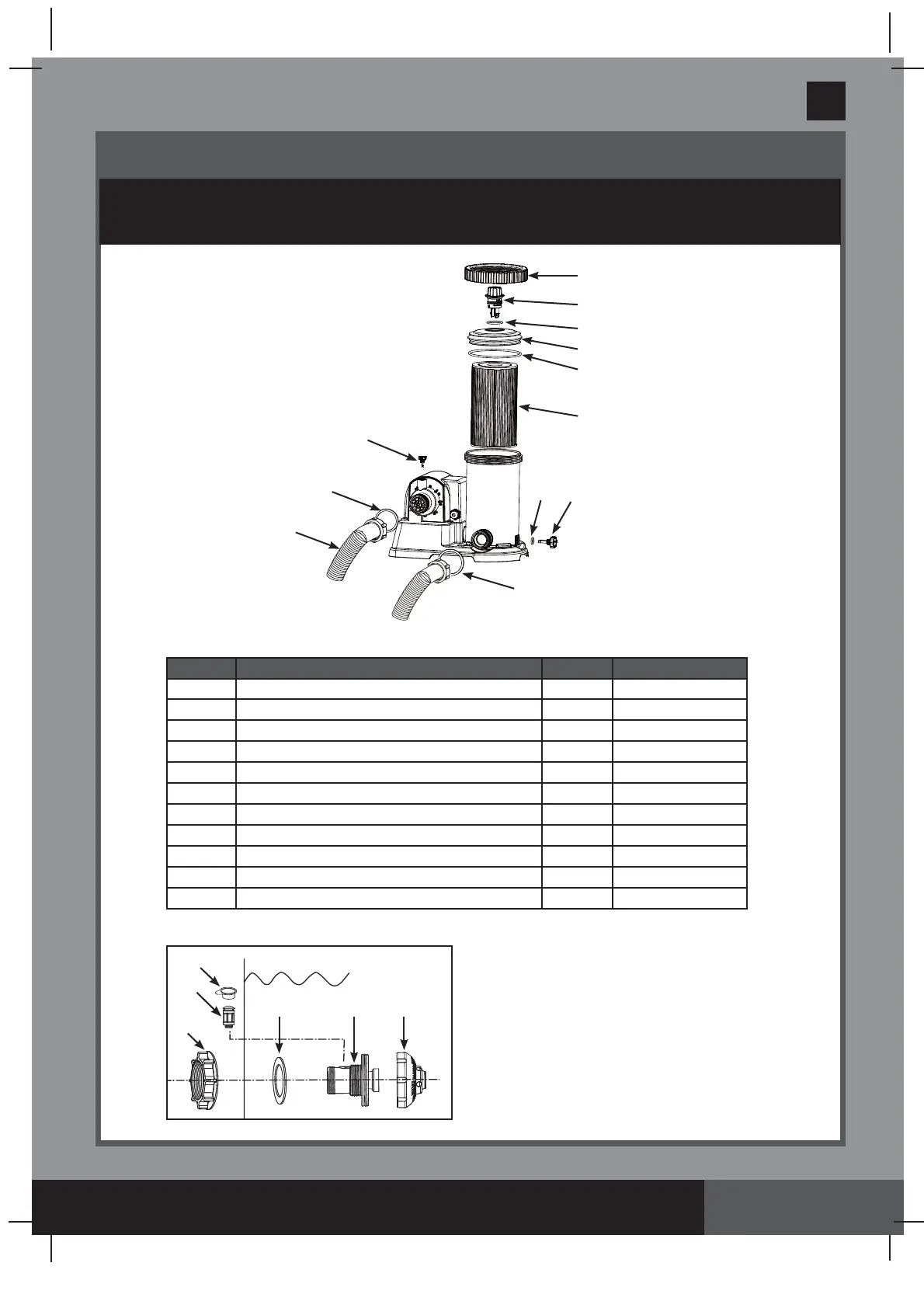

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
2
3
4
5
1
6
8
7
11
9
10
10
Type of filter medium:
Synthetic cartridge #29005
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 THREADED FILTER HOUSING COLLAR 1 10491
2 FILTER GAUGE+AIR RELEASE VALVE 1 13228
3 VALVE O-RING 1 13229
4 FILTER HOUSING COVER 1 13230
5 FILTER HOUSING O-RING 1 10492
6 FILTER CARTRIDGE 1 29005
7 AIR RELEASE VALVE B (WITH O-RING) 1 10725
8 PUMP HOSE WITH NUTS 2 11010
9 SEDIMENT RELEASE VALVE 1 10460
10 HOSE O-RING 2 13161
11 VALVE O-RING 1 10264
If the pump was purchased individually,
only these inlet fitting parts are included.
No tools are required for the assembly.
12
18
20
13 19 15
INLET
