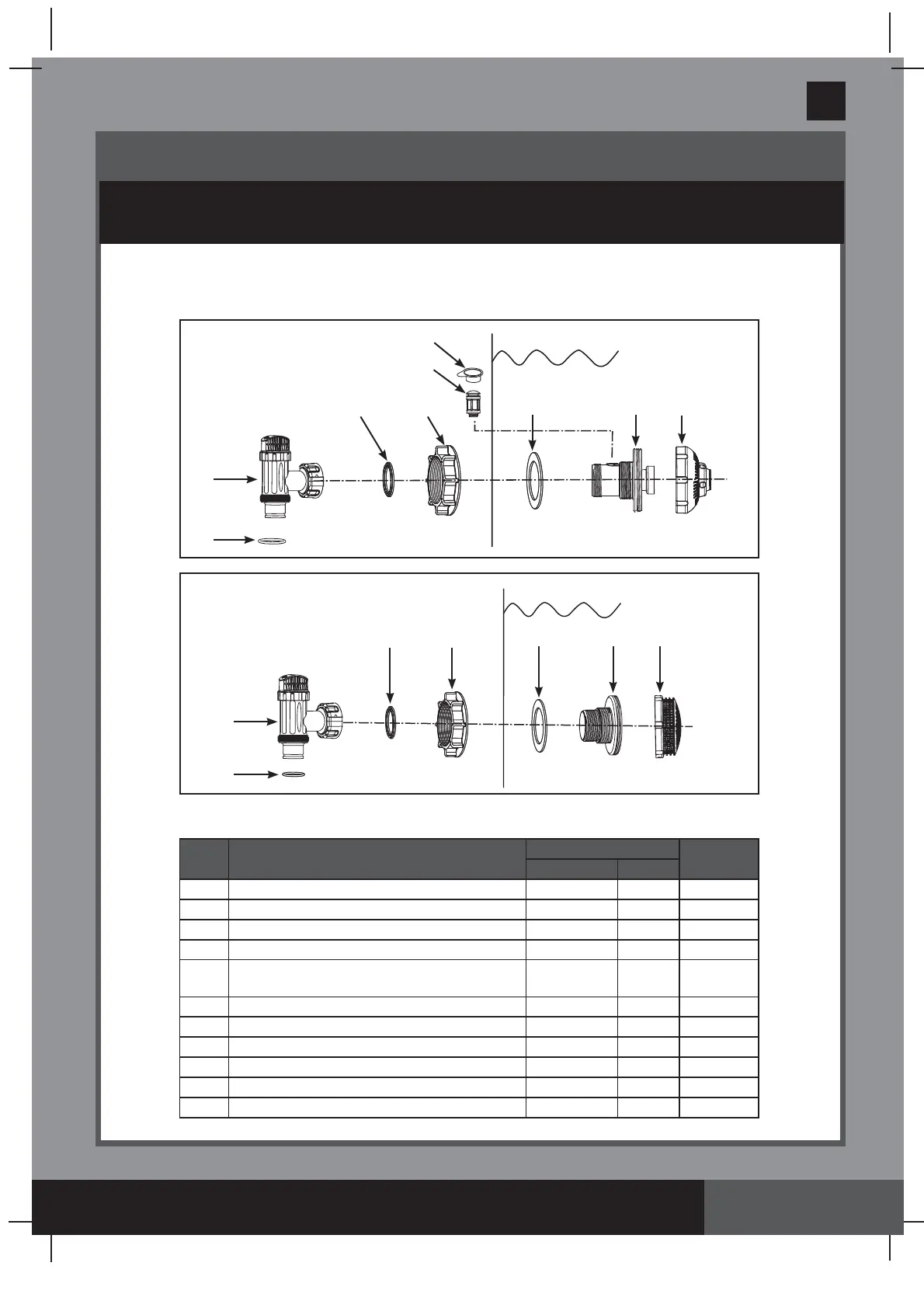

PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF.
NO.
DESCRIPTION
QTY.
SPARE
PART NO.
Individually Pool Set
12 STRAINER NUT 1 2 10256
13 FLAT STRAINER RUBBER WASHER 1 2 10255
14 THREADED STRAINER CONNECTOR 0 1 10744
15 ADJUSTABLE POOL INLET JET NOZZLE 1 1 12369
16
PLUNGER VALVE (HOSE O-RING & STEP
WASHER INCLUDED)
0 2 10747
17 STRAINER GRID 0 1 12198
18 AIR JET VALVE 1 1 12363
19 INLET THREADED AIR CONNECTOR 1 1 12371
20 AIR JET VALVE CAP 1 1 12373
21 HOSE O-RING 0 2 10262
22 STEP WASHER 0 2 10745
16
21
22 12 13 14
OUTLET
17
16
21
22 12 13 19
15
INLET
18
20
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
If the pump was purchased as part of a pool set, below fitting parts are included.
Contact our Authorized Service Centers to order these parts if needed.
When ordering parts, be sure to quote the model number and part numbers.
