1. Open line cord compartment cover and locate the
manual inflation port.
2.
Make sure the
valve control dial
of the internal electric
pump is still in the center/closed position.
3. Remove the cap from the manual inflation port and
insert the nozzle of the pump into the port. Inflate the
airbed to desired firmness.
NOTE: Do not overinflate. The firmness should be
approximately the same as the level achieved with the
internal electric pump.
4. Remove nozzle from manual inflation port and close
the cap and the line cord cover.

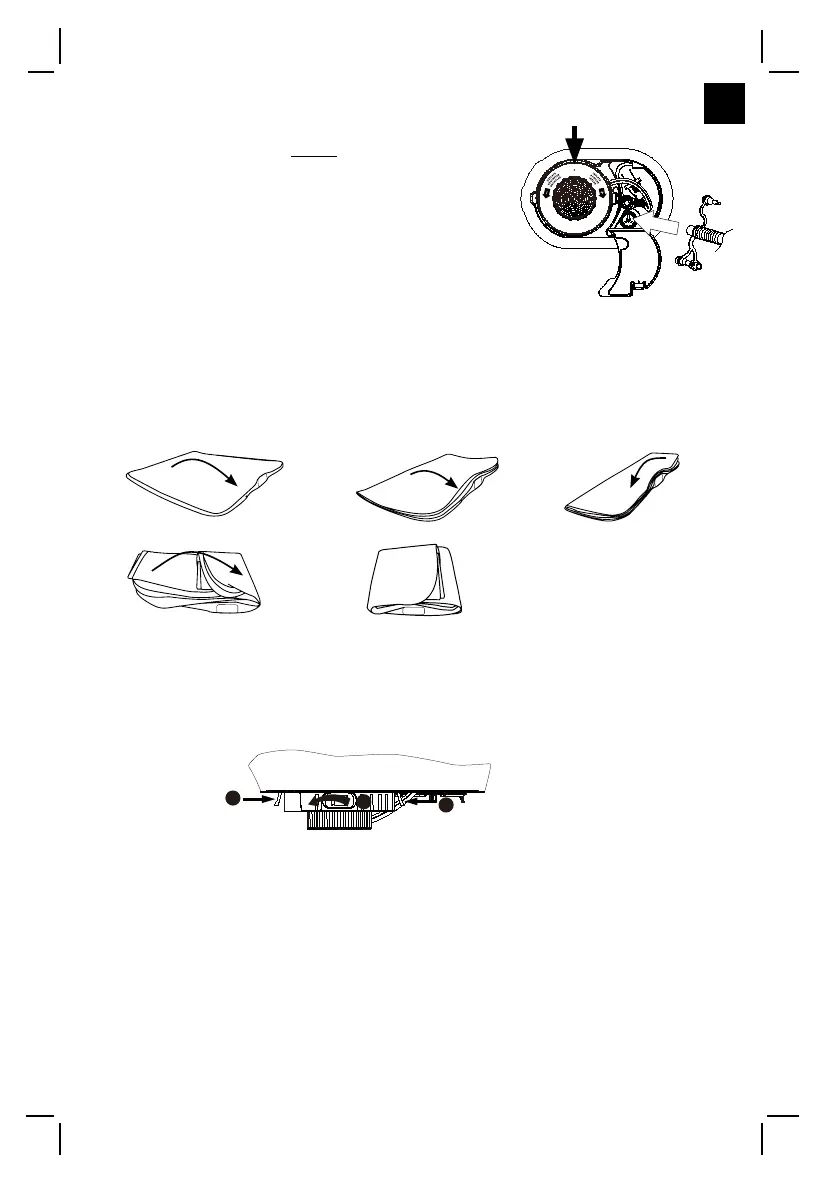

FIG (9)
FIG (10)
FIG (11)
FIG (13)
FIG (12)
STORAGE INSTRUCTIONS
1. Deflate the airbed following the "DEFLATION" instructions.
2. Make sure the airbed is clean and dry.
3. Lay the airbed flat with the sleeping surface facing upwards and follow the folding steps
on Figs (9 - 13). Fold the airbed loosely and avoid sharp bends, corners and creases
which can damage the airbed.
REPLACING INTERNAL AIR PUMP OR THE AIRBED COMPONENT
If there is a need to replace either the internal air pump or the airbed portion, detach
the internal pump from the airbed as follows:
1. While holding both lock tabs pressed inward (see Figure 14), turn the round body of the
pump (the large outer rim, not the valve control dial) counterclockwise and pull the air
pump body out of the holder frame.
2. Depending on which part is being replaced, keep the remaining component (either the
airbed portion or the removed pump) in a safe place until the replacement part is
received. Reattach the components when the new part is received: simply place
the pump into the holder frame and turn clockwise untill the lock tabs click into place.
NOTE: Make sure the rubber seal on the pump housing as well as the inside wall of the
holder frame are clean and free from any lint, hair or dirt, to ensure a proper seal and avoid
air leaks.
NOTE: Do not remove internal air pump from the holder frame other than for servicing, as
this may introduce lint, hair or dirt into the seal area and cause air leaks. If air leak is
experienced, check that the seal is clean before replacing the pump or the airbed.
FIG (14)
FIG (8)
