SAVE THESE INSTRUCTIONS
Page 11
(162) MODEL SF15220 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/28/2010
English
PPRROODDUUCCTT SSPPEECCSS && SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
Power: 220-240 Volt AC
Wattage: 370 W
Maximum working pressure: 2.4 bar (35 psi)
Effective filtering area: 0.1 m
2
(1.1 ft
2
)
Maximum Flow Rate: 6056 liters/hour (1600 gallons/hour)
Recommended filtering media:
Use only No. 20 silica sand. Particle size
(Not included) range 0.45 to 0.85 mm (0.018 to 0.033
inches). Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: 25 Kg (55 Lbs)
Limited Warranty: 2 Years (see “Limited Warranty”)
NOTE: NOT SUITABLE FOR USE WITH KCP-LOW -SALT AUTOMATIC SALTWATER
SYSTEM (MODEL 6110/6220
)
The sand filter removes suspended particles but does not sanitize your pool.
Pool chemistry is a specialized area and you should consult your local pool
service specialist for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture, flooding and
freezing temperature.
• Provide adequate access, space and lighting for routine maintenance.
• Pump motor requires free circulation of air for cooling. Do not install
the pump in a damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
Motor pre-filtering assembly setup:
1. Remove the sand filter and its accessories
from the packaging carefully and inspect for
any visible damage. If parts are damaged
contact your local service center listed at
the back of this ownerʼs manual.

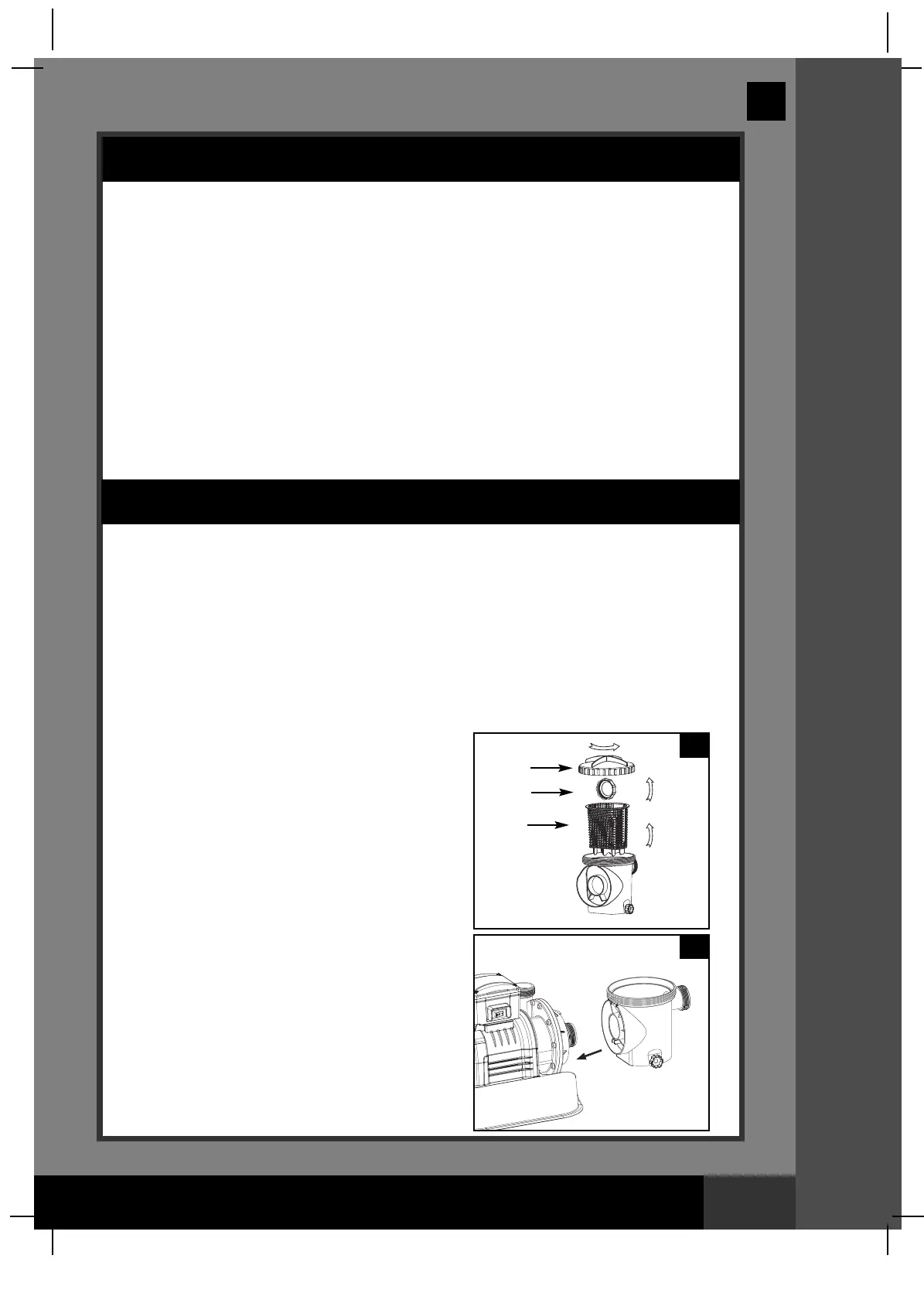

2. In a counter-clockwise motion unscrew the
leaf trap cover (14) from the pre-filter
housing. Take out the basket (16) and filter
housing nut (17) (see drawing 10).
3.
Connect the pre-filter housing to the motor
water inlet. Note: Align the connector in the
pre-filter housing with the water inlet on the
motor (see drawing 11).
10
11
14
17
16
