Note that the top waveform is for the SDA line and the bottom is for the SCL line.

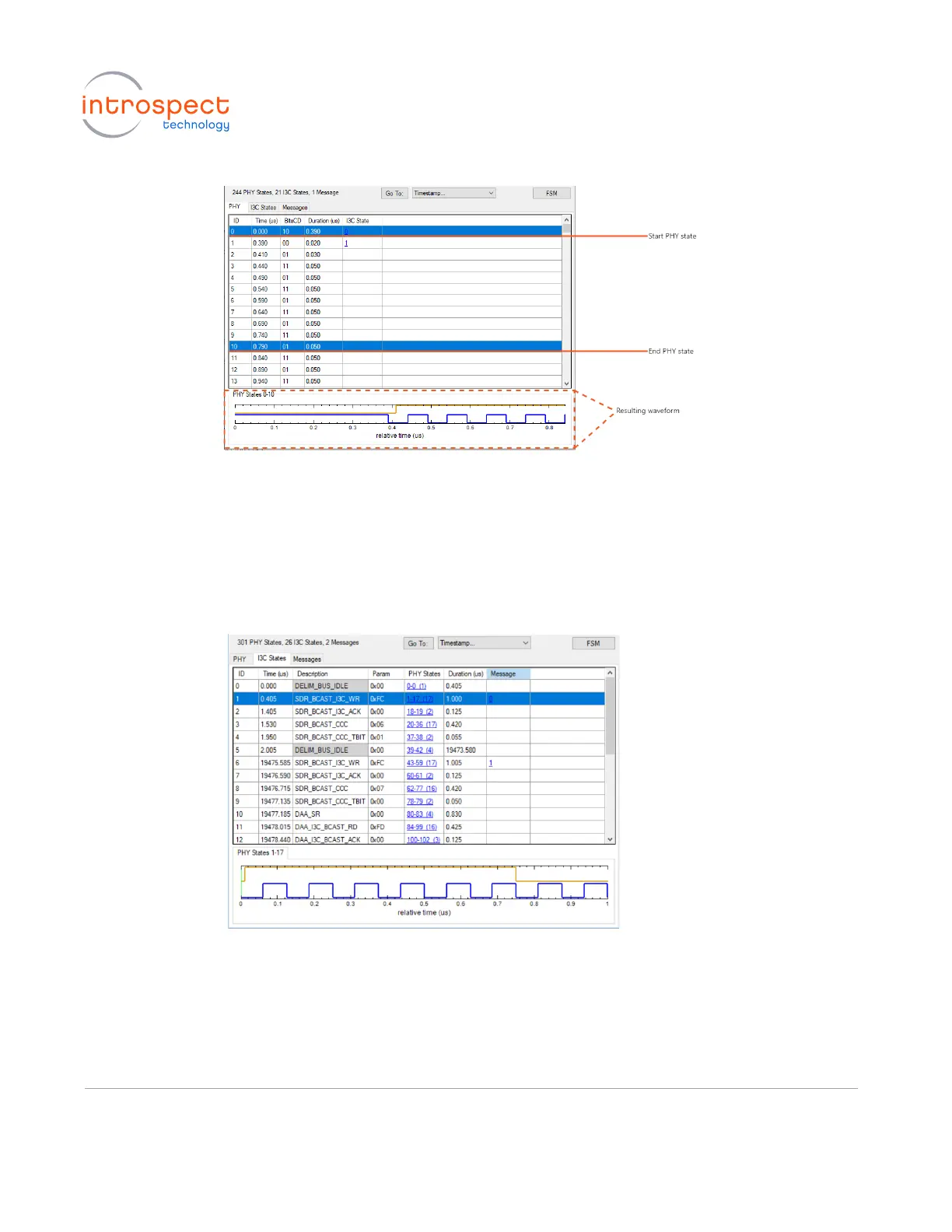

e) The “I3C States” tab allows you to visualize the different I3C commands that were
transmitted on the bus during the run. Just like in the previous tab, you can visualize
the waveform of one or multiple I3C commands by selecting it from the list.
