Invacare 3600 - Hydromassage Operation

SECTION 3—OPERATING INSTRUCTIONS
Part No 1118387 27 Side Entry Whirlpool Tub

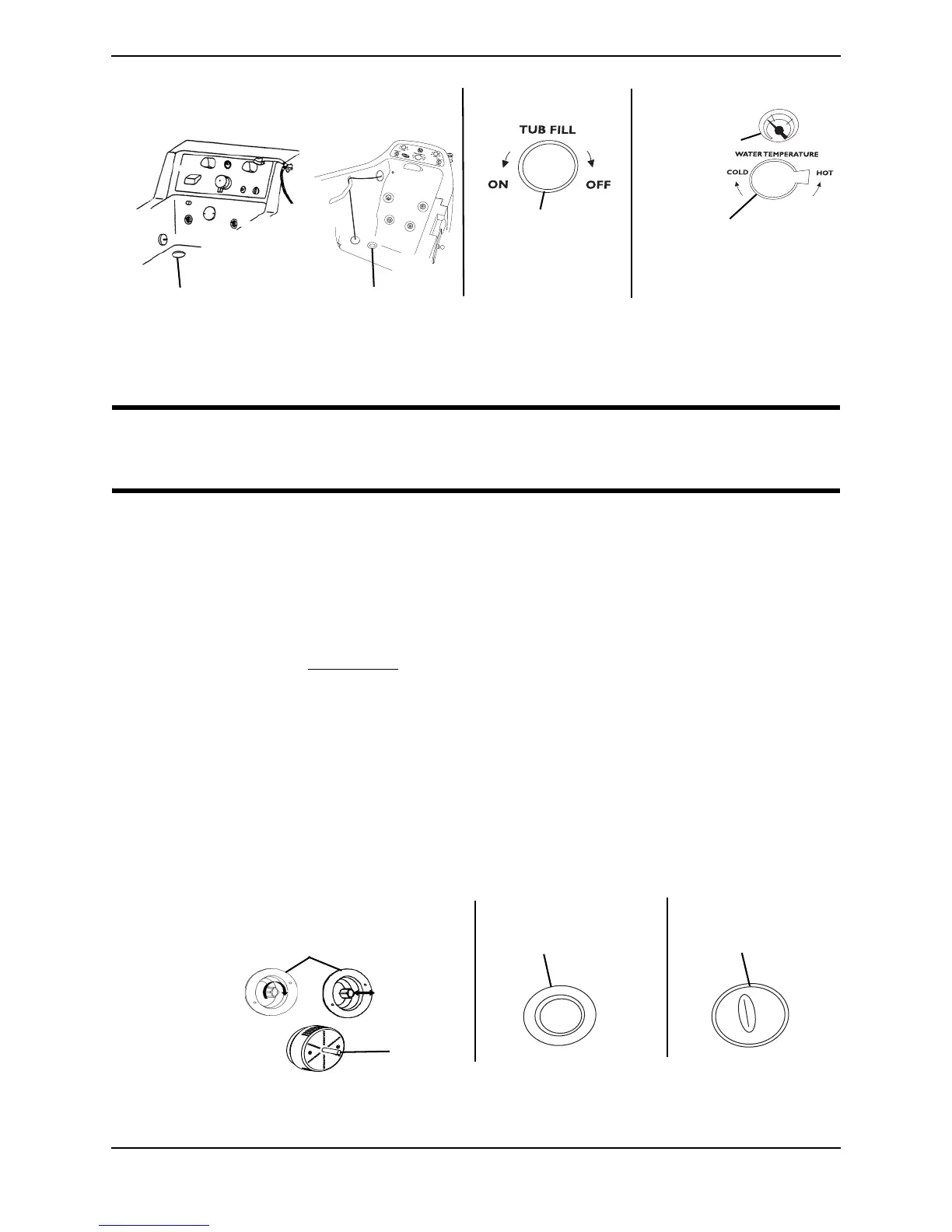

FIGURE 3.5 Filling Tub
Hydromassage
CAUTION
Before starting hydromassage, water level MUST be completely above whirlpool
jets otherwise severe damage to the motor/pump will result.
NOTE:Forthisprocedure,refertoFIGURE 3.6onpage27.
1. Closetheaeratorbyrotatingtheaeratorvalvetwoturnsclockwise.
2. Openthewhirlpoolinletbypushingtheinletplugin.
3. Openallwhirlpooljetsbypullingthecenterofthewhirlpooljetoutorrotatingthe
centercounterclockwise(Detail“A”).
4. Fillthetub.RefertoFillingTubonpage 26.
5. Afterwaterlevelcoverswhirlpooljetsandafterbathingtheresident,addInvacare
Defoamertobathwater.RefertoDefoamerbottlefordirections.
6. PushwhirlpoolOn/Off(Detail“B”)buttontostartwhirlpooljets.
7. Adjustthewhirlpoolaeratorfordesiredwateragitationbyrotatingthewhirlpool
aerator(Detail“C”).
8. Afteruse,
pushwhirlpoolOn/Offbutton(Detail“B”)tostopwhirlpooljets.
9. Draintub.
FIGURE 3.6 Hydromassage
Water
Te mp e r a t ur e
Valve
Flow Water
Thermometer
Tub Fill On/Off Valve
DETAIL “C”
DETAIL “B”
DETAIL “A”
Drain
Models 3600 and 3600XL
Model 3650
Drain
Whirlpool On/Off Button
Whirlpool Aerator
DETAIL “B”
DETAIL “C”
Push In To
Close
Plug
Tu r n Cl o c k wi s e
to Close
Whirlpool Jet
DETAIL “A”
