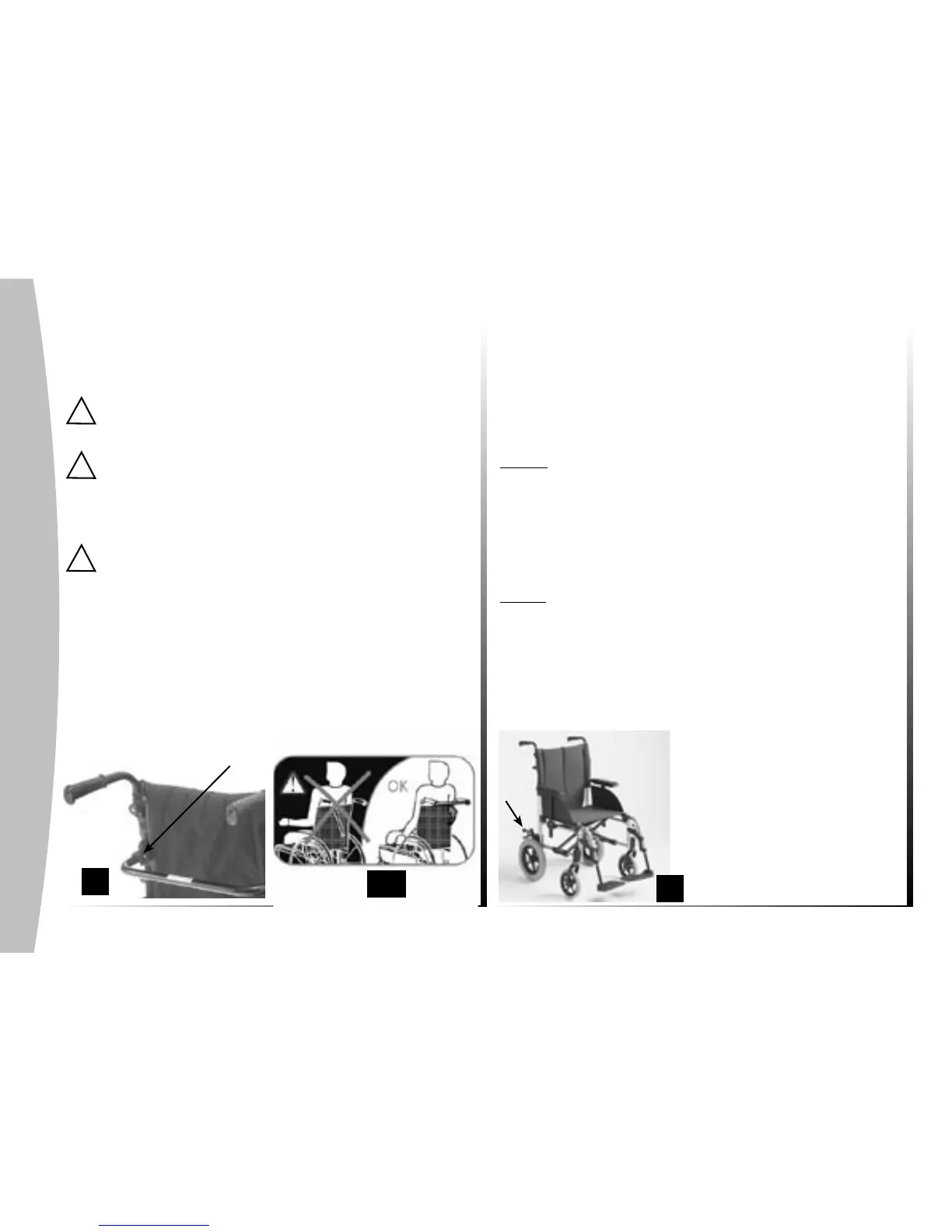

- Swing away back brace (photo 29) : Press the push pin
(C ) and fold down the back brace. Reverse the procedure to
reinstall. Note that the push pin (C ) should be locked in its
hole.
It is important to ensure that the backbrace is correctly
tted and engaged at all times when the chair is in use. (see
label on the backbrace)(photo 30).
Do not lift the chair by handling the back brace. There
is a risk to unlocked the back brace by push it up. Keep your
ngers away from movable parts to prevent injuries.
2.6.2 Propulsion options
- Transit version (photo 31) : the wheelchair is designed to be
driven only by the attendant. To facilitate sideways transfers
and save space, the wheelchair is equipped with rear wheels
of 12" (315 mm) with pneumatic or solid tyre.
Note : Transit version equipped with a reclining backrest is
always tted with anti-tippers.
The manual brakes (optional hub brake) are only accessible
to the attendant; operate the handle (A) to lock the wheel-
chair in parking position.
Note : for further information about the use of the two
types of brakes, see paragraphs 2.5.1 & 2.5.2.
C
29
30
A
31
