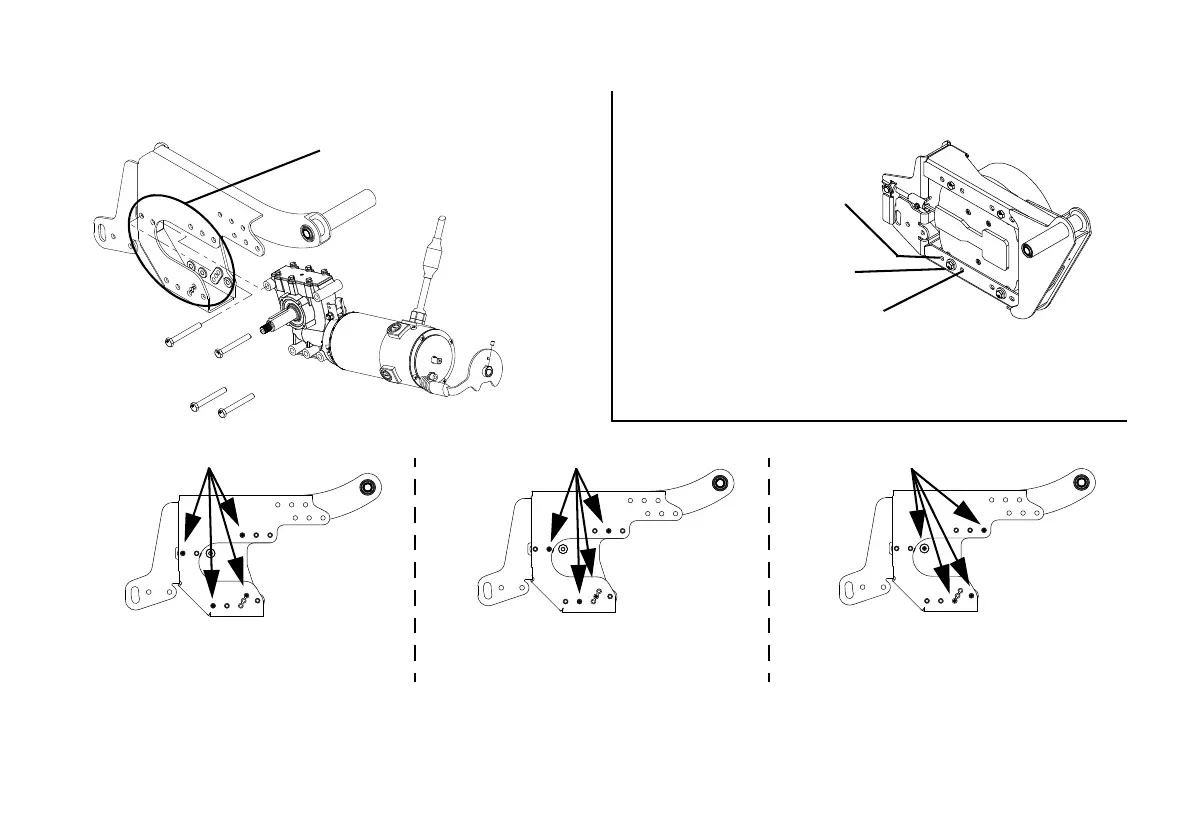

FIGURE1 Stability and Balance
Rear Position (Standard)
Approximately 65% of weight over
drive wheels
DETAIL “A” - MOTOR/GEARBOX WHEELCHAIRS
Middle Position (1 inch Forward)
Approximately 70% of weight over drive
wheels
Front Position (2 inches Forward)
Approximately 75% of weight over drive
wheels
DETAIL “B” - *GB WHEELCHAIRS
Rear Position
Approximately 65% of
weight over drive wheels
Middle Position
Approximately 70% of
weight over drive wheels
Forward Position
Not available with GB motors.

The forward mounting position is not available on
Arrow wheelchairs equipped with GB motors.
Motor Mounting Positions
Motor Mounting Positions Motor Mounting Positions Motor Mounting Positions
