Invacare Arrow - Disengaging;Engaging the Wheel locks

8 WHEELCHAIR OPERATION
Part No 1143151
71 Invacare 3G Storm Series®
8.7 Disengaging/Engaging the Wheel locks
Engaging
1. Push handle forward away from tire to engage wheel lock.
2. Repeat STEP 1 for opposite wheel.
Disengaging
1. Pull handle back toward tire to disengage wheel lock.
2. Repeat STEP 1 for opposite wheel.

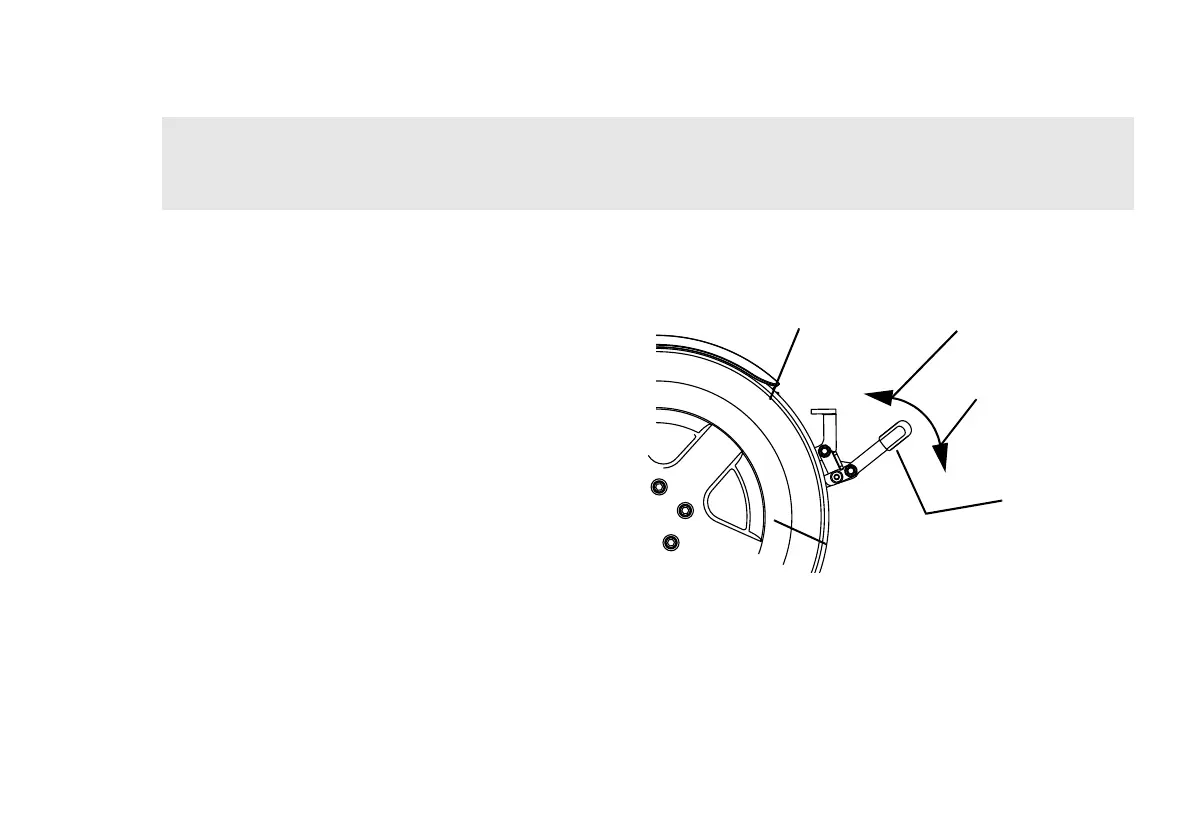

FIGURE13 Disengaging/Engaging the Wheel locks

WARNING
DO NOT use the wheel locks when the wheelchair power is on and the clutches are engaged - otherwise damage to the
wheelchair may result.

For this procedure, refer to FIGURE13.
Use the wheel locks whenever the clutches are disengaged and the wheelchair is being pushed.
ENGAGE
Wheel Lock
Handle
Wheel Lock
Drive Wheel
DISENGAGE
