Invacare Comet Series User Manual

Service
4.

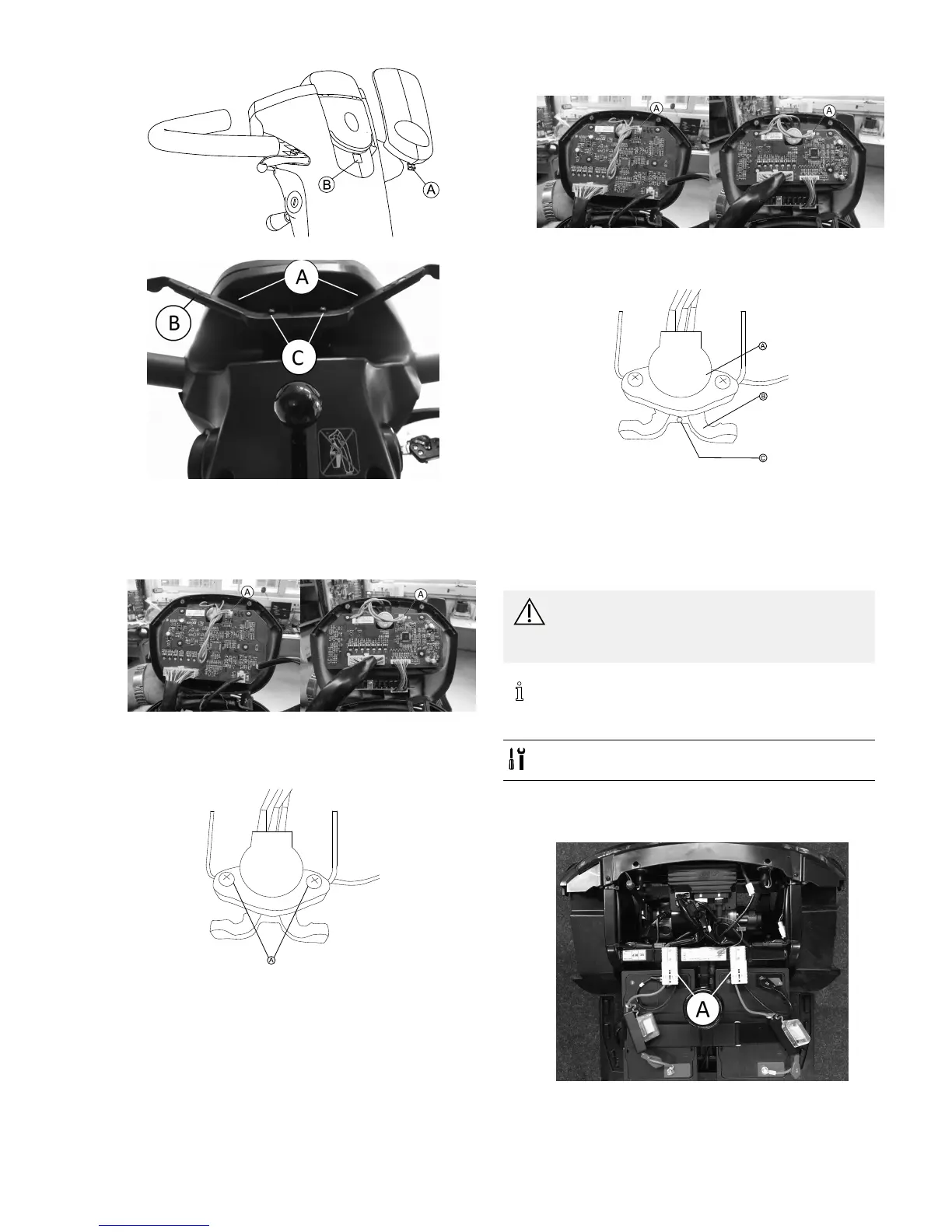

RemovetopshroudAfromsteeringcolumnB.
5.
RemovescrewsAbelowoperatingconsole.
6.Removeoperatingconsoleandfoldupwards.
7.RemovescrewsCondriveleverBandremovedrive
lever .
8.
LCD
Fig.4-3
LED
Fig.4-4
DisconnectpotentiometerplugAfromoperating
console.
9.
RemovescrewsAonpotentiometer.
10.Replacepotentiometer .
11.
LCD
Fig.4-5
LED
Fig.4-6
ReconnectpotentiometerplugAwithoperatingconsole.
12.
ConnectpotentiometerAanddrivelevermountingB:
•TightenscrewC.
13.Installpartsinreverseorder.
14.Testallfunctions(trialrun).
4.5.4Replacinglifter/liftercontrols
CAUTION!
Riskofaccident
Accidentalrollingcanleadtoaccidents.
–Securemobilitydeviceagainstrollingaway.
Whendisassembling,notepositionofsmallparts
suchasscrewsandwashers.Putsmallpartsdown
sothattheycanbereassembledinrightsequence.
•14mmwrench
•Phillipsscrewdriver
1.Securemobilitydeviceagainstrollingaway.
2.Removeseat.
3.Removeshroud.
4.
DisconnectbatteryplugsA.
1603798-B13

Invacare Comet Series Specifications

General

Ground Clearance	2.5 inches (6.35 cm)
Turning Radius	49 inches (124.5 cm)
Seat width	17 inches (43.2 cm)
Weight Capacity	300 lbs (136 kg)
Max. user weight	300 lbs (136 kg)
