PROCEDURE 2 SAFETY INSPECTION/MAINTENANCE/TROUBLESHOOTING
Lubrication Points (FIGURE 2)
1. Every six (6) months the following components
should be lubricated. Use a Teflon
®
lubricant.
(FIGURE 2).
A. Seat Lever, Connecting Pin, and Release Pin.
B. Axle of Scooter.
C. Top of Seat Adaptor.
Axle of
Scooter
STEP 1B
Teflon - Registered trademark of E.I. Du Pont
Nemours and Company.
Wheel
Bearings
STEP 1D
Black Pearl Grease - Registered trademark of
Chevron Corporation.

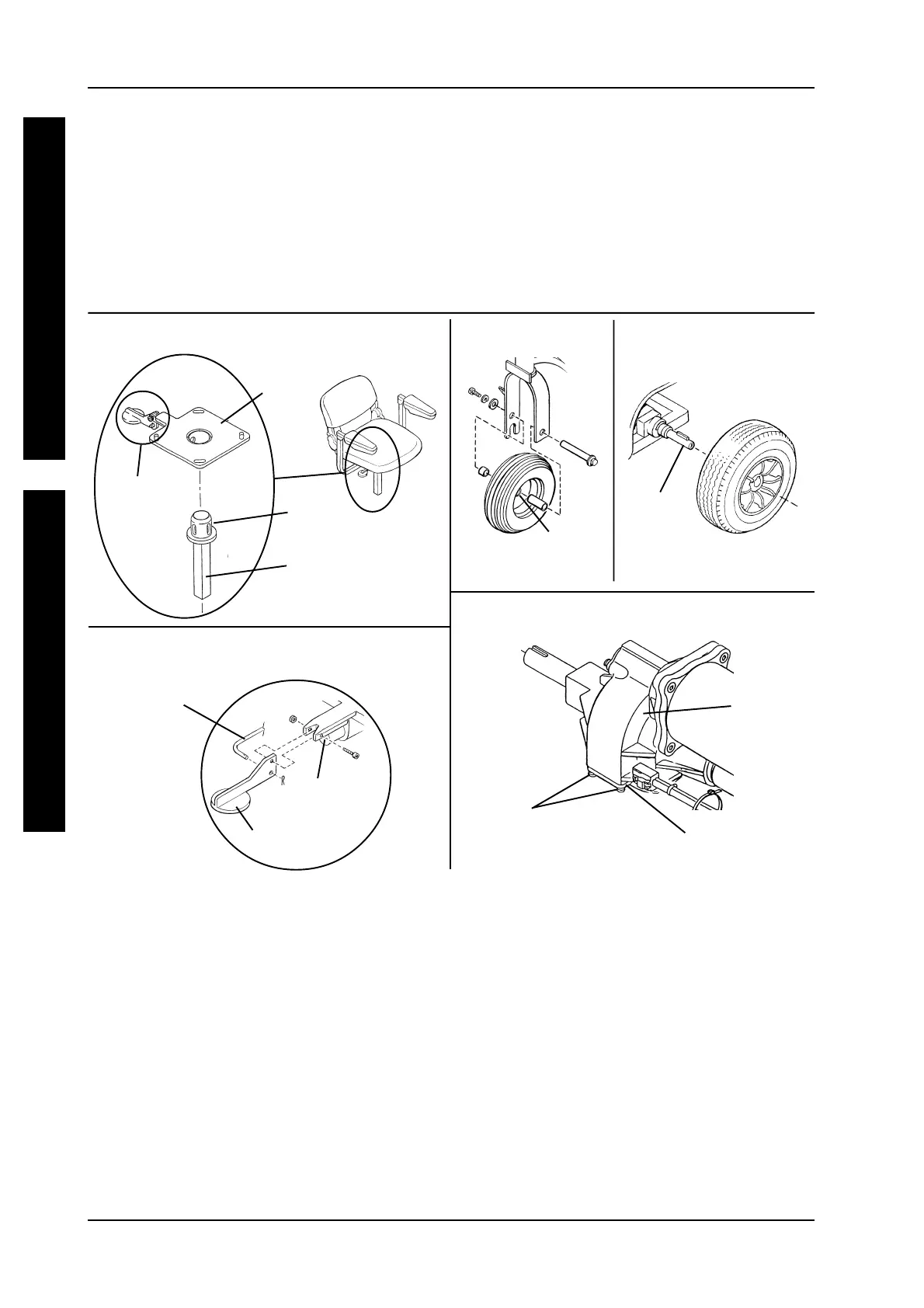

FIGURE 2 - LUBRICATION POINTS
STEP 2
Bolts
(Only Two
(2) Shown)
Transaxle
Gearbox Cover
Seat
Adaptor
Top
STEPS 1A AND 1C
See
DETAIL
"A"
DETAIL "A"
Connecting
Pin
Seat Lever
Release
Pin
Seat
Plate
D. For Models LYNX SX-3P, LYNX SX-3,
LYNX LX-3, and LYNX LX-3 wheel Bearings
of Front Wheel.
2. For all Models EXCEPT the PANTHER MX - 4:
A. Remove the four (4) bolts securing the
gearbox cover to the transaxle and remove
the gearbox cover.
B. Lubricate the gears inside the transaxle with
Black Pearl Grease
®
OR equivalent.
