This Procedure Includes the Following:
Replacing Seat Post
SEAT PROCEDURE 3
WARNING
After ANY adjustments, repair or service
and BEFORE use, make sure that all
attaching hardware is tightened securely
- otherwise injury or damage may occur.
REPLACING SEAT POST
(FIGURE 1)
WARNING
Ensure that seat is locked into the forward
position BEFORE and DURING operation
of the scooter. Otherwise, injury to the
user and/or damage to the scooter
may result.
1. Remove the seat. Refer to REMOVING/INSTALLING
THE SEAT in PROCEDURE 5 of the Owner’s
Manual, part number 1090132.
NOTE: The swivel release lever is located just beneath
the seat on the right side.
2. Pull the swivel release lever up.
3. While holding the swivel release lever in the upward
position, pull the seat post out of the seat frame.
S
E
A
T

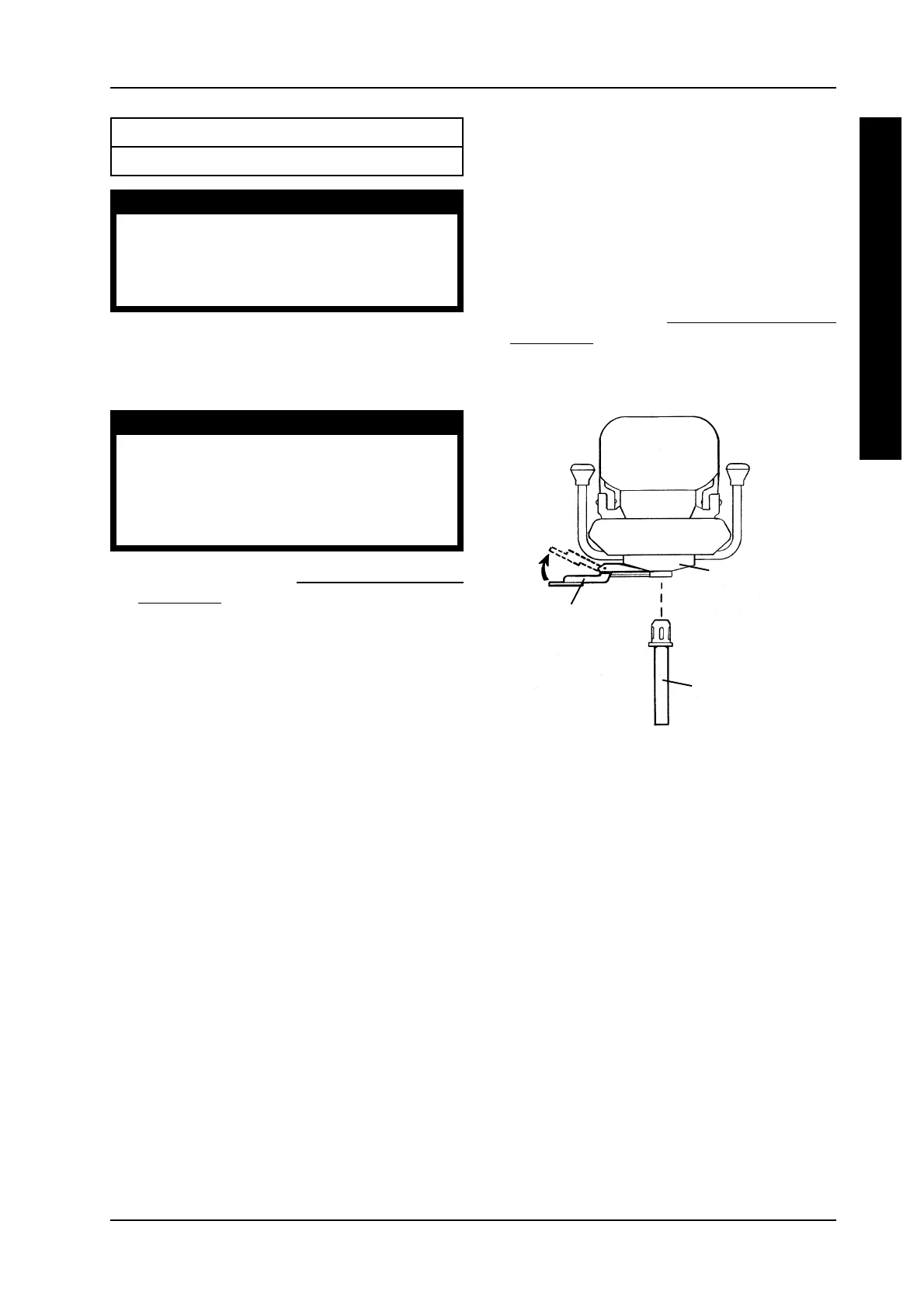

FIGURE 1 - REPLACING SEAT POST
Swivel
Release
Lever
Seat Post
Seat Frame
4. While holding the swivel release lever in the upward
position, insert the NEW seat post into the seat frame.
NOTE: The seat post locks at 90° intervals. In order to
ensure that the NEW seat post is locked into position,
it may be necessary to rotate the seat post until an
audible “click” is heard.
5. Release the swivel release lever, allowing the
NEW seat post to lock into place.
6. Reinstall the seat. Refer to
REMOVING/INSTALLING
THE SEAT in PROCEDURE 5 of the Owner’s
Manual, part number 1090132.
